428521520811

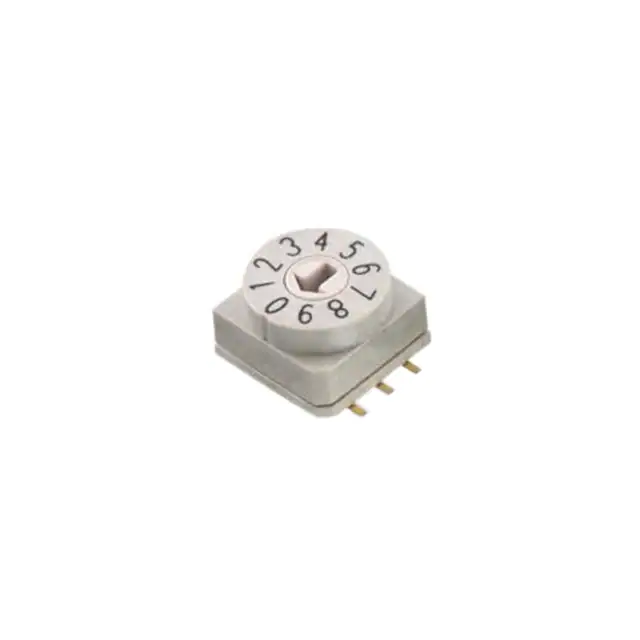

Dimensions: [mm] Recommended Land Pattern: [mm] 2,6 5,08 C 2 1 C 4 12,0 14,6 8 0,54 1,2 C 5,08 Scale - 2,5:1 9,6 ± 0,1 Code: C 1 2 4 8 6,8 6,5 2,2 Complement Code 0      0 h 0,1 ref. 10 Position C 2 q 10,0 8 1  1 C    1 2     2 3    3 4     4 5   5  6    6 7   7 8     8 9  9   4 Scale - 2,5:1 CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ICh 001.003 2021-04-06 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION WS-ROSV SMT IP67 Rotary Switch Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com ORDER CODE 428521520811 SIZE/TYPE BUSINESS UNIT STATUS PAGE 10 x 10 mm with Cross type Actuator eiCan Valid 1/7 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Material Properties: Mechanical Properties: Cover Material LCP Cover Flammability Rating Cover Color Actuator Material Actuator Flammability Rating Properties Test conditions Value Unit UL94 V-0 Electrical Life 150 mA/ 24 V (DC) 10000 Steps Grey Actuator Type Cross Type PA66 Number of Position 10 Code Complement Code UL94 V-0 Actuator Color Blue Base Material LCP Base Flammability Rating General Information: Operating Temperature UL94 V-0 Base Color Grey Contact Material Copper Alloy Terminal Plating Gold < 40 °C ; < 75 % RH Moisture Sensitivity Level (MSL) Gold Terminal Material -40 up to +85 °C Storage Conditions (in original packaging) FR4 Epoxy Resin Contact Plating Tol. 1 Washable Yes Ingress Protection Code IP67 IP67 test report available Electrical Properties: Properties Test conditions Tol. Certification: Value Unit 150 mA RoHS Approval Compliant [2011/65/EU&2015/863] REACh Approval Conform or declared [(EC)1907/2006] Rated Current Switching IR Rated Voltage Switching VR 24 V (DC) Rated Current Non-Switching IR 400 mA Halogen Free Conform [IEC 61249-2-21] Rated Voltage Non-Switching VR 24 V (DC) Halogen Free Conform [JEDEC JS709B] Contact Resistance Initial R 80 mΩ max. Contact Resistance After Life Test R 200 mΩ max. min. Insulation Resistance RISO 250 V (DC) 100 MΩ Withstanding Voltage 1 min 250 V (AC) Value Unit Tol. 700 g max. Mechanical Properties: Properties Operation Force Test conditions CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ICh 001.003 2021-04-06 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION WS-ROSV SMT IP67 Rotary Switch Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com ORDER CODE 428521520811 SIZE/TYPE BUSINESS UNIT STATUS PAGE 10 x 10 mm with Cross type Actuator eiCan Valid 2/7 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Packaging Specification - Tape: [mm] Packaging Specification - Reel: [mm] P0 D0 A K0 P2 T W3 C D1 A A B0 B P1 T1 A0 N D W1 close to center W2 T2 detail B Feeding directions End Start Cover Tape B Chip Cavity Sprocket Hole No Component min. 160mm Components No Component min. 100mm Embossment Cover Tape min. 400mm Tape Type 2a A0 (mm) typ. 13,40 B0 (mm) typ. 13,50 W (mm) ±0,3 24,00 T (mm) ref. 0,35 T1 (mm) ref. 0,10 T2 (mm) typ. 7,80 K0 (mm) typ. 7,10 P0 (mm) ±0,1 4,00 P1 (mm) ±0,1 16,00 P2 (mm) ±0,1 2,00 D0 (mm) +0,1/ -0,0 1,50 D1 (mm) min. 1,50 E1 (mm) ±0,1 1,75 E2 (mm) min. 22,25 F (mm) ±0,1 11,50 Material Polystyrene Qty. (pcs.) 600 165° - 180° Tolerance Value A (mm) ± 2,0 330,00 B (mm) min. 1,50 C (mm) min. 12,80 D (mm) min. 20,20 N (mm) min. 60,00 W1 (mm) + 2,0 24,40 W2 (mm) max. 30,40 CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ICh 001.003 2021-04-06 DIN ISO 2768-1m W3 (mm) min. 23,90 W3 (mm) max. 27,40 Material Polystyrene PROJECTION METHOD DESCRIPTION WS-ROSV SMT IP67 Rotary Switch Pull-of force Tape width 24 mm 0,1 N - 1,3 N Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com ORDER CODE 428521520811 SIZE/TYPE BUSINESS UNIT STATUS PAGE 10 x 10 mm with Cross type Actuator eiCan Valid 3/7 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Classification Reflow Profile for SMT components: Classification Reflow Soldering Profile: Profile Feature Tp tp Max. Ramp Up Rate Max. Ramp Down Rate TL Temperature Ts max tL Preheat Area Ts min TC –5°C Value Preheat Temperature Min Ts min 150 °C Preheat Temperature Max Ts max 200 °C Preheat Time ts from Ts min to Ts max ts Ramp-up Rate (TL to TP) 60 - 120 seconds 3 °C/ second max. Liquidous Temperature TL 217 °C Time tL maintained above TL tL 60 - 150 seconds Peak package body temperature Tp Tp ≤ Tc, see Table below Time within 5°C of actual peak temperature tp 20 - 30 seconds Ramp-down Rate (TP to TL) 6 °C/ second max. Time 25°C to peak temperature 8 minutes max. refer to IPC/ JEDEC J-STD-020E tS Package Classification Reflow Temperature (Tc): Volume mm³ 350-2000 Volume mm³ >2000 PB-Free Assembly | Package Thickness 260 °C < 1.6 mm 260 °C 260 °C PB-Free Assembly | Package Thickness 260 °C 1.6 mm - 2.5 mm 250 °C 245 °C PB-Free Assembly | Package Thickness 250 °C > 2.5 mm 245 °C 245 °C Properties 25 Time 25°C to Peak Time Applied cycles Volume mm³
