TECHNICAL CHARACTERISTICS
1
4,5
O 1,0
O Du0,2
SPECIFICATION
>Rating:
50mA, 12VDC
>Contact Resistance:
Initial:
100mOHM max.
After Life Test:
2OHM max.
>Insulation Resistance: min. 100MOHM at 500VDC
>Dielectric Strength:
250VAC for 1 minute
>Stroke:
0.25 + 0.2 mm / - 0.1 mm
3
2
4
6,5
MATERIAL
>Cover:
Stainless Steel
>Stem:
LCP UL 94V-0
>Frame:
LCP UL 94V-0, color Black
>Contact: Stainless Steel with silver cladding
>Terminal: Brass with tin plating
1
3
2
4
SOLDERING INFORMATION
>Terminal in THT version
>Wave 260°C 10sec. max
>Hand soldering under 350°C for 3 sec. max
3,5 ±0,2
0,3
0,5 max
1,8 3,4 ±0,15
H u 0,15
P.C.B. MOUNTING PLAN
6,5 ±0,2
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C
>Operation condition: -40°C ~ +85°C
>Compliance: Lead Free, ROHS, Reach
0,7
7,9 ±0,2
SCHEMATIC
PACKAGING INFORMATION
>Bulk
4,3
O 3,5 ±0,2
Force
Color of Stem Life cycle
430 186 xxx 716 160g ± 50gf
430 156 xxx 726 260g ± 50gf
430 156 xxx 736 360g ± 50gf
6,2
4,5
4,3
PN
Black
White
Salmon
1.000.000
200.000
200.000
-043
H ØD
4.3
3.5
-050
H ØD
5.0
3.5
-070
H ØD
7.0
3.0
-095
H ØD
9.5
-130
H ØD
3.0 13.0 3.0
6,2
Scale - 3:1
Projection
This electronic component is designed and developed with the intention for use in general
electronics equipments.
Basic material
Date
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher
safety and reliability are especially required or if there is possibility of direct damage or injury to
human body, Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical
circuits that require high safety, reliability functions or performance, the sufficient reliability
evaluation-check for the safety must be performed before by the user before usage.
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Drawn
09-09-14
Name
Jelisarow
Checked
WE
eiCan
a
REV
warning text
FILE
11-10-28
WJ
DATE
BY
CAD
EDV NO
DESCRIPTION
SwTact

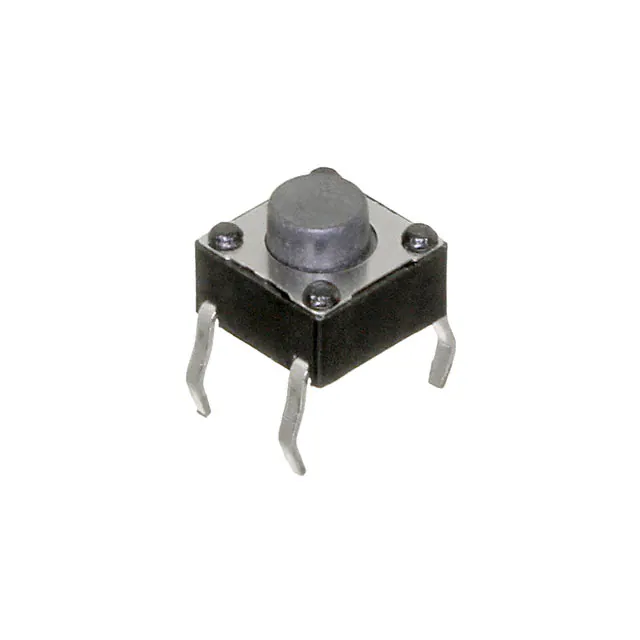

WS-TST 6x6mm Switch, THT version
Würth Elektronik
eiCan
4301x6xxx7x6.dft
Scale
Drawing.- No.
3:1
4301x6xxx7x6
Position
SIZE
A4
System :Solid Edge V20
