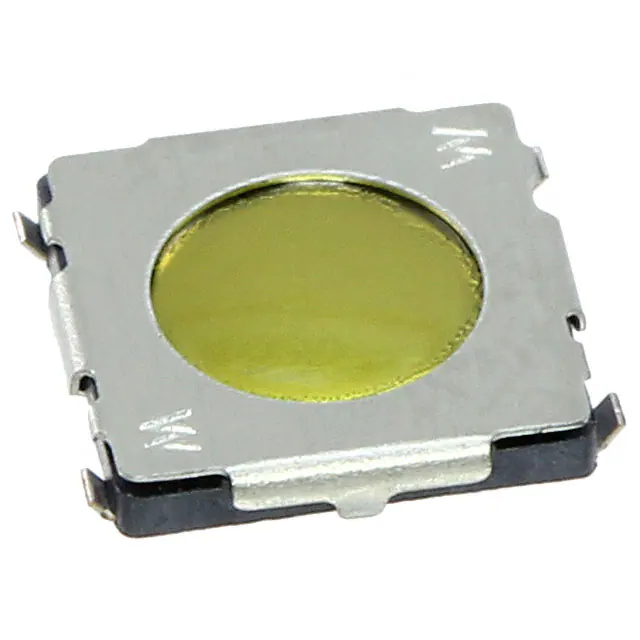

TECHNICAL CHARACTERISTICS 1,0 SPECIFICATION >Rating: 20mA, 15VDC >Contact Resistance: Initial: 100mOHM max. After Life Test: 2OHM max. >Insulation Resistance: min. 100MOHM at 500VDC >Dielectric Strength: 250VAC for 1 minute >Stroke: 0.25 +0.05 / - 0.1mm >Bounce: 10ms max. GND 4,6 5,5 4 4,3 3,1 2 1 3 GND 3,8 5,4 MATERIAL >Cover: Copper alloy >Frame: LCP UL 94V-0, color Black >Contact: Stainless Steel with silver >Terminal: Copper alloy with silver plating >Tape: Polyimide tape 0,45 P.C.B. MOUNTING PLAN 0,8 0,4 Grounded Terminal can be effective even if not soldered 0,05 ±0,07 GND0.5 ENVIRONMENTAL >Storage condition: -40°C ~ +85°C >Operation condition: -40°C ~ +85°C >Compliance: Lead Free, ROHS, Reach GND 0,5 3,7 2,5 5,1 ±0,3 4 2 PACKAGING INFORMATION >Tape & Reel 5,0 ±0,15 O 3,20 GND 5,0 ±0,15 W 3 1 3 1 4 2 SOLDERING INFORMATION >Terminal in SMD version >Reflow soldering according to JEDEC J-STD 020 Hot Air >Hand soldering under 350°C for 3 sec. max PN 431 183 008 816 431 153 008 826 GND W SCHEMATIC Force 160g ± 50gf 260g ± 50gf Color of Stem No actuator No actuator Life cycle 1.000.000 200.000 Scale - 5:1 GND This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. Projection f e remove Contact cladding 14-11-04 DaF GENERAL TOLERANCE .x = +/- 0,1 .xx = +/- 0,15 Date Drawn 10-07-13 Name Jelisarow Hsu revised MatchCode 14-07-24 AL Checked 10-07-13 d Bounce 10ms max. 14-04-11 DaF c warning text 11-10-28 WJ WE Würth Elektronik In addition, even electronic component in general electronic equipments, b Stroke Tolerance was +/- 0,15 11-08-30 WJ eiCan when used in electrical circuits that require high safety, reliability CAD eiCan a General Tolerance was +/- 0,2 11-08-26 WJ functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. REV FILE DATE BY EDV NO 4311x30088x6.dft Basic material DESCRIPTION WS-TASV 5x5mm Tact Switch with ground terminal, J-Bend SMD version Scale 5:1 Position Drawing.- No. 4311x30088x6 SIZE A4 System :Solid Edge V20
