SPECIFICATION
>Rating:
50mA, 12VDC
>Contact Resistance:
Initial:
100mOHM max.
After Life Test:
2OHM max.
>Insulation Resistance: min. 100MOHM at 500VDC
>Dielectric Strength:
500VAC for 1 minute
>Stroke:
0.3 ± 0.1 mm
5,08
O 1,0
O 1,2
TECHNICAL CHARACTERISTICS
5,08
10,16
MATERIAL
>Diffuser plate:
>Actuator:
>Frame:
>Contact:
>Terminal:
>Rubber:
P.C.B. MOUNTING PLAN
8,2
12,0
4,05
3,3
0,9
0,8
SOLDERING INFORMATION
>Terminal in THT version
>Wave soldering 260°C 10 sec. max.
>Hand soldering under 350°C for 3 sec. max
Switch
Polarity Mark
(Cathode)
A
5,08
B
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C, 60% RH max.
>Operation condition: -40°C ~ +85°C
>Compliance:
ROHS, Reach
0,8
5,08
10,16
PC UL HB
PA66 UL HB
PA66 UL HB, color Black
Stainless Steel with Ag
Brass with Ag
Silicone
CIRCUIT DIAGRAM
11,0
12,0
HANDLING ADVISE
>ESD prevention methods need to be applicated for manual handling
and processing by machinery
>Resistors for protection are obligator
PACKAGING INFORMATION
>ESD Tray
LED SCHEMATIC
PN
4
3
Scale - 2:1
12-09-21
Name
Jelisarow
Checked
WE
eiCan
CAD
FILE
DATE
BY
EDV NO
220g ± 50gf
220g ± 50gf
220g ± 50gf
220g ± 50gf
Color of LED
Life cycle
Red
Green
Blue
Yellow
100.000
100.000
100.000
100.000
Basic material
Date
Drawn
REV
440 RS670 82622
440 GS670 82622
440 BS670 82622
440 YS670 82622
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Projection
This electronic component is designed and developed with the intention for use in general electronics
equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher
safety and reliability are especially required or if there is possibility of direct damage or injury to
human body, Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical
circuits that require high safety, reliability functions or performance, the sufficient reliability
evaluation-check for the safety must be performed before by the user before usage.
Force
DESCRIPTION
SwTLT

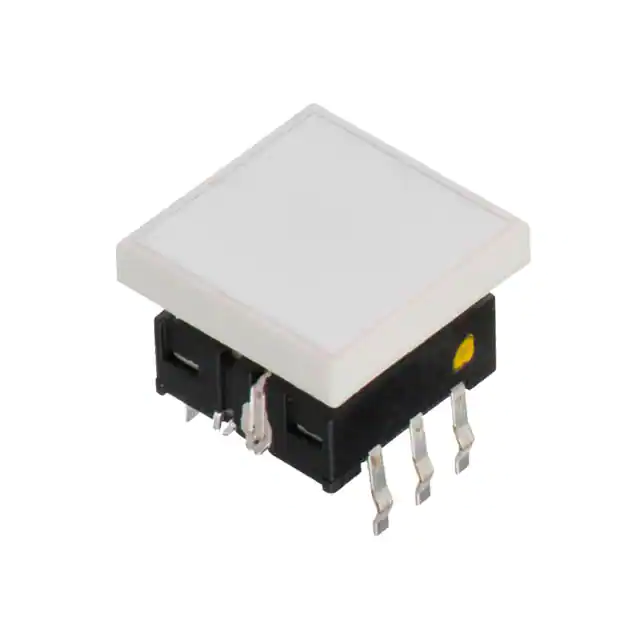

WS-TLT 12x12mm Tact Switch with integrated LED, THT version
Würth Elektronik
eiCan
440xx67082622.dft
Scale
Drawing.- No.
2:1
440xx67082622
Position
SIZE
A4
System :Solid Edge V20
item
1
2
3
4
5
6
7
8
9
10
11
Emitting color
Order code
unit
Peak wavelength typ.
nm
Dominant Wave length
@IF=20mA
typ.nm
spectral Line Half-width
typ.nm
@IF=20mA
Capacitance
VF=0V;f=1MHZ
typ.pF
Forward voltage
typ. V
@IF=20mA
max.V
Reverse current
uA
@VR=5V
ESD
V
Viewing Angle
º
@20mA 2θ 50% typ
Luminous intensity
min. mcd
@IF=20mA
typ. mcd
Material
lens type
HANDLING ADVISE
Yellow
YS
Red
RS
bright green
VS
green
GS
Blue
BS
590
650
574
520
468
1) The solder profile has to be complied with according to the technical reflow /or wave
soldering specification, otherwise no warranty will be sustained
590
630
567
525
470
2) All products are supposed to be used before the end of the period of 12 months
based on the product date-code, if not 100% solderability can't be warranted
20
28
20
35
21
20
2
2,5
35
1,95
2,5
15
2,1
2,5
100
3,2
4
100
3,2
4
10
2000
10
2000
10
2000
10
1000
10
1000
145
145
145
80
180
AIGaInP
water clear
120
220
AIGaInP
water clear
145
20
50
AIGaInP
water clear
80
150
InGaN
water clear
3) Violation of the technical product specifications such as exceeding the absolute
maximum ratings will be result in the loss of warranty
4) It's also recommended to return the products into the original packaging
5) ESD prevention methods need to be applicated for manual handling and processing
by machinery
6) Resistors for protection are obligatory
145
20
50
InGaN
water clear
Absolute Maximun Ratings (Ambient Temperature 25C )
Properties
Power Dissipation
Peak Forward current
continuous Forward current
Reverse voltage
ESD Threshold / HBM
Blue & green
Red
120
100
30
5
1000
yellow
75
185
30
5
2000
bright green
75
175
30
5
2000
75
150
30
5
2000
Unit
mW
mA
mA
V
V
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Projection
This electronic component is designed and developed with the intention for use in general
electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher
safety and reliability are especially required or if there is possibility of direct damage or injury to
human body, Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical
circuits that require high safety, reliability functions or performance, the sufficient reliability
evaluation-check for the safety must be performed before by the user before usage.
Basic material
Date
Drawn
12-09-21
Name
Jelisarow
Checked
WE
eiCan
CAD
REV
FILE
DATE
BY
EDV NO
DESCRIPTION
SwTLT
WS-TLT 12x12mm Tact Switch with integrated LED, THT version
Würth Elektronik
eiCan
440xx67082622.dft
Scale
Drawing.- No.
2:1
440xx67082622
Position
SIZE
A4
System :Solid Edge V20
