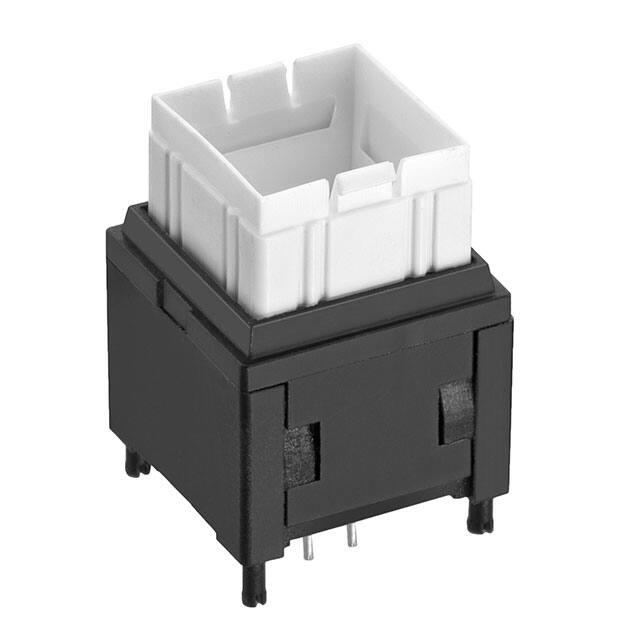

465RG11172501

Dimensions: [mm] Recommended Hole Pattern: [mm] A 12,7 7,62 L1 LC L2 1 5,08 4,5 12,7 2x O 0,8 3x O 0,7 detail A 4,5 12,7 O 0,5 4xO1,3 2 5,08 7,62 12,7 4x O 1,3 P.C.B Layout 11,5 3,6 2,6 1,8 19,5 Schematic: 6 3 2,2 11,5 8 Scale - 1:1 0,5 0,4 q 15 Circuit Diagram LED Schematic Scale - 1,3:1 CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 1/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Material Properties: Electrical Properties: Actuator Material POM Actuator Flammability Rating Properties UL94 HB Actuator Color White Actuator Fixture Material PA66 Actuator Fixture Flammability Rating UL94 HB Actuator Fixture Color Black Frame Material PA66 Frame Flammability Rating Value Unit Tol. Contact Resistance Initial R Test conditions 200 mΩ max. Contact Resistance After Life Test R 300 mΩ max. min. Insulation Resistance RISO 500 V (DC) 100 MΩ Withstanding Voltage 1 min 500 V (AC) 10 ms Bounce max. Mechanical Properties: UL94 HB Frame Color Black Properties Stationary Board PA66 Operation Force Electrical Life 1) Pre-travel 2.7 mm ±0.3mm Total travel 4.5 mm ±0.3mm Stationary Board Flammability Rating UL94 HB Stationary Board Color Black Stationary Contact Material Copper Alloy Stationary Contact Plating Gold Moveable Contact Material Copper Alloy Moveable Contact Plating Gold Spring Material Copper Alloy Terminal Plating Tin LED Terminal Material Copper Alloy LED Terminal Plating Tin Tol. 200 g ±80g 1000000 Cycles momentary Actuation Feedback non-tactile Schematic SPST Cycle - return to the original position General Information: FR4 Epoxy Resin Terminal Material Unit Function of Push Button 1) Carbon Steel PCB Material of LED Value Operating Temperature -40 up to +85 °C Storage Conditions (in original packaging) < 40 °C ; < 75 % RH Moisture Sensitivity Level (MSL) 1 Optical Properties: Electrical Properties: Properties Test conditions Value Unit Rated Current IR 100 mA Rated Voltage VR 12 V (DC) Tol. Chip Technology AlGaInP + InGan Emitting Color Red & Green Lens Type Waterclear CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 2/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. LED Electrical & Optical Properties: Properties Test conditions Peak Wavelength (Red) λPeak R 20 mA Dominant Wavelength (Red) λDom R 20 mA Luminous Intensity (Red) IV R 20 mA Forward Voltage (Red) VF R 20 mA Spectral Bandwidth (Red) Δλ R Certification: Value min. typ. max. 630 280 Unit nm 625 nm 350 mcd 2.1 2.4 V 20 mA 15 nm Peak Wavelength (Green) λPeak G 20 mA 530 nm Dominant Wavelength (Green) λDom G 20 mA 525 nm Luminous Intensity (Green) IV G 20 mA Forward Voltage (Green) VF G 20 mA 3.2 Spectral Bandwidth (Green) Δλ G 20 mA 15 nm Reverse Current IREV 5V 10 µA 120 ° Viewing Angle Phi 0° 600 2θ50% 20 mA 700 RoHS Approval Compliant [2011/65/EU&2015/863] REACh Approval Conform or declared [(EC)1907/2006] Halogen Free Conform [IEC 61249-2-21] Packaging Properties: Packaging ESD Tray Packaging Unit 64 mcd 3.5 V Absolute Maximum Ratings (Ambient Temperature 25°C): Properties Value Unit Power Dissipation (Red) PDiss R Test conditions 120 mW Power Dissipation (Green) PDiss G 105 mW Peak Forward Current (Red) IPF R duty/ 10 @ 1 kHz 100 mA Peak Forward Current (Green) IPF G duty/ 10 @ 1 kHz 100 mA Continuous Forward Current Red (Value) IF R 30 mA Continuous Forward Current Green (Value) IF G 50 mA Reverse Voltage VREV 5 V VESD HBM 2000 V ESD Threshold/ Human Body Model CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 3/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Packaging Specification - Tray: [mm] Packaging Specification - Tray: [mm] A W W1 C W Cover W2 Tray C L2 A C L L1 H H L Tolerance Value L (mm) typ. 340,00 L1 (mm) typ. 288,40 L2 (mm) typ. 43,63 CL (mm) typ. 34,50 W (mm) typ. 210,00 W1 (mm) typ. 175,00 W2 (mm) typ. 25,00 CW (mm) typ. 22,50 H (mm) typ. 16,00 CH (mm) typ. 15,00 Qty. (pcs.) Material 64 PET CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 4/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. H C Packaging Specification - Carton: [mm] L C W Tolerance Value C LC (mm) WC (mm) HC (mm) No. of Tray (pcs.) Qty. (pcs.) Material typ. 442,00 typ. 362,00 typ. 290 30 1920 Paper CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 5/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Classification Wave Soldering Profile: Classification Wave Soldering Profile: Profile Feature tp Tp Preheat Temperature Min Preheat Temperature Typical First Wave Second Wave Preheat Temperature Max Sn-Pb Assembly 100 °C 100 °C Ts typical 120 °C 120 °C Ts max 130 °C 130 °C ts 70 seconds 70 seconds Ramp-up Rate ΔT 150 °C max. 150 °C max. Peak Temperature Tp 250 °C - 260 °C 235 °C - 260 °C Time of actual peak temperature tp max. 10 seconds max. 5 seconds each wave max. 10 seconds max. 5 seconds each wave Preheat Time ts from Ts min to Ts max Temperature Pb-Free Assembly Ts min Ts max Ts typical Ramp-down Rate, Min ~ 2 K/ second ~ 2 K/ second Ramp-down Rate, Typical ~ 3.5 K/ second ~ 3.5 K/ second Ts min Ramp-down Rate, Max ~ 5 K/ second ~ 5 K/ second Time 25 °C to 25 °C 4 minutes 4 minutes refer to EN61760-1:2006 Preheat area Cool down area Time typical temperature procedure min temperature procedure max temperature procedure CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 6/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Cautions and Warnings: The following conditions apply to all goods within the product series of Illuminated switch of Würth Elektronik eiSos GmbH & Co. KG: General: • This mechanical component is designed and manufactured for use in general electronic equipment. • Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network, etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury. • Mechanical components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. • The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the component may be damaged or dissolved. • Do not drop or impact the components, the components may be damaged. • Prevent any damage or scratches on the switch, especially on the actuator. • Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektronik’s specifications, for its validity and sustainability over time. • The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products also apply to customer specific products. Product specific: Soldering: • • • • The solder profile must comply with the technical product specifications. All other profiles will void the warranty. All other soldering methods are at the customers’ own risk. Please keep our switch at delivery original position before and during the soldering process. Design the right angle part with consideration of the wave soldering process so that the parts will not touch the soldering wave during the soldering process or protect the switch part with cover fixture. Melt of the switch might cause malfunction. Cleaning and Washing: • If a series is washable, the general information section in the datasheet will contain the washability guidelines. Should there be no information regarding washability, the product has not been constructed to withstand a washing process. Washing agents used during the production to clean the customer application might damage or change the characteristics of the component, body, pins and/or termination. Washing agents may have a negative effect on the long-term functionality of the product. If the parts are washable, hermetic: • Cleaning agents used to clean the customers’ applications, may damage or change the characteristics of the component, body, pins and termination. • Please do not immerse any washable products into water or cleaning agents or put them in locations exposed to water completely. • Do not clean washable series immediately after soldering. The cleaning agent may be absorbed into the switch through respiration while the switch cools. • Using a brush during the cleaning process could deform function relevant areas. Therefore, we do not recommend using a brush during the PCB cleaning process. Potting and Coating: • If the product is potted in the customer application, the potting material might shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the component. Expansion could damage the component. We recommend a manual inspection after potting or coating to avoid these effects. Storage Conditions: • A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment. • Do not expose the components into direct sunlight. • The storage conditions in the original packaging are defined according to DIN EN 61760-2. • For a moisture sensitive component, the storage condition in the original packaging is defined according to IPC/JEDEC-J-STD-033. It is also recommended to return the component to the original moisture proof bag and reseal the moisture proof bag again. • The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components. Packaging: • The packaging specifications apply only to purchase orders comprising whole packaging units. If the ordered quantity exceeds or is lower than the specified packaging unit, packaging in accordance with the packaging specifications cannot be ensured. Handling: • In the case a product requires particular handling precautions in addition to the general recommendations mentioned here below, these will appear on the product datasheet. • Do not repeatedly operate the switch with excessive force. It may damage or deform the switch and may result in malfunction. • Violation of the technical product specifications, such as exceeding the nominal rated current, will void the warranty. • The switch shall be set up in such a way that the actuator will operate in a straight vertical line. A decrease in the lifetime of the switch may result if the actuator is pressed off-center or from an angle. This might cause function errors or broken actuators. CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 7/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. • In order to avoid malfunction of the switches, stacking of PCB’s is not recommended. • Certain optoelectronic component surfaces consist of soft material. Pressure on the top surface has to be handled carefully to prevent negative influence to the function and reliability of the optoelectronic components. • ESD prevention methods need to be applied for manual handling and processing by machinery. • Resistors for protection are obligatory. • Our caps are designed with notches to avoid the fall out afterwards. The cap shall be vertically downwards inserted in the actuator. By hearing a crispy sound, the cap is latched. If the cap shall be removed, no sharp tools are recommended, since they can damage the switch or the cap. • The accessory (e.g. cap) is not high temperature resistant material. Please assemble it after the soldering process. • The temperature rise of the component must be taken into consideration. The operating temperature is comprised of ambient temperature and temperature rise of the component.The operating temperature of the component shall not exceed the maximum temperature specified. Technical specification: • The standard deliveries include values in the range and limitation as defined in the Electrical & Optical Properties specified in the datasheet. • On each reel, only one bin is sorted and taped. The bin is defined on intensity, chromaticity coordinate or wavelength and forward voltage. • In order to ensure highest availability, the reel binning of standard deliveries can vary. A single bin cannot be ordered. If a particular bin sorting is needed, contact us before placing your order to clarify the lead time, MOQ and pricing. These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable. However, no responsibility is assumed for inaccuracies or incompleteness. CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 8/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Important Notes 6. Product Life Cycle The following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG: Due to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products. 1. General Customer Responsibility Some goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not. 2. Customer Responsibility related to Specific, in particular Safety-Relevant Applications It has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications. In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at www.we-online.com. 7. Property Rights All the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used. 8. General Terms and Conditions Unless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at www.we-online.com. 3. Best Care and Attention Any product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty. 4. Customer Support for Product Specifications Some products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter. 5. Product R&D Due to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected. CHECKED REVISION DATE (YYYY-MM-DD) GENERAL TOLERANCE ELi 002.000 2021-07-21 DIN ISO 2768-1m PROJECTION METHOD DESCRIPTION Würth Elektronik eiSos GmbH & Co. KG EMC & Inductive Solutions Max-Eyth-Str. 1 74638 Waldenburg Germany Tel. +49 (0) 79 42 945 - 0 www.we-online.com eiSos@we-online.com WS-PBTL THT Illuminated Push Button Switch ORDER CODE 465RG11172501 SIZE/TYPE BUSINESS UNIT STATUS PAGE 15 x 15mm eiCan Valid 9/9 This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
