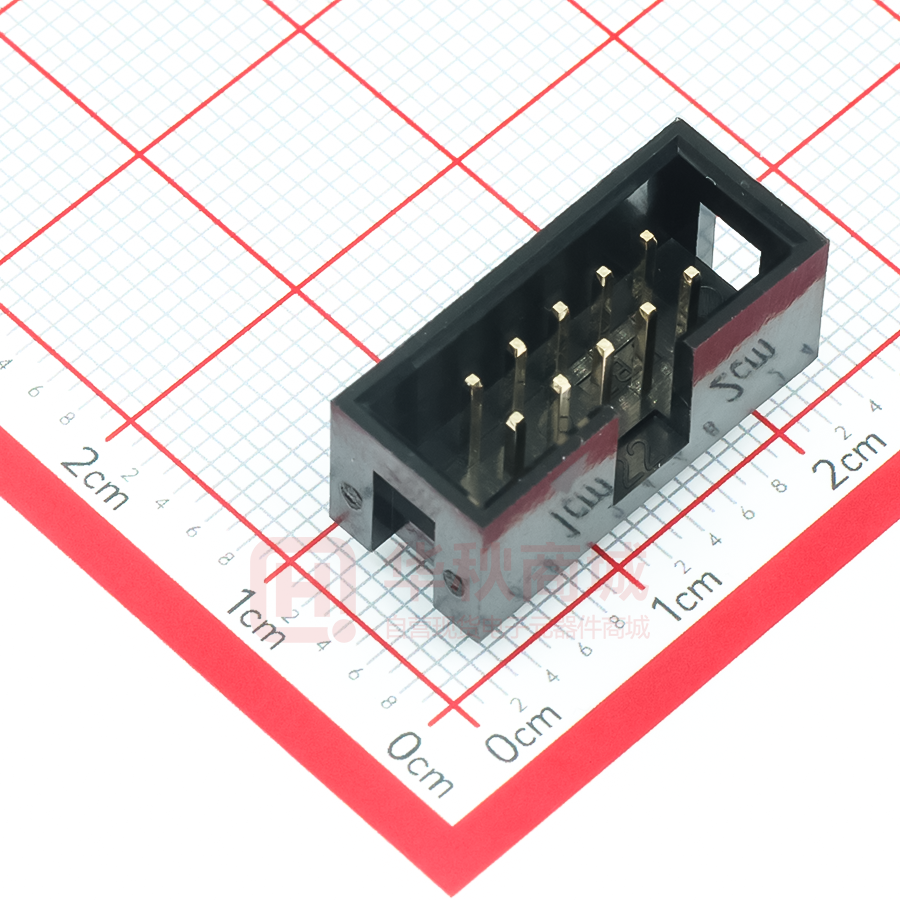

61201021621

1 2 3 4 5 TECHNICAL CHARACTERISTICS MATERIAL INSULATOR: PBT COLOR: BLACK CONTACT MATERIAL: COPPER ALLOY CONTACT TYPE: STAMPED CONTACT PLATING: GOLD QUALITY CLASS: 3 AS PER CECC 75 301-802 PITCH: 2.54MM A ENVIRONMENTAL OPERATING TEMPERATURE: -40 UP TO 125°C FLAMABILITY RATING: UL94-V0 COMPLIANCE: LEAD FREE AND ROHS ELECTRICAL CURRENT RATING: 3 A MAX WORKING VOLTAGE: 250 VAC INSULATOR RESISTANCE: >1000 MOHM DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MN CONTACT RESISTANCE: 20 mOHM MAX B STANDARD CERTIFIED: E323964 SOLDERING JEDEC LEAD FREE WAVE SOLDERING PROCESS PACKAGING TRAY DIMENSION A = 2.54 x (NB. PIN / 2 -1) B = 2.54 x (NB. PIN / 2) +7.66 C = 2.54 x (NB. PIN / 2 -1) +7.88 Last C 61203921621: pin 20 removed NOTES: No. Of Positions 50-64 With 3 Keys All Oher Pin With 1 Key RoHS Compliant PROJECTION: GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 APPROVAL: FBr UNIT: MM DESCRIPTION: 2.54MM MALE BOX HEADER SIZE WERI PART NO: 612 0xx 216 21 A4 SCALE: H 06-APR-16 DRAWING AK SHEET: 1/3 REV DATE FILE BY DRAW: PEARL D 1 2 3 4 5 A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: GMo B DESCRIPTION: 2.54MM MALE BOX HEADER SIZE WERI PART NO: 612 0xx 216 21 A4 SCALE: A REV UNIT: MM SHEET: 2/3 DATE FILE BY DRAW: PEARL D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 3/3 REV DATE FILE BY DRAW: QL D
