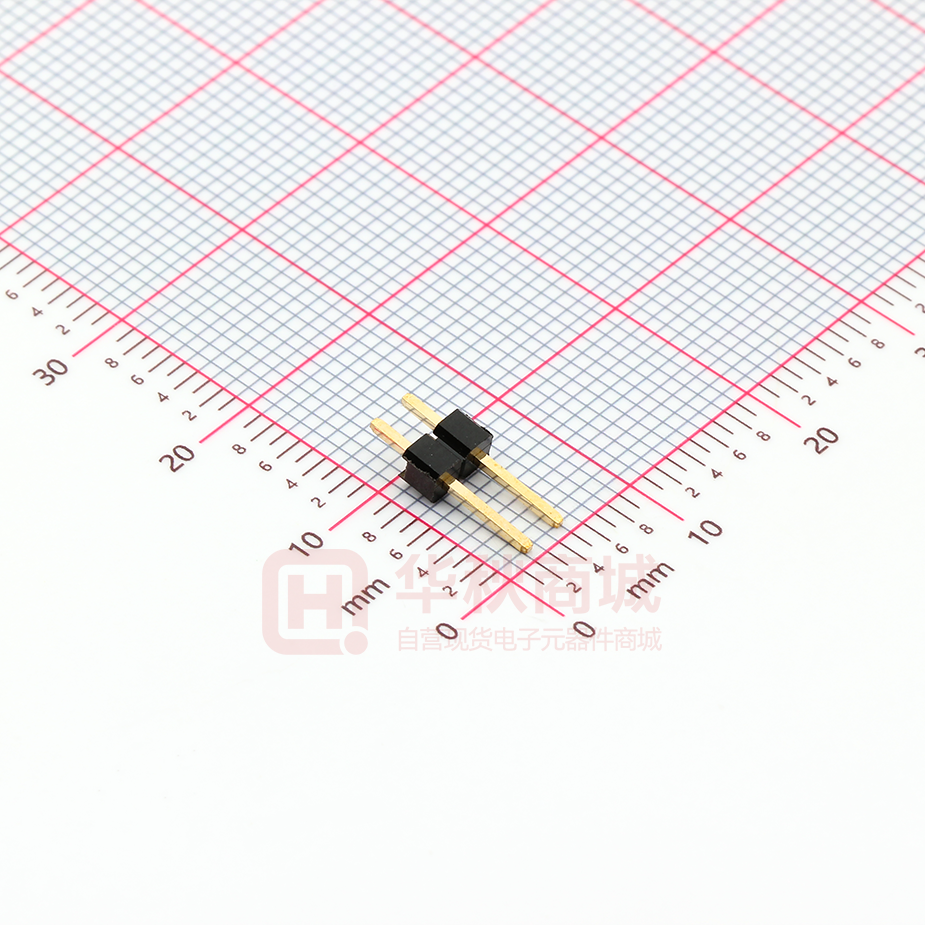

61300211121

1 2 3 4 5 TECHNICAL CHARACTERISTICS PCB LAYOUT - COMPONENT VIEW MATERIAL INSULATOR: PA6T FLAMABILITY RATING: UL94-V0 COLOR: BLACK CONTACT MATERIAL: COPPER ALLOY CONTACT TYPE: STAMPED CONTACT PLATING: GOLD QUALITY CLASS: 3 AS PER CECC 75 301-802 PITCH: 2.54MM A ENVIRONMENTAL OPERATING TEMPERATURE: -40 UP TO 105°C COMPLIANCE: LEAD FREE AND ROHS ELECTRICAL CURRENT RATING: 3A WORKING VOLTAGE: 250V AC INSULATOR RESISTANCE: >1000 MOHM DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MN CONTACT RESISTANCE: 20 mOHM MAX B STANDARD CERTIFIED: E323964 SOLDERING JEDEC LEAD FREE WAVE SOLDERING PROCESS PACKAGING BAG DIMENSION A = 2.54 x (NB PINS -1) B = 2.54 x NB PINS C RoHS Compliant PROJECTION: GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 J 31-JUL-15 PACKAGING AK I 16-JUN-15 PCN PA6T AK H 22-MAR-12 TKP GG SHEET: 1/3 REV DATE FILE BY DRAW: PEARL APPROVAL: GMo UNIT: MM DESCRIPTION: 2.54MM PIN HEADER SIZE WERI PART NO: 613 0xx 111 21 A4 SCALE: D 1 2 3 4 5 A B C RoHS Compliant PROJECTION: G GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 F E D C APPROVAL: GMo B DESCRIPTION: 2.54MM PIN HEADER SIZE WERI PART NO: 613 0xx 111 21 A4 SCALE: A REV UNIT: MM SHEET: 2/3 PDF DATE FILE BY DRAW: PEARL D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 3/3 REV DATE FILE BY DRAW: QL D
