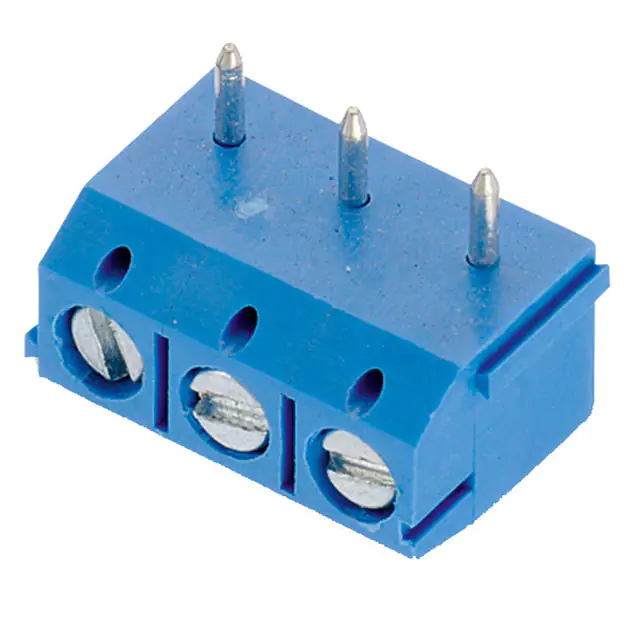

691104700002

1 2 3 4 5 TECHNICAL CHARACTERISTICS MATERIAL INSULATOR: PA 66 FLAMABILITY RATING: UL94-V0 COLOR: BLUE METAL HOUSING: BRASS (CuZn) TERMINAL SCREW SLOT TYPE: "-" WIRE GUARD: STAINLESS STEEL SOLDER TAIL PLATING: TIN A ENVIRONMENTAL OPERATING TEMPERATURE: -40 UP TO 105°C COMPLIANCE: LEAD FREE AND ROHS ELECTRICAL CURRENT RATING: WORKING VOLTAGE: WITHSTANDING VOLTAGE: CONTACT RESISTANCE: cULus 16A 250VAC 1.5KV 20 mOhm max STANDARD CERTIFIED E315414 MECHANICAL SOLID WIRE: STRANDED WIRE: TORQUE: B 22-14 AWG / 0.326-2,08 MM² 22-14 AWG / 0.326-2,08 MM² 2.6 Lb-In / 0.3 Nm WIRE STRIPE LENGTH: 5-6 MM SCREW: M2.6 PITCH: 5.0 MM SOLDERING JEDEC LEAD FREE WAVE PROCESS ONLY PACKAGING BOX C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C 07-SEP-10 PACKAGING JC DESCRIPTION: SERIE 1047 - 5.0MM VERTICAL ENTRY MODULAR WITH 09-OCT-09 STANDARD JP SCALE: PRESSURE CLAMP - WR-TBL SIZE B A 30-OCT-08 PDF JP SHEET: 1/3 WERI PART NO: 691 104 700 0xx A4 REV DATE FILE BY DRAW: MARVIN APPROVAL: FBr UNIT: MM D 1 2 3 4 5 A 900 600 450 360 300 240 220 185 165 160 150 3600 2400 1800 1440 1200 960 880 740 660 640 600 10800 7200 5400 4320 3600 2880 2640 2220 1980 1920 1800 20.09 20.09 20.09 20.09 20.09 18.75 19.64 18.58 18.41 19.64 20.09 22.19 22.19 22.19 22.19 22.19 20.85 21.74 20.68 20.51 21.74 22.19 B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: FBr B A REV DATE FILE BY UNIT: MM SCALE: DESCRIPTION: SERIE 1047 - 5.0MM VERTICAL ENTRY MODULAR WITH PRESSURE CLAMP - WR-TBL SHEET: 2/3 WERI PART NO: 691 104 700 0xx DRAW: PEARL SIZE A4 D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 3/3 REV DATE FILE BY DRAW: QL D
