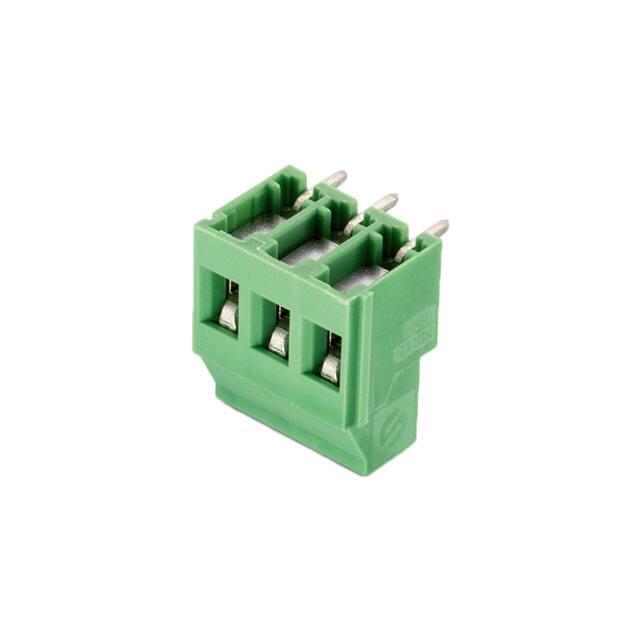

691253500003

1 2 3 4 5 B ±0,3 TECHNICAL CHARACTERISTICS A MATERIAL INSULATOR: PA6/66 FLAMMABILITY RATING: UL94V0 COLOR: GREEN METAL HOUSING: COPPER ALLOY / Ni+Sn TERMINAL SCREW: STEEL / Zn WIRE GUARD: COPPER ALLOY / Ni+Sn Ø ENVIRONMENTAL OPERATING TEMPERATURE: -30°C UP TO +120°C COMPLIANCE: LEAD FREE AND ROHS ELECTRICAL UL CURRENT RATING: 16A WORKING VOLTAGE: 300VAC WITHSTANDING VOLTAGE: 1,6KV CONTACT RESISTANCE: 20 mΩ MAX A ±0,2 PCB LAYOUT - COMPONENT VIEW A ±0,2 STANDARD us CERTIFIED: E150931 CERTIFIED: 40021392 c MECHANICAL SOLID WIRE: STRANDED WIRE: TORQUE: VDE 24A 450VAC 2,5KV B CAT. N°: MRT5 (2) TYPE: MRT5 30-12 AWG / 0,05-3,31 mm² 30-12 AWG / 0,05-3,31 mm² 5Lb.In / 0,5 Nm WIRE STRIPE LENGTH: 6 mm SCREW: M3 PITCH: 5,08 mm A = (nb. pin-1) x pitch B = (nb. pin x pitch) SOLDERING JEDEC LEAD FREE WAVE SOLDERING PACKAGING BOX C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE ±0,1 E D C APPROVAL: QL B SCALE: DESCRIPTION: SERIE 2535 - 5.08 MM - VERTICAL CABLE ENTRY WITH RISING CAGE CLAMP - WR-TBL WERI PART NO: 691 253 500 0xx UNIT: MM A 26-AUG-14 PDF AK SHEET: 1/2 REV DATE FILE BY DRAW: AK SIZE A4 D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 2/2 REV DATE FILE BY DRAW: QL D
