691337500008

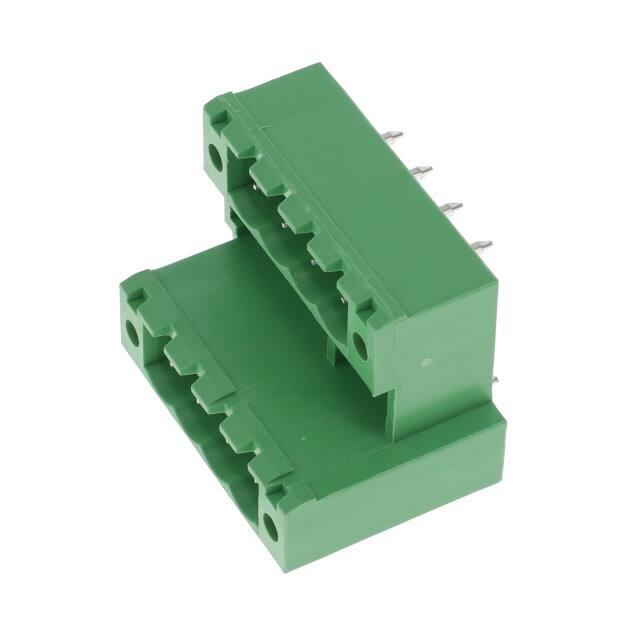

1 2 3 4 5 TECHNICAL CHARACTERISTICS MATERIAL INSULATOR: PA 66 FLAMMABILITY RATING: UL94-V0 COLOR: GREEN CONTACT PIN: BRASS (CuZn) SURFACE OF SOLDER TAIL PLATING: TIN NUT: BRASS M2.5 A ENVIRONMENTAL OPERATING TEMPERATURE: -40 UP TO 105°C COMPLIANCE: LEAD FREE AND ROHS ELECTRICAL CURRENT RATING: WORKING VOLTAGE: WITHSTANDING VOLTAGE: CONTACT RESISTANCE: UL 10A 300VAC 1.6KV 20 mOhm MAX STANDARD CERTIFIED E315414 B MECHANICAL PITCH: 5.08mm SOLDERING JEDEC LEAD FREE WAVE SOLDERING PROCESS PACKAGING BOX C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C UPDATE AK SCALE: DESCRIPTION: SERIE 3375 - 5.08MM DOUBLE LEVEL VERTICALE MALE PCB HEADER WITH FLANGES & NUT TYPE WR-TBL 18-JUN-10 PDF JP SHEET: 1/2 WERI PART NO: 691 337 500 0xx DATE FILE BY DRAW: MARVIN APPROVAL: FBr B 07-JUL-15 A REV UNIT: MM SIZE A4 D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 2/2 REV DATE FILE BY DRAW: QL D
