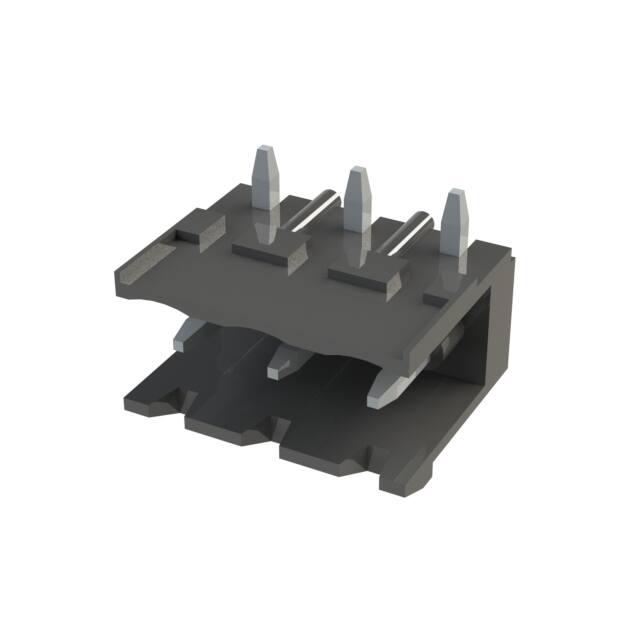

691701530003B

1 2 3 4 5 Ø 1,6 ±0,1 5,08 ±0,1 A CHARACTERISTICS B± 0. 5 RECOMMENDED PCB LAYOUT - COMPONENT VIEW MATERIAL Insulator material : LCP Flammability rating : UL94-V0 Colour : Black Contact pin : Brass (CuZn) Surface of solder tail plating : Tin Plated ENVIRONMENTAL Operating temperature : -40°C up to 105°C Compliance : Lead free and RoHS 5,08 ±0.1 2,3 ±0.3 A ± 0. 5 12 ±0.3 1 ±0.1 8,5 ±0.3 2,8 ±0.3 A B 5.08 9.76 10.16 14.84 15.24 19.92 20.32 25 25.4 30.08 30.48 35.16 35.56 40.24 40.64 45.32 45.72 50.4 50.8 55.48 55.88 60.56 SOLDERING Solder temperature : Reflow process as per JEDEC J-020D-STD B ELECTRICAL Current rating : 10A Working voltage : 300 Vac Dielectric withstanding voltage : 4 kVac/min Contact resistance : 20 mΩ max STANDARD Certified : E315414 / Model number 7015 MECHANICAL Pitch : 5.08mm PACKAGING Tape & Reel C RoHS Compliant PROJECTION: G F .X = +/- 0.2 .XX = +/- 0.15 E D C 14-OCT-13 29-JUL-13 PIN DIMENSION DWG REVIEW QL QL B 19-DEC-11 6917015300xx QL A 14-SEP-11 DATE REV PDF FILE GENERAL TOLERANCE SCALE: 2/1 DESCRIPTION: SERIE 7015B - 5.08MM OPEN HORIZONTAL PCB HEADER THR TYPE QL SHEET: 1/2 WERI PART NO: 691 701 530 0xx B BY DRAW: QUENTIN APPROVAL: RJ UNIT: MM SIZE A4 D 1 2 3 4 5 A Poles A Dimension Packing W1(mm) W2(mm) W3(mm) W4(mm) (Rell/coton) Carton dimensions (cm) Quantity / Carton 33.5 x 33.5 x 40 2500 33.5 x 33.5 x 40 2500 33.5 x 33.5 x 40 2500 33.5 x 33.5 x 40 1500 33.5 x 33.5 x 40 1500 33.5 x 33.5 x 40 1500 33.5 x 33.5 x 40 1500 33.5 x 33.5 x 40 1000 33.5 x 33.5 x 40 1000 33.5 x 33.5 x 40 1000 33.5 x 33.5 x 40 1000 B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: RJ B A REV DATE FILE BY SCALE: DESCRIPTION: SERIE 7015B - 5.08MM OPEN HORIZONTAL PCB HEADER THR TYPE SHEET: 2/2 WERI PART NO: 691 701 530 0xx B UNIT: MM DRAW: QUENTIN SIZE A4 D
