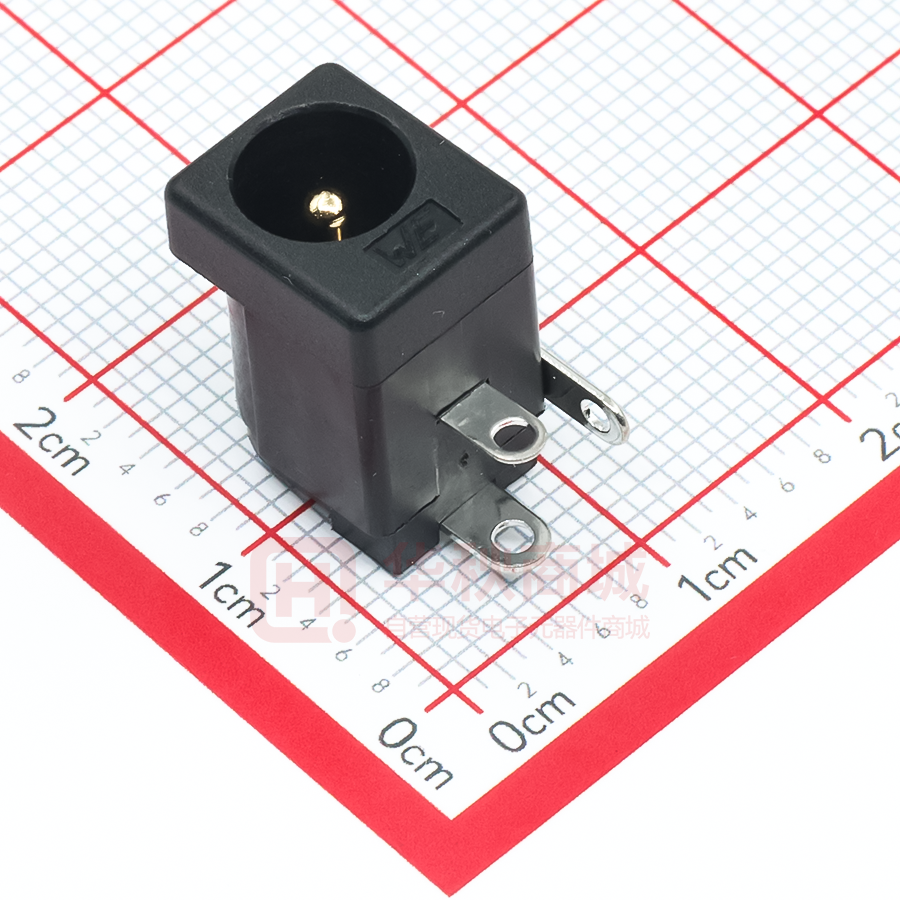

694106301002

1 2 3 4 5 TECHNICAL CHARACTERISTICS PCB LAYOUT - COMPONENT VIEW TOLERANCE ± 0.05 A MATERIAL INSULATOR: PA 66 FLAMMABILITY RATING: UL94-V0 COLOR: BLACK CONTACT MATERIAL: COPPER ALLOY CONTACT TYPE: STAMPED PLATING: - CENTER PIN: GOLD - CENTER PIN TERMINAL: TIN - SHUNT TERMINAL: TIN - TIP SPRING: TIN QUALITY CLASS: 5000 MATING CYLCES ENVIRONMENTAL OPERATING TEMPERATURE: -40°C UP TO +85°C COMPLIANCE: LEAD FREE AND ROHS A ØA 2.0 2.5 XX 06 08 PLUG INNER Ø 2.05 - 0.00 2.55 - 0.00 PLUG OUTER Ø 5.5±0.05 5.5±0.05 +0.10 +0.10 ELECTRICAL CURRENT RATING: 5A WORKING VOLTAGE: 30 VDC INSULATION RESISTANCE: >100 MΩ DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MIN CONTACT RESISTANCE: 50 mΩ max B STANDARD c us CERTIFIED: E323964 SOLDERING JEDEC LEAD FREE WAVE SOLDERING PROCESS PACKAGING BAG C RoHS Compliant PROJECTION: G F E D C APPROVAL: JTs B 02-NOV-15 A REV GENERAL TOLERANCE X = +/- 0.50 .X = +/- 0.30 .XX = +/- 0.20 UNIT: MM VOLTAGE / CERTIF AK 06-NOV-14 PDF AS SHEET: 1/3 DATE FILE BY DRAW: AS DESCRIPTION: DC POWER JACK - RIGHT ANGLED - THT - Ø 2.0 & 2.5 -WR-DC SIZE SCALE: WERI PART NO: 694 1xx 301 002 A4 D 1 2 3 4 5 A Bag (x4) Box (x4) 500 pcs/bag 4 bags/box 2000 pcs/box Waterproof bag B 4 boxes/carton 8000 pcs/carton C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JTs B UNIT: MM DESCRIPTION: DC POWER JACK - RIGHT ANGLED - THT - Ø 2.0 & 2.5 - WR-DC SIZE SCALE: A 29-OCT-14 PDF AS SHEET: 2/3 REV DATE FILE BY DRAW: AS WERI PART NO: 694 1xx 301 002 A4 D 1 2 3 4 5 Cautions and Warnings: This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body, Wurth Elektronik must be asked for a written approval. In addition, even electronic component in general electronic equipments, when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before by the user before usage. A B C RoHS Compliant PROJECTION: G F GENERAL TOLERANCE .X = +/- 0.2 .XX = +/- 0.15 E D C APPROVAL: JC B UNIT: MM DESCRIPTION: DISCLAIMER SIZE WERI PART NO: DISCLAIMER A4 SCALE: A 10-SEP-14 PDF QL SHEET: 3/3 REV DATE FILE BY DRAW: QL D
