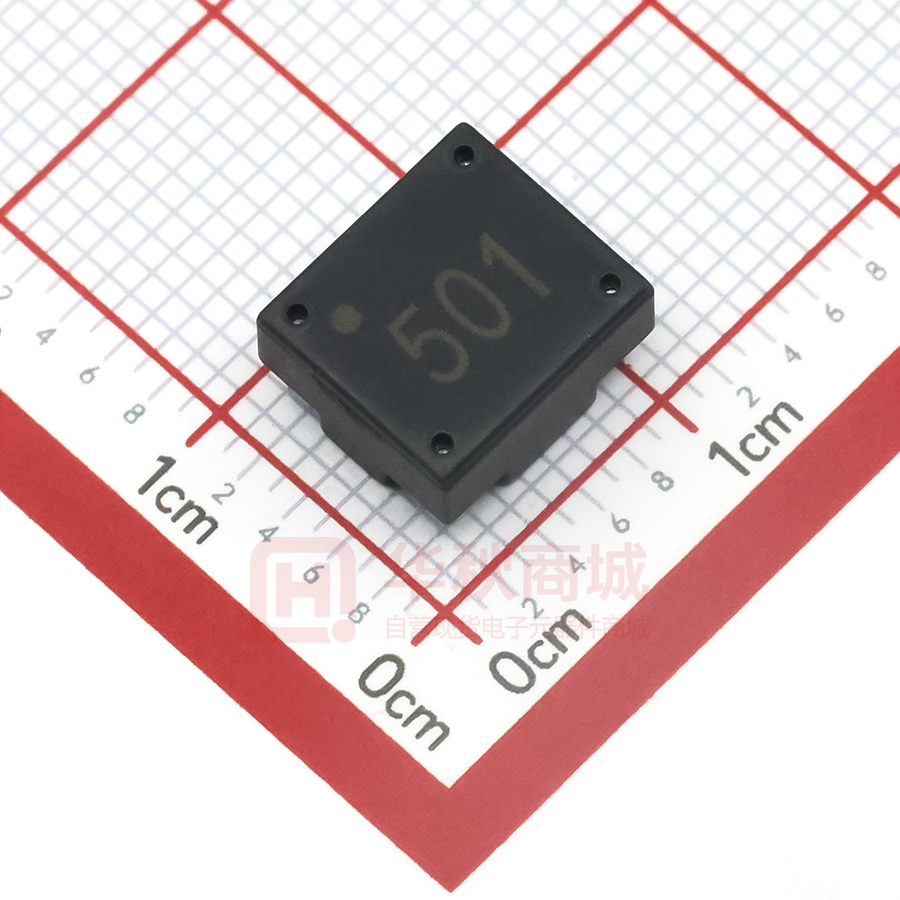

Spezifikation für Freigabe / specification for release Kunde / customer : Artikelnummer / part number : Bezeichnung : description : 744273501 STROMKOMP. DROSSEL WE-SL5 HC COMMON MODE CHOKE WE-SL5 HC DATUM / DATE : 2008-11-26 A Mechanische Abmessungen / dimensions: B C D 1 2 A E N1 4 N2 3 B Elektrische Eigenschaften / electrical properties: Eigenschaften / Testbedingungen / test properties conditions Gleichtaktimpedanz / @ 100 MHz Common mode impedance Leerlauf-Induktivität / 100 kHz / 0,1 mA / 20° C inductance DC-Widerstand / @ 20 ° C DC-resistance Nennstrom / @ 60 ° C rated current Nennspannung / DC/AC rated voltage Wert / value Einheit / unit tol. ±25% typ. ø A B C D E ø 9,5 max 8,3 max 5,3 max 6,3 ± 0,1 7,5 ± 0,1 1,2 typ. mm mm mm mm mm mm C Lötpad/Land pattern: 8,9 2,7 2,7 10,3 Z LO RDC IN UN 500,00 5,00 5,5 5,0 80/42 Ohm µH mΩ A V ±10% max. max. D Prüfgeräte / test equipment: WAYNE KERR WK3260B/WK3265 f ür/for L0 und/and RDC HP 34401 A f ür/for IN E Testbedingungen / test conditions: Luftfeuchtigkeit / humidity: Umgebungstemperatur / temperature: Prüfspannung / isolation voltage 33% 20 ° C 500 V,50 Hz F Werkstoffe & Zulassungen / material & approvals: Gehäuse / case: Draht / wire: Kern / core UL94V-0 P155 IEC317-20 NiZn-Ferrite / NiZn ferrite G Eigenschaften / general specifications: Klimabeständigkeit/ climatic class: Betriebstemp. / operating temperature: Übertemperatur / temperature rise: 40/125/21 - 40° - + 125° C C < 60 K It is recommended that the temperature of the part does not exceed 125° under worst case operating conditions. C Freigabe erteilt / general release: Kunde / customer .................................................................................. .................................................................................. Datum / date Unterschrift / signature Würth Elektronik BKo Version 2 Version 1 Änderung / modification 09-03-05 09-01-30 ............................................................. .................................................................................. BKo Name Geprüft / checked Kontrolliert / approved Datum / date This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Würth Elektronik eiSos GmbH & Co. KG D-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 http://www.we-online.com SEITE 1 VON 3 Spezifikation für Freigabe / specification for release Kunde / customer : Artikelnummer / part number : Bezeichnung : description : 744273501 STROMKOMP. DROSSEL WE-SL5 HC COMMON MODE CHOKE WE-SL5 HC DATUM / DATE : 2008-11-26 H Impedanz / impedance: typischer Impedanzverlauf / typical impedance curve 10000 Impedanz / impedance [Ohm] 1000 100 10 1 1 10 Frequenz / frequency [MHz] common mode differential mode 100 1000 ===== Datum / date .................................................................................. BKo Geprüft / checked Kontrolliert / approved Version 2 Version 1 Änderung / modification 09-03-05 09-01-30 BKo Name Geprüft / checked Kontrolliert / approved Datum / date This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Würth Elektronik eiSos GmbH & Co. KG D-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 http://www.we-online.com SEITE 2 VON 3 Spezifikation für Freigabe / specification for release Kunde / customer : Artikelnummer / part number : Bezeichnung : description : 744273501 STROMKOMP. DROSSEL WE-SL5 HC COMMON MODE CHOKE WE-SL5 HC DATUM / DATE : 2008-11-26 I Rollenspezifikation / tape and reel specification: A B 501 501 501 501 C Gurtspezifikation / A B C Tape specification: 12 mm 4 mm 24 mm f a b d Rollenspezifikation / Reel specification: a 330 ± 2,0 mm b 21 ± 0,8 mm c 13 ± 0,5 mm d 50 ±1,0 mm e 20,5 mm f 17 mm Øc e 165 to 180° The force for tearing off cover tape is 10 to 130 grams in arrow direction feeding direction Freigabe erteilt / general release: Kunde / customer .................................................................................. .................................................................................. Datum / date Unterschrift / signature Würth Elektronik BKo Version 2 Version 1 Änderung / modification 09-03-05 09-01-30 .................................................................................. .................................................................... BKo Geprüft / checked Kontrolliert / approved Name Datum / date This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance. Würth Elektronik eiSos GmbH & Co. KG D-74638 Waldenburg · Max-Eyth-Strasse 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400 http://www.we-online.com SEITE 3 VON 3
