Dimensions: [mm]
Recommended Land Pattern: [mm]
Electrical Properties:
Properties
Test conditions
Value
Unit
Tol.
1 kHz/ 250 mV
100
µH
±20%
IR,40K
ΔT = 40 K
2.5
A
max.
IRP,40K
ΔT = 40 K
Inductance
Rated Current
Performance Rated Current
7,0
12,8
2,9
8,0 ±0,3
5,4
5,0 ±0,2
12,0 ±0,5
no vias and sensitive traces underneath the component
Scale - 2:1
Schematic:
1)
3.2
A
max.
Saturation Current @ 10%
ISAT, 10% |ΔL/L| < 10 %
3.1
A
typ.
Saturation Current @ 30%
ISAT,30% |ΔL/L| < 30 %
3.8
A
typ.
DC Resistance
RDC
@ 20 °C
100
mΩ
typ.
DC Resistance
RDC
@ 20 °C
110
mΩ
max.
Self Resonant Frequency
fres
4.3
MHz
typ.
Operating Voltage
VOP
120
V
max.
1)
10,0 max.
L
refer to IEC 62024-2-2020
Certification:
RoHS Approval
Compliant [2011/65/EU&2015/863]
REACh Approval
Conform or declared [(EC)1907/2006]
Halogen Free
Conform [JEDEC JS709B]
Component Qualification
AEC-Q200 Grade 1
Automotive Approval
Released
12,0 ±0,5
General Information:
Ambient Temperature (referring
to IRP)
-40 °C up to +85 °C
Operating Temperature
-40 °C up to +125 °C
Storage Conditions (in original
packaging)
< 40 °C ; < 75 %
Moisture Sensitivity Level (MSL)
1
Test conditions of Electrical Properties: +20 °C, 33 % rH if not specified differently
Scale - 2:1
Test conditions of Performance Rated Current: refer to IEC 62024-2-2020, Class B (PCB Copper
Width: 40 mm; PCB Copper Thickness: 35 µm)
Product Marking:
Start of Winding
Marking
•
101 (Inductance Code)
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
ALa
004.001
2024-05-08
DIN ISO 2768-1m
PROJECTION
METHOD
DESCRIPTION
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com

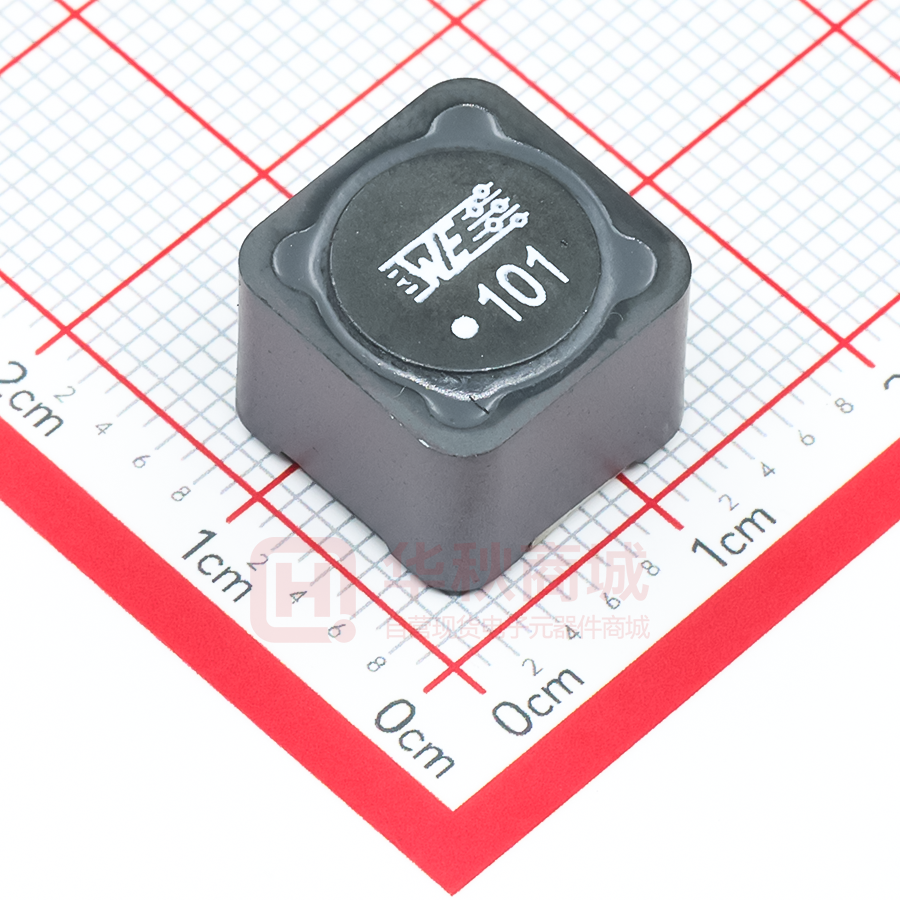

WE-PD SMT Shielded Power
Inductor
ORDER CODE
7447709101
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
1210
