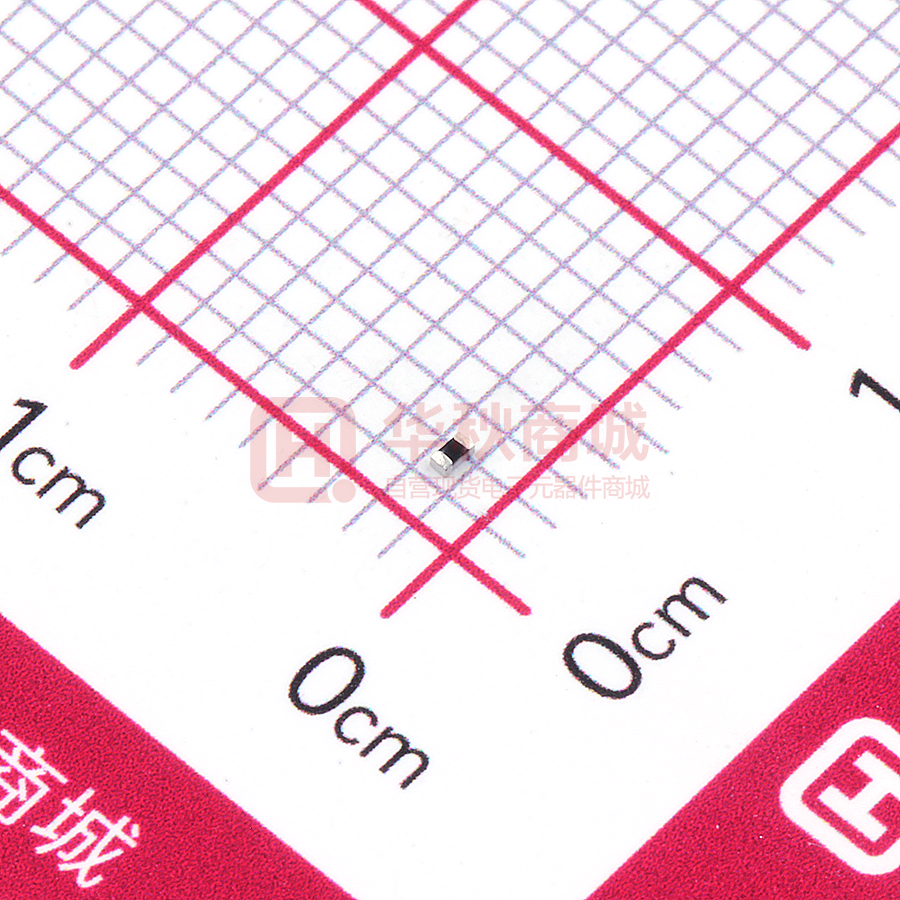

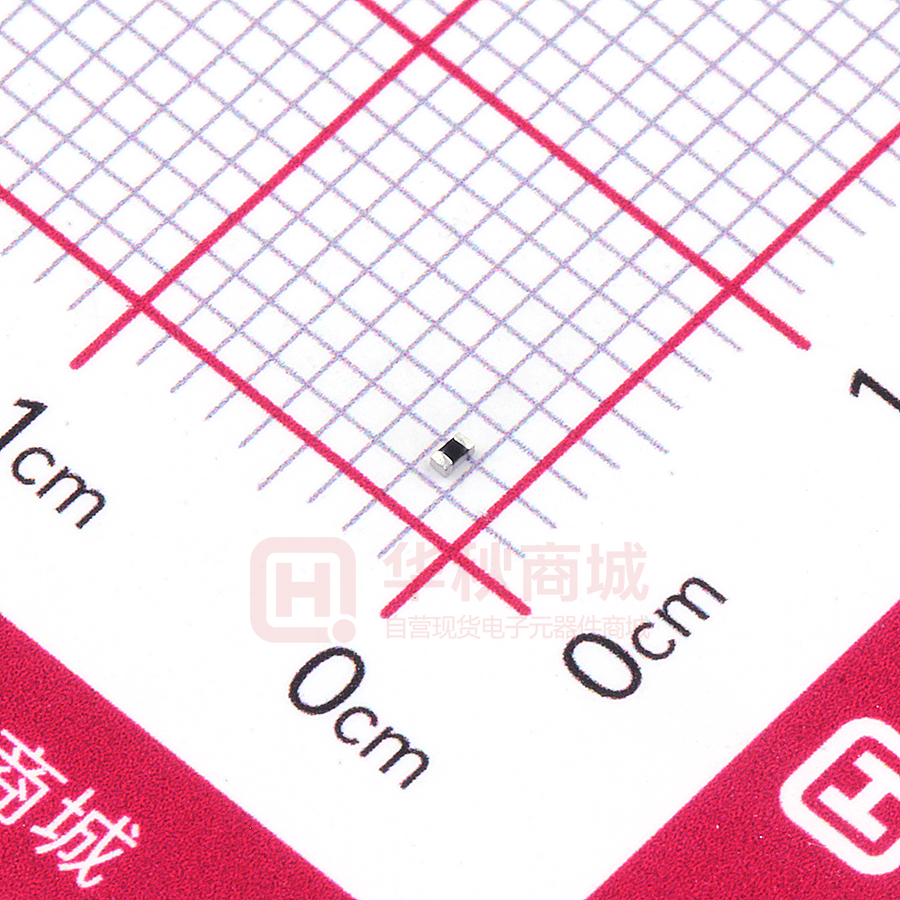

82307050029

Spezifikation für Freigabe / specification for release Kunde / customer : Artikelnummer / part number : Bezeichnung : description : Datum / Date : 82307050029 SMD size: 0402 0402 ESD ULTRA LOW CAP TVS 2006-08-01 ROHS Compliant A Mechanische Abmessungen / dimensions : SIZE (Unit : mm) SIZE 0402 0603 0805 1206 1210 1812 2220 3220 W 0.5 0.8 1.25 1.6 2.5 3.2 5.0 5.0 L 1.0 1.6 2.0 3.2 3.2 4.5 5.7 8.0 T 0.6 0.9 1.2 1.5 1.5 2.0 2.5 1.5 to 2.5 a 0.25 0.3 0.3 0.5 0.5 0.5 0.5 0.8 B Elektrische Eigenschaften / electrical properties : TECHNICAL DATA Part Number 82307050029 Working Voltage DC Max. Clamping Voltage V (*1) Trigger Voltage V Leakage Current µA (*2) ESD Pulse Withstand 5 17 typ. 100 0.05 >100 * 1 Max. Clamping Voltage at 8/20 waveformand 1 A pulse current * 2 Leakage Current at max operating voltage, the max leakage current was measured at reliability test * 3. ESD Typ. Withstands Voltage design and method guarantee this property Capacitance/Frequency ESD Voltage air discharge kV (*3) Capacitance pF +/-15 0.2 Capacitance tolerance: Capacitance measured at:
