830009706

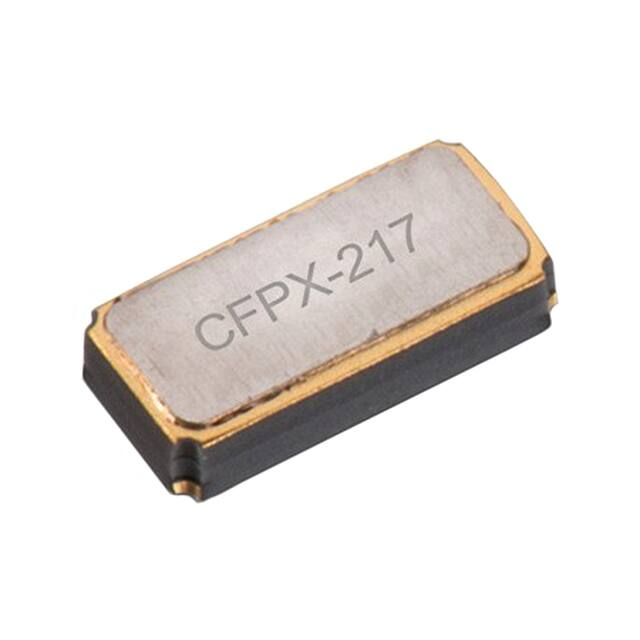

Quartz Crystal Specification IQD Part No. + Packaging: LFXTAL009706Reel Wurth Part No. 830009706 Description A 3.2 x 1.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed Model CFPX-217 Model Issue number 4 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Overtone Order Ageing ±20.00ppm @ 25°C ±5°C Fundamental ±3ppm max in 1st year @ 25°C Electrical Parameters 9.00pF 1.05pF typical 1µW max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR Outline (mm) 70.00kΩ max Environmental Parameters Storage Temperature Range: –55 to 125°C Drop: 100g dummy, 150cm drop (3 directions x 10 times) onto concrete Vibration: 1.5mm amplitude, 10Hz-500Hz, full sine wave or acceleration 10G, 1.5mins in 3 mutually perpendicular planes, duration 2hrs each plane Manufacturing Details RoHS Terminations RoHS Reflow Temp NiAu 260°C max for10secs max Typical Frequency Stability Characteristics Compliance RoHS Status (2011/65/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 3,000 Tape & reel in accordance with EIA-481-D Alternative packing option available USEFUL LINKS Toolbox: www.we-online.com/toolbox Product Catalog: www.we-online.com/products CONTACT INFORMATION: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Str. 1, 74638 Waldenburg, Germany Tel: +49(0) 7942 945-0 Printed on 8 Nov 18 9:57 using WE Part Data Sheet V1.00018 Email: eiSos@we-online.de Web: www.we-online.com Page 1 of 1
