830025159

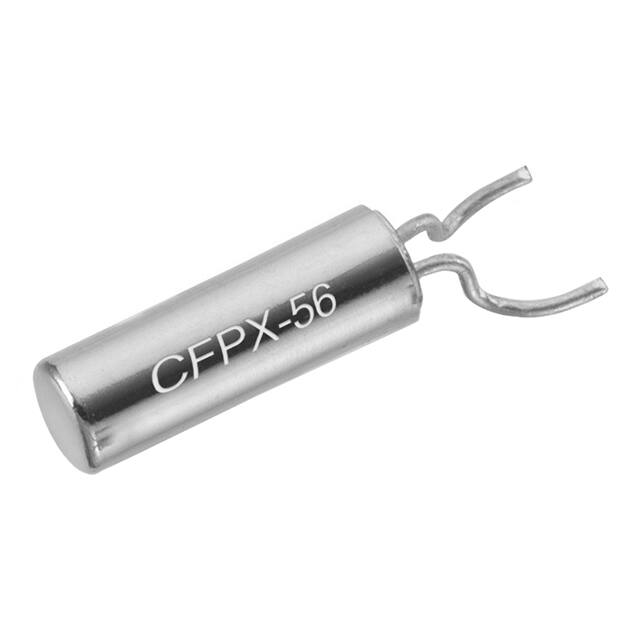

Quartz Crystal Specification IQD Part No. + Packaging: LFXTAL025159Reel Wurth Part No. 830025159 Description 2 x 6mm watch crystal with pre-formed legs to make a SMD package. Model CFPX-56 Model Issue number 6 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Overtone Order Ageing ±20.00ppm @ 25°C Fundamental ±5ppm max in 1st year Electrical Parameters 12.50pF 1.6pF typical 1.0µW max Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR Outline (mm) 40.00kΩ max Motional Capacitance (C1): 3.2fF typ Frequency Stability Coefficient: -0.034ppm/°C² ±0.006ppm/°C² Environmental Parameters Storage Temperature Range: -40 to 85°C High Temperature Storage: 85°C for 24hrs. Drop: 75cm drop (3 times) onto hard wooden board. Manufacturing Details Suitable for reflow soldering at 245°C max for 10sec max x 1 cycle. Note: Do not solder the body of the device to any PCB pads. Use other bonding methods such as adhesive, sealant, sticky-pads. RoHS Terminations SnAgCu RoHS Reflow Temp 245°C for 10secs max Recommended Solder Pad Layout Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 3,000 Tape & reel in accordance with EIA-481-D Alternative packing option available USEFUL LINKS Toolbox: www.we-online.com/toolbox Product Catalog: www.we-online.com/products CONTACT INFORMATION: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Str. 1, 74638 Waldenburg, Germany Tel: +49(0) 7942 945-0 Printed on 13 Jul 21 14:21 using WE Part Data Sheet V1.0020 Email: eiSos@we-online.de Web: www.we-online.com Page 1 of 2 Quartz Crystal Specification IQD Part No. + Packaging: LFXTAL025159Reel Wurth Part No. 830025159 Typical Frequency Stability Characteristics Reflow Temperature Profile CONTACT INFORMATION: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Str. 1, 74638 Waldenburg, Germany Tel: +49(0) 7942 945-0 Printed on 13 Jul 21 14:21 using WE Part Data Sheet V1.0020 Email: eiSos@we-online.de Web: www.we-online.com Page 2 of 2
