830050789

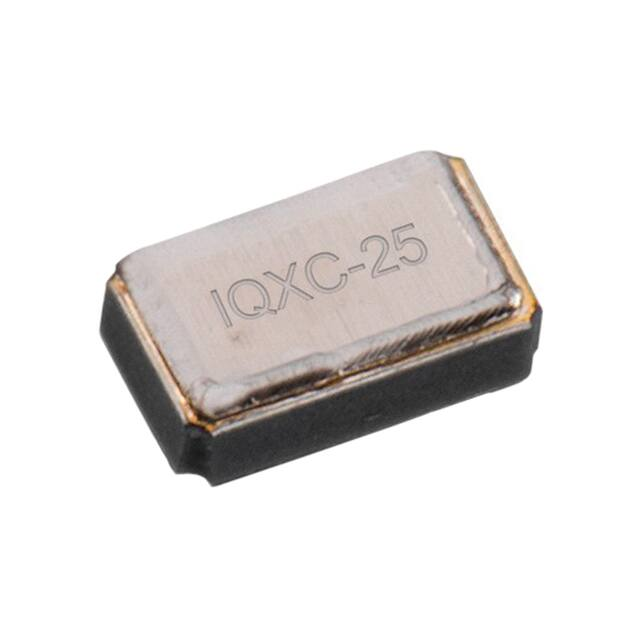

Quartz Crystal Specification IQD Part No. + Packaging: LFXTAL050789Reel Wurth Part No. 830050789 Description 2.0 x 1.2mm SMD crystal in a hermetically sealed ceramic package with an electron beam sealed metal lid. Suitable for real time clock applications. Model IQXC-25 Model Issue number 3 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Operating Temperature Range ±20.00ppm @ 25°C ±5°C -40.00 to 85.00°C Overtone Order Fundamental Ageing ±3ppm max per year @ 25°C Frequency Stability Coefficient: -0.03/°C² typ Motional Capacitance (C1): 7fF typ Outline (mm) Electrical Parameters Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 12.50pF 1.3pF typ, 1.7pF max 0.1μW±0.01μW recommended, ±0.5μW max 90.00kΩ max Environmental Parameters Storage Temperature Range: –40 to 85°C Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3 mutually perpendicular planes. Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually perpendicular planes, duration 2hrs each plane (total 6hrs). Typical Frequency Stability Characteristics Manufacturing Details Maximum Reflow Temperature: 260°C for 5secs max RoHS Terminations Au over Ni over W base RoHS Reflow Temp 260°C max for 5secs max Compliance RoHS Status (2011/65/EU) REACh Status MSL Rating (JDEC-STD-033): Compliant Compliant Not Applicable Packaging Details Pack Style: Reel Pack Size: 3,000 Tape & reel in accordance with EIA-481-D CONTACT INFORMATION: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Str. 1, 74638 Waldenburg, Germany Tel: +49(0) 7942 945-0 Printed on 9 Nov 18 10:49 using WE Part Data Sheet V1.00018 Email: eiSos@we-online.de Web: www.we-online.com Page 1 of 2 Quartz Crystal Specification IQD Part No. + Packaging: LFXTAL050789Reel Wurth Part No. 830050789 Alternative packing option available USEFUL LINKS Toolbox: www.we-online.com/toolbox Product Catalog: www.we-online.com/products CONTACT INFORMATION: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Str. 1, 74638 Waldenburg, Germany Tel: +49(0) 7942 945-0 Printed on 9 Nov 18 10:49 using WE Part Data Sheet V1.00018 Email: eiSos@we-online.de Web: www.we-online.com Page 2 of 2
