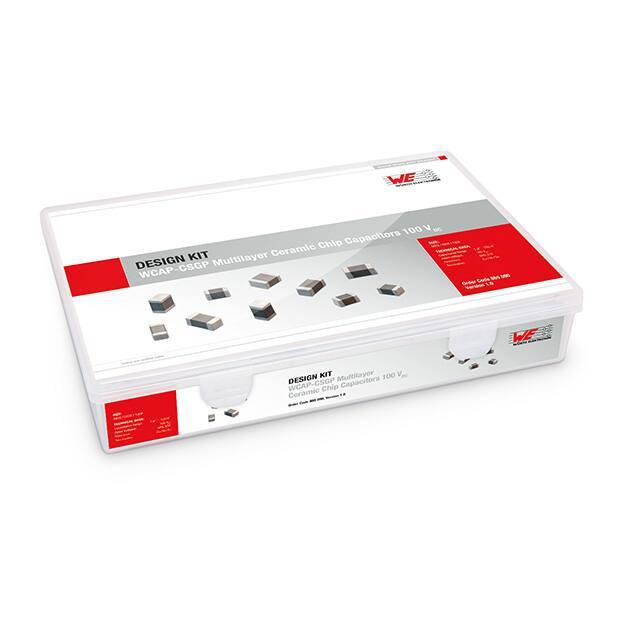

DESIGN KIT
WCAP-CSGP Multilayer Ceramic Chip Capacitors 100 VDC
SIZE:
0603 / 0805 / 1206
TECHNICAL DATA:
Capacitance Range:
Rated Voltages:
Dielectrics:
Termination:
1 pF – 150 nF
100 VDC
NP0, X7R
Cu / Ni / Sn
Order Code 885 090
Version 1.0
www.we-online.com
DESIGN KIT
WCAP-CSGP Multilayer Ceramic Chip Capacitors 100 VDC
0603
NP0
0805
X7R
NP0
1206
X7R
X7R
Dielectric
Operating
Temperature
NP0
-55°C to +125°C
X7R
-55°C to +125°C
Dielectric
Capacitance
Characteristics*
885012006087
885012006077
885012206102
885012206112
885012007094
885012007083
885012207110
885012207120
885012208106
NP006031R0C100DFCT10000
NP00603470J100DFCT10000
X7R0603101K100DFCT10000
X7R0603472K100DFCT10000
NP008051R0C100DFCT10000
NP00805151J100DFCT10000
X7R0805101K100DFCT10000
X7R0805472K100DFCT10000
X7R1206102K100DFCT10000
1 pF ±0.25 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
47 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
100 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
4.7 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
1 pF ±0.25 pF, H=0.6 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
150 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
100 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
4.7 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
1 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
885012006089
885012006078
885012206103
885012206113
885012007095
885012007085
885012207111
885012207121
885012208112
NP006032R2C100DFCT10000
NP00603680J100DFCT10000
X7R0603151K100DFCT10000
X7R0603682K100DFCT10000
NP008053R3C100DFCT10000
NP00805331J100DFCT10000
X7R0805151K100DFCT10000
X7R0805682K100DFCT10000
X7R1206103K100DFCT10000
2.2 pF ±0.25 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
68 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
150 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
6.8 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
1 pF ±0.25 pF, H=0.6 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
330 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
150 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
6.8 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
10 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
NP0
±30 ppm / ±0,54 %
885012006090
885012006079
885012206105
885012206114
885012007096
885012007086
885012207113
885012207122
885012208113
X7R
±15 %
NP006033R3C100DFCT10000
NP00603101J100DFCT10000
X7R0603331K100DFCT10000
X7R0603103K100DFCT10000
NP008054R7C100DFCT10000
NP00805471J100DFCT10000
X7R0805331K100DFCT10000
X7R0805103K100DFCT10000
X7R1206153K100DFCT10000
3.3 pF ±0.25 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
100 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
330 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
10 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
4.7 pF ±0.25 pF, H=0.6 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
470 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
330 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
10 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
15 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 6.7 GΩ
885012006091
885012006080
885012206106
885012206118
885012007076
885012007087
885012207114
885012207123
885012208115
NP006034R7C100DFCT10000
NP00603151J100DFCT10000
X7R0603471K100DFCT10000
X7R0603473K100DFCT10000
NP00805100J100DFCT10000
NP00805681J100DFCT10000
X7R0805471K100DFCT10000
X7R0805153K100DFCT10000
X7R1206333K100DFCT10000
4.7 pF ±0.25 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
150 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
470 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
47 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 2.1 GΩ
10 pF ±5 %, H=0.6 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
680 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
470 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
15 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 6.7 GΩ
33 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 3 GΩ
885012006092
885012006082
885012206107
885012007079
885012007088
885012207115
885012207125
885012208116
NP006035R6D100DFCT10000
NP00603331J100DFCT10000
X7R0603681K100DFCT10000
X7R0603104K100DFCT10000
NP00805330J100DFCT10000
NP00805102J100DFCT10000
X7R0805681K100DFCT10000
X7R0805333K100DFCT10000
X7R1206473K100DFCT10000
5.6 pF ±0.5 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
330 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
680 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
100 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 1 GΩ
33 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
1 nF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
680 pF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
33 nF ±10 %, H=1.25 mm
DF ≤ 2.5 %, IR ≥ 3 GΩ
47 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 2.1 GΩ
885012006093
885012006083
885012206108
885012007080
885012007089
885012207116
885012207126
885012208117
NP006038R2D100DFCT10000
NP00603471J100DFCT10000
X7R0603102K100DFCT10000
NP00805470J100DFCT10000
NP00805152J100DFCT10000
X7R0805102K100DFCT10000
X7R0805473K100DFCT10000
X7R1206683K100DFCT10000
8.2 pF ±0.5 pF, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
470 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
1 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
47 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
1.5 nF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
1 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
47 nF ±10 %, H=1.25 mm
DF ≤ 2.5 %, IR ≥ 2.1 GΩ
68 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 1.5 GΩ
885012006073
885012006084
885012206109
885012007081
885012007091
885012207117
885012207127
885012208118
NP00603100J100DFCT10000
NP00603681J100DFCT10000
X7R0603152K100DFCT10000
NP00805680J100DFCT10000
NP00805332J100DFCT10000
X7R0805152K100DFCT10000
X7R0805683K100DFCT10000
X7R1206104K100DFCT10000
10 pF ±5 %, H=0.8 mm
Q ≥ 400+20C, IR ≥ 10 GΩ
680 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
1.5 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
68 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
3.3 nF ±5 %, H=1.25 mm
Q ≥ 1000, IR ≥ 10 GΩ
1.5 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
68 nF ±10 %, H=1.25 mm
DF ≤ 2.5 %, IR ≥ 1.5 GΩ
100 nF ±10 %, H=1.25 mm
DF ≤ 2.5 %, IR ≥ 1 GΩ
885012006076
885012006085
885012206111
885012007082
885012007092
885012207119
885012207128
885012208119
NP00603330J100DFCT10000
NP00603102J100DFCT10000
X7R0603332K100DFCT10000
NP00805101J100DFCT10000
NP00805472J100DFCT10000
X7R0805332K100DFCT10000
X7R0805104K100DFCT10000
X7R1206154K100DFCT10000
33 pF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
1 nF ±5 %, H=0.8 mm
Q ≥ 1000, IR ≥ 10 GΩ
3.3 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
100 pF ±5 %, H=0.6 mm
Q ≥ 1000, IR ≥ 10 GΩ
4.7 nF ±5 %, H=1.25 mm
Q ≥ 1000, IR ≥ 10 GΩ
3.3 nF ±10 %, H=0.8 mm
DF ≤ 2.5 %, IR ≥ 10 GΩ
100 nF ±10 %, H=1.25 mm
DF ≤ 2.5 %, IR ≥ 1 GΩ
150 nF ±10 %, H=1.6 mm
DF ≤ 2.5 %, IR ≥ 0.7 GΩ
885012206120
*max. permissible capacitance change within
specified temperature range
