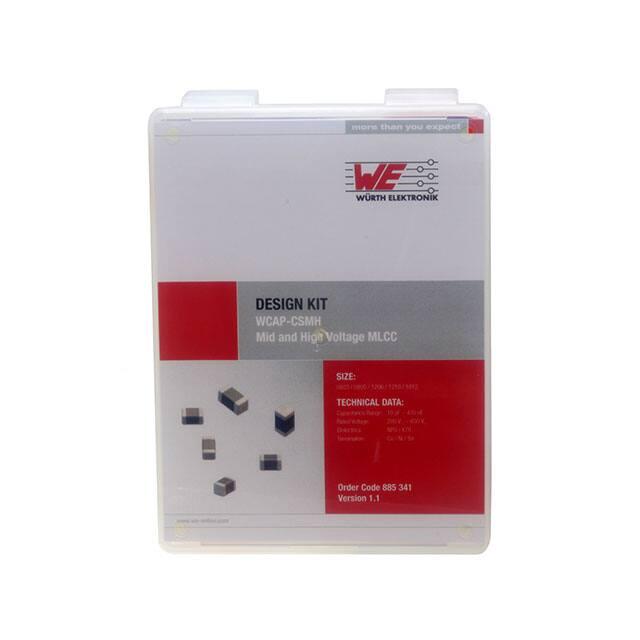

DESIGN KIT WCAP-CSMH Mid and High Voltage MLCC Size: 0603 / 0805 / 1206 / 1210 / 1812 Technical Data: Capacitance Range: Rated Voltage: Dielectrics: Termination: 10 pF – 470 nF 200 VDC – 630 VDC NP0, X7R Cu / Ni / Sn Order Code 885 341 Version 1.0 www.we-online.com DESIGN KIT WCAP-CSMH Mid and High Voltage MLCC 0603 885 342 006 001 250 VDC 0805 885 342 007 003 200 VDC 0805 885 342 207 012 200 VDC 1206 885 342 208 005 500 VDC 1206 885 342 208 013 630 VDC 1812 885 342 211 001 200 VDC 10 pF; ±5%; T=0.8mm; Q≥400+20C; IR≥10G Ohm 1nF; ±5%; T=1.25mm ; Q≥1000; IR≥10G Ohm 470 pF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 470 pF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 15 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥6.67G Ohm 4.7 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 885 342 006 003 250 VDC 885 342 007 005 200 VDC 885 342 207 013 200 VDC 885 342 208 007 500 VDC 885 342 208 014 630 VDC 885 342 211 002 200 VDC 100 pF; ±5%; T=0.8mm; Q≥1000; IR≥10G Ohm 2.2 nF; ±5%; T=1.25mm; Q≥1000; IR≥10G Ohm 1nF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 2.2 nF; ±10%; T=1.25mm ; DF≤2.5%; IR≥10G Ohm 22 nF; ±10%; T=1.6mm; DF≤2.5%; IR≥4.55G Ohm 100 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥1G Ohm 885 342 006 005 250 VDC 885 342 007 006 200 VDC 885 342 207 014 200 VDC 885 342 208 008 500 VDC 885 342 208 015 630 VDC 885 342 211 003 250 VDC 470 pF; ±5%; T=0.8mm; Q≥1000; IR≥10G Ohm 47 pF; ±5%; T=0.6mm; Q≥1000; IR≥10G Ohm 10 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 4.7 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 33 nF; ±10%; T=1.6mm; DF≤2.5%; IR≥3.03G Ohm 470 nF; ±10%; T=2.5mm; DF≤2.5%; IR≥0.21G Ohm 885 342 206 001 250 VDC 885 342 207 009 200 VDC 1206 885 342 008 001 500 VDC 885 342 208 009 500 VDC 885 342 211 004 500 VDC 47 pF; ±5%; T=0.8mm Q≥1000; IR≥10G Ohm 10 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 1210 885 342 209 003 630 VDC 100 pF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 4.7 nF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 10 nF; ±10%; 220 nF; ±10%; T=2.5mm T=1.25mm; DF≤2.5%; DF≤2.5%; IR≥0.46G Ohm IR≥10G Ohm 885 342 206 003 250 VDC 885 342 207 010 200 VDC 885 342 008 004 630 VDC 885 342 208 011 630 VDC 885 342 209 004 630 VDC 885 342 211 005 500 VDC 1nF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 10 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 100 pF; ±5%; T=1.25mm; Q≥1000; IR≥10G Ohm 1nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 33 nF; ±10%; T=1.6mm; DF≤2.5%; IR≥3.03G Ohm 100 nF; ±10%; T=2mm; DF≤2.5%; IR≥1G Ohm 885 342 206 006 250 VDC 885 342 207 011 200 VDC 885 342 008 007 630 VDC 885 342 208 012 630 VDC 885 342 209 005 630 VDC 885 342 211 006 630 VDC 10 nF; ±10%; T=0.8mm; DF≤2.5%; IR≥10G Ohm 22 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥4.55G Ohm 2.2 nF; ±5%; T=1.6mm; Q≥1000; IR≥10G Ohm 10 nF; ±10%; T=1.25mm; DF≤2.5%; IR≥10G Ohm 68 nF; ±10%; T=2mm; DF≤2.5%; IR≥1.47G Ohm 100 nF; ±10%; T=2mm; DF≤2.5%; IR≥1G Ohm Ceramic Capacitance Characteristics* NP0 ± 30ppm / ± 0.54% X7R ± 15% Technical Data: Operating Temperature: -55°C to +125°C Termination: Cu / Ni / Sn T = Thickness * within Operating Temperature Range Important information: Würth Elektronik’s design kits contain reference components. These components correspond with the current product development status on the day of supply. Exchange of the reference components to components with up-to-date product development status is not carried out automatically. No liability is taken for the use of these reference components. Therefore, please request new samples prior to releases for series production and product release. Please check datasheets on www.we-online.com for specifications. Würth Elektronik eiSos GmbH & Co. KG, EMC & Inductive Solutions. © 2017 www.we-online.com All products ex stock!
