Dimensions: [mm]
Recommended Land Pattern: [mm]
Properties
2,3
0,8
0,7
Reflow
0,4 ±0,15
0,8
0,8 ±0,07
0,8 ±0,1
Capacitance
C
Rated Voltage
VR
Q-Factor
Q
1 ±0.2 VRMS, 1 MHz ±10%
@25 °C
1 ±0.2 VRMS, 1 MHz ±10%
@25 °C
T
F
RISO Apply VR for 60 s max.
Value
Unit
Tol.
33
pF
±5%
250
V (DC) max.
1000
min.
10
GΩ
min.
Precondition for Class II MLCC measurement: Apply a preheat treatment @150 ±10 °C for 1 hour.
The measurement should be applied after 24 ±2 hrs the part was stored under ambient conditions.
There is not any precondition necessary for Class I MLCC.
0,8
D
Test conditions
Insulation Resistance
2,4
1,6 ±0,1
Electrical Properties:
Wave
A
R
Schematic:
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
General Information:
Mid & High Voltage MLCC
Ceramic Type
NP0 Class I
Temperature Coefficient
± 30 ppm/ °C max.
Operating Temperature
-55 up to +125 °C
Storage Conditions
(in original packaging)
5 °C up to + 35 °C; 10 % up to 75 % RH
Moisture Sensitivity Level (MSL)
Dielectric Strength
1
15 sec. @120 % VR; Charge & Discharge Current 0603
10 ±1 sec; 5 N
10 ±1 sec; 10 N
Vibration Resistance
all 3 directions, 2 hours each @ 10 - 50 Hz/
min., amplitude 0.75 mm or 10 g
Resistance to Solder Heat
Specific
Refer to Soldering Profile
Certification:
RoHS Approval
Compliant [2011/65/EU&2015/863]
REACh Approval
Conform or declared [(EC)1907/2006]
Halogen Free
Conform [JEDEC JS709B]
Halogen Free
Conform [IEC 61249-2-21]
D
A
R
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
T
F
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PSL
002.000
2021-03-29
DIN ISO 2768-1m
PROJECTION
METHOD
DESCRIPTION
TECHNICAL REFERENCE

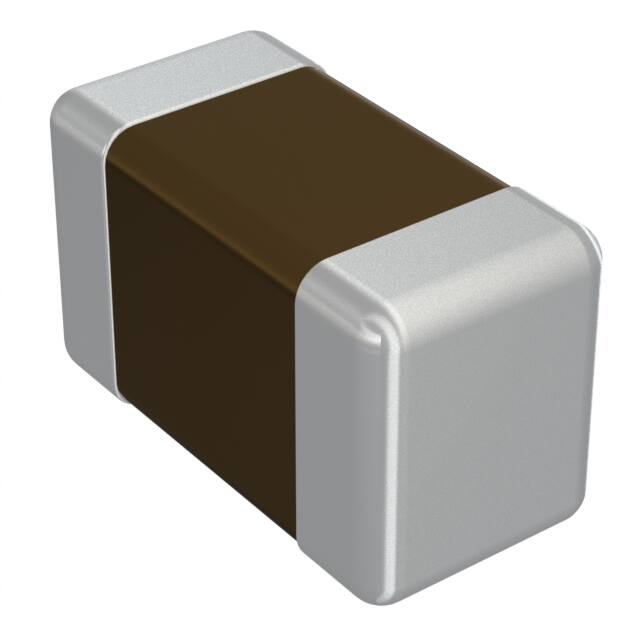

WCAP-CSMH Ceramic Capacitors
NP00603330J250DFCT10000
ORDER CODE
885342006002
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
0603
eiCap
Valid from 2021-03-29 due to PCN
2/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Packaging Specification - Tape: [mm]
Packaging Specification - Reel: [mm]
P0
A
P2
T (=K0)
W3
E1
D0
B0
A0
P1
T1
T1
A
Feeding direction
A
R
Start
Carrier Tape
Cover Tape
No Component
min. 160mm
Components
D
Packaging is referred to the international standard IEC 60286-3:2019
Tape Type
1a
A0
(mm)
typ.
1,05
B0
(mm)
typ.
1,80
W
(mm)
+0,3/ -0,1
8,00
165° - 180°
T
(mm)
ref.
1,20
T1
(mm)
ref.
0,10
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
4,00
8 mm
W2
detail B
B
No Component
min.100mm
Top
Cover Tape
Chip Cavity
Sprocket Hole
Embossment
Bottom
Cover Tape
Cover Tape
min. 400mm
P2
(mm)
+0,05
2,00
Pull-of force
Tape width
A
D
C
Top Cover
Tape
End
T
F
N
E2
W
F
B
W1
close to center
0,1 N - 1,0 N
D0
(mm)
+0,1 / -0,0
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
6,25
F
(mm)
±0,05
3,50
Material
Qty.
(pcs.)
Paper
4000
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
A
(mm)
± 2,0
178
B
(mm)
min.
1.5
C
(mm)
min.
12.8
D
(mm)
min.
20.2
N
(mm)
min.
50
W1
(mm)
+1,5
8.4
W2
(mm)
max.
14.4
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PSL
002.000
2021-03-29
DIN ISO 2768-1m
W3
(mm)
min.
7.9
W3
(mm)
max.
10.9
Material
Polystyrene
PROJECTION
METHOD
DESCRIPTION
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
NP00603330J250DFCT10000
ORDER CODE
885342006002
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
0603
eiCap
Valid from 2021-03-29 due to PCN
3/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Packaging Specification - Outer Carton: [mm]
W
IC
LIC
(mm)
typ.
120,00
WIC
(mm)
typ.
180,00
D
HIC
(mm)
typ.
180,00
A
R
L
No. of
Reel (pcs.)
10
C
T
F
H
H
IC
Packaging Specification - Inner Carton: [mm]
W
C
L
C
IC
Qty.
(pcs.)
Material
40000
Paper
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
LC
(mm)
typ.
393,00
WC
(mm)
typ.
393,00
HC
(mm)
typ.
203,00
No. of
Inner Carton (pcs.)
Qty.
(pcs.)
Material
6
240000
Paper
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PSL
002.000
2021-03-29
DIN ISO 2768-1m
PROJECTION
METHOD
DESCRIPTION
TECHNICAL REFERENCE
WCAP-CSMH Ceramic Capacitors
NP00603330J250DFCT10000
ORDER CODE
885342006002
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
0603
eiCap
Valid from 2021-03-29 due to PCN
4/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Tp
tp
Max. Ramp Up Rate
Max. Ramp Down Rate
TL
Temperature
Ts max
Ts min 150 °C
Preheat Temperature Max
Ts max 200 °C
Preheat Time ts from Ts min to Ts max
Time tL maintained above TL
3 °C/ second max.
T
F
TL
217 °C
tL
60 - 150 seconds
Tp
Tp ≤ Tc, see Table below
Time within 5°C of actual peak
temperature
tp
20 - 30 seconds
6 °C/ second max.
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
tS
60 - 120 seconds
Peak package body temperature
Ramp-down Rate (TP to TL)
Ts min
ts
Ramp-up Rate (TL to TP)
Liquidous Temperature
tL
Preheat Area
TC –5°C
Value
Preheat Temperature Min
A
R
8 minutes max.
Package Classification Reflow Temperature (Tc):
Volume mm³
350-2000
Volume mm³
>2000
PB-Free Assembly | Package Thickness 260 °C
< 1.6 mm
260 °C
260 °C
PB-Free Assembly | Package Thickness 260 °C
1.6 mm - 2.5 mm
250 °C
245 °C
PB-Free Assembly | Package Thickness 250 °C
> 2.5 mm
245 °C
245 °C
Properties
25
Time 25°C to Peak
Time
D
Volume mm³
