IC-744721

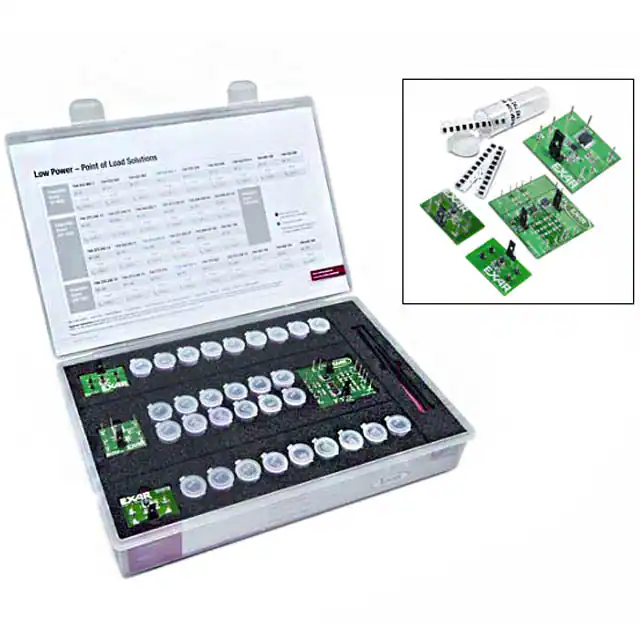

up to 97 % efficiency DESIGN KIT Low Power – Point of Load Solutions 600 mA to 1.5 A, Low Input Voltage Single and Dual Channel Converter Evaluation Boards SP6669, XRP6658, XRP6668, XRP6657 Inductors WE-LHMI, WE-SPC, WE-TPC, WE-PD2, WE-LQ Order Code IC-744 721 Version 1.0 www.we-online.com Low Power – Point of Load Solutions Evaluation Board SP 6669 Evaluation Board XRP 6658 Evaluation Board XRP 6657 744 032 900 2 744 025 002 744 025 003 744 032 900 4 744 025 004 744 025 006 744 032 910 0 744 025 150 744 025 220 WE-LQ WE-TPC WE-TPC WE-LQ WE-TPC WE-TPC WE-LQ WE-TPC WE-TPC L: 2.2 μH L: 2.2 μH L: 3.3 μH L: 4.7 μH L: 4.7 μH L: 6.8 μH L: 10 μH L: 15 μH L: 22 μH RDC: 0.126 Ω RDC: 0.057 Ω RDC: 0.085 Ω RDC: 0.195 Ω RDC: 0.1 Ω RDC: 0.142 Ω RDC: 0.390 Ω RDC: 0.356 Ω RDC: 0.525 Ω 744 373 240 10 744 373 240 15 744 043 002 2 744 373 240 33 744 089 430 68 744 089 431 50 WE-SPC WE-LHMI WE-TPC WE-LHMI WE-SPC WE-SPC L: 1.0 μH L: 1.5 μH L: 2.2 μH L: 3.3 μH L: 6.8 μH L: 15 μH RDC: 0.022 Ω RDC: 0.0348 Ω RDC: 0.023 Ω RDC: 0.069 Ω RDC: 0.051 Ω RDC: 0.136 Ω 744 373 240 12 744 043 001 8 744 373 240 22 744 373 240 47 744 089 431 00 744 043 180 Best suitable inductor Evaluation board configuration WE-LHMI WE-TPC WE-LHMI WE-LHMI WE-SPC WE-TPC Lowest profile inductor L: 1.2 μH L: 1.8 μH L: 2.2 μH L: 4.7 μH L: 10 μH L: 18 μH All inductors are suitable, please refer to tables available in the booklet. RDC: 0.025 Ω RDC: 0.020 Ω RDC: 0.051 Ω RDC: 0.095 Ω RDC: 0.095 Ω RDC: 0.138 Ω 744 373 240 10 744 373 240 15 744 773 018 744 042 001 8 744 773 022 744 373 240 33 744 042 100 744 042 150 744 042 330 WE-LHMI WE-LHMI WE-PD2 WE-TPC WE-PD2 WE-LHMI WE-TPC WE-TPC WE-TPC L: 1.0 μH L: 1.5 μH L: 1.8 μH L: 1.8 μH L: 2.2 μH L: 3.3 μH L: 10 μH L: 15 μH L: 33 μH RDC: 0.022 Ω RDC: 0.0348 Ω RDC: 0.028 Ω RDC: 0.040 Ω RDC: 0.2470 Ω RDC: 0.069 Ω RDC: 0.120 Ω RDC: 0.175 Ω RDC: 0.382 Ω Evaluation Board XRP 6668 EMC COMPONENTS | INDUCTORS | TRANSFORMERS | RF COMPONENTS | CIRCUIT PROTECTION | EMC Shielding Material | CONNECTORS | SWITCHES | ASSEMBLY TECHNIQUE | POWER ELEMENTS Important information: Würth Elektronik’s design kits contain reference components. These components correspond with the current product development status on the day of supply. Exchange of the reference components to components with up-to-date product development status is not carried out automatically. No liability is taken for the use of these reference components. Therefore, please request new samples prior to releases for series production and product release. Please check datasheets on www.we-online.com for specifications. Würth Elektronik eiSos GmbH & Co. KG, EMC & Inductive Solutions. © 2012 www.we-online.com More information on www.we-online.com/exar
