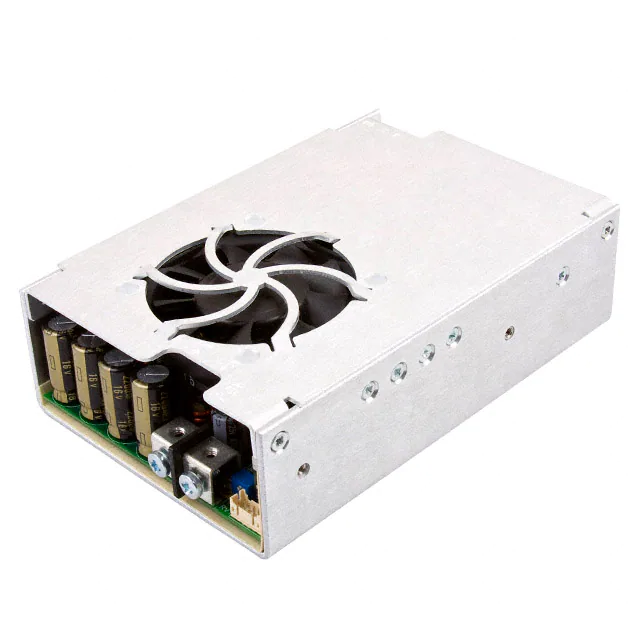

FCM400PS24

AC-DC 400 Watts FCM Series xppower.com • 400 W Continuous, 600 W Peak • IT and Medical Approvals • 80 V - 275 VAC Operation • Low Noise Fan • Screw Terminals • 5 V Standby, AC OK and Remote On/Off • 3 Year Warranty Specification Input General Input Voltage • 80-275 VAC, derate output power 0.9 Earth Leakage Current • 260 μA max, 264 VAC, 60 Hz Input Protection • F10 A / 250 V internal fuse in line and neutral Output Output Voltage Output Voltage Trim Initial Set Accuracy Minimum Load Start Up Delay Start Up Rise Time Hold Up Time Line Regulation Load Regulation Transient Response • • • • • • • • • • 12-48 VDC (see tables) ±10% V1 ±1% V1, ±5% V2 No minimum load required 1 s typical 50 ms 20 ms minimum ±0.5% maximum ±1% V1, ±5% V2 4% max. deviation, recovery to within 1% in 500 μs for a 50-75-50% load change Ripple & Noise • 1% pk-pk, 20 MHz bandwidth Overvoltage Protection • 115-140% Vnom, recycle input to reset Overtemperature • Auto reset Protection Overload Protection • 150-165%, V1 only Short Circuit Protection • Continuous, approximately constant current Temperature • 0.05% / °C Coefficient Remote On/Off • Uncommitted isolated optocoupler diode, powered diode inhibits V1 & Fan Efficiency Isolation Switching Frequency Power Density Signals MTBF • 85% typical • 4000 VAC input to output, 2 x MOPP, 1500 VAC input to ground, 1 x MOPP, 500 VAC output to ground • PFC 70 kHz, main converter 65 kHz typical • 8.6 W/in3 • AC OK, remote on/off, 5 V standby • 236 kHrs to MIL-HDBK-217F at 25 °C, GB Environmental Operating Temperature • -10 °C to +70 °C, derate linearly from +50 °C at 2.5% / °C to 50% load at +70 °C Cooling • Forced cooled with integral fan Operating Humidity • 95% RH, non-condensing Storage Temperature • -40 °C to +85 °C Operating Altitude • 3000 m Shock • 30 g pk, half sine, 6 axes Vibration • 2 g rms, 5 Hz to 500 kHz, 3 axes EMC & Safety Emissions Harmonic Currents Voltage Flicker Radiated Immunity EFT/Burst Surge Conducted Immunity Dips & Interruptions Safety Approvals • EN55011/32 level B conducted EN55011/32 level A radiated • EN61000-3-2, class A EN61000-3-2, class C for loads ≥50% • EN61000-3-3 • EN61000-4-3, level 3 Perf Criteria A • EN61000-4-4, level 3 Perf Criteria A • EN61000-4-5, installation class 3, Perf Criteria A • EN61000-4-6, level 3, Perf Criteria A • EN61000-4-11, 30% 10 ms, 60% 100 ms, 100% 5000 ms, Perf Criteria A, B, B, EN60601-1-2, 30% 500 ms, 60% 100 ms, 100% 10 ms, 100% 5000 ms, Perf Criteria A, A, A, B - 230 VAC. Consult longform datasheet for 115 V operation • IEC60950-1 CB report, UL60950-1, EN60950-1, IEC62368-1 CB report, UL62368-1, EN62368-1, IEC60601-1 CB report, CSA 22.2 No.60601-1, ANSI/AAMI ES60601-1, TUV60601-1, including risk management, CE & UKCA meets all applicable directives & legislation Output Voltage V1 12 V Output Current V1 Continuous Peak(1) 33.3 A 50.0 A Output Power Continuous Peak(1) 400 W 600 W Standby Supply V2 5 V / 0.5 A Model Number FCM400PS12 15 V 26.6 A 40.0 A 5 V / 0.5 A 400 W 600 W FCM400PS15 24 V 16.6 A 25.0 A 5 V / 0.5 A 400 W 600 W FCM400PS24 28 V 14.2 A 21.4 A 5 V / 0.5 A 400 W 600 W FCM400PS28 36 V 11.1 A 16.7 A 5 V / 0.5 A 400 W 600 W FCM400PS36 48 V 8.3 A 12.5 A 5 V / 0.5 A 400 W 600 W FCM400PS48 Notes 1. Peak Output Power - The peak duration is 500 ms maximum, average power must not exceed 400 W. Mechanical Details 6.00 ±0.02 (152.4 ±0.5) NOT INCLUDING OUTPUT TERMINAL SCREWS Input Connector Tyco part #640445-5 OUTPUT VOLTAGE ADJUSTMENT 2 OUTPUT TERMINALS ALLOW CONNECTION FROM EITHER TOP OR SIDE 1 4.00 ±0.02 (101.6 ±0.5) Pin 1 Pin 2 Pin 3 J1 mates with Tyco MTA-156 & SL-156 product lines OUTPUT TERMINALS M4 SCREWS IN 2 POSITIONS. TORQUE TO 90 cNm Max. INPUT CONNECTOR M3 MOUNTING HOLES (IN 4 POSITIONS). MAX. PENETRATION BY SCREW TO BE 2.5mm FROM BOTTOM FACE OF CHASSIS 0.52 (13.3) 2.95 (75.0) Line Neutral Earth Pin 2 Pin 1 Pin 10 Pin 9 SIGNALS CONNECTOR CON8 10-WAY JST-B10B-PDHSS Pin Pin Pin Pin Pin Pin Pin Pin Pin Pin 1 2 3 4 5 6 7 8 9 10 Signals Connector 5 V Standby Return 5 V Standby 5 V Standby Return 5 V Standby 5 V Standby Return 5 V Standby Power Fail (Collector) Power Fail (Emitter) Remote On / Off (Cathode) Remote On / Off (Anode) Mating plug: JST p/n PHDR-10VS Contact: 26-22 AWG JST p/n SPHD-001T-P0.5 3.94 (100.0) Output Connector Pin 1 +V1 Pin 2 V1 RTN 1.03 (26.2) Notes M3 MOUNTING HOLES (IN 2 POSITIONS). MAX. PENETRATION BY SCREW TO BE 3.5mm FROM OUTSIDE FACE OF CHASSIS 1. Dimensions shown in inches (mm). Tolerance: ±0.02 (±0.5) 2. Weight: 1.8 lb (800 g). 1.93 ±0.02 (49.0 ±0.5) 0.96 (24.3) 2.10 (53.4) HEIGHT INCLUDES EMBOSSED FAN COVER 3.35 (85.0) Input Voltage & Temperature Derating 600 540 Output Power (W) 600 Peak Power Availability 400 360 500 Peak Power Availability 400 300 320 200 300 100 0 80 85 90 Input Voltage (VAC) 264 275 -10 0 10 40 Ambient Temperature (°C) 50 60 70 06 July 2022 AC-DC FCM400 Models and Ratings
