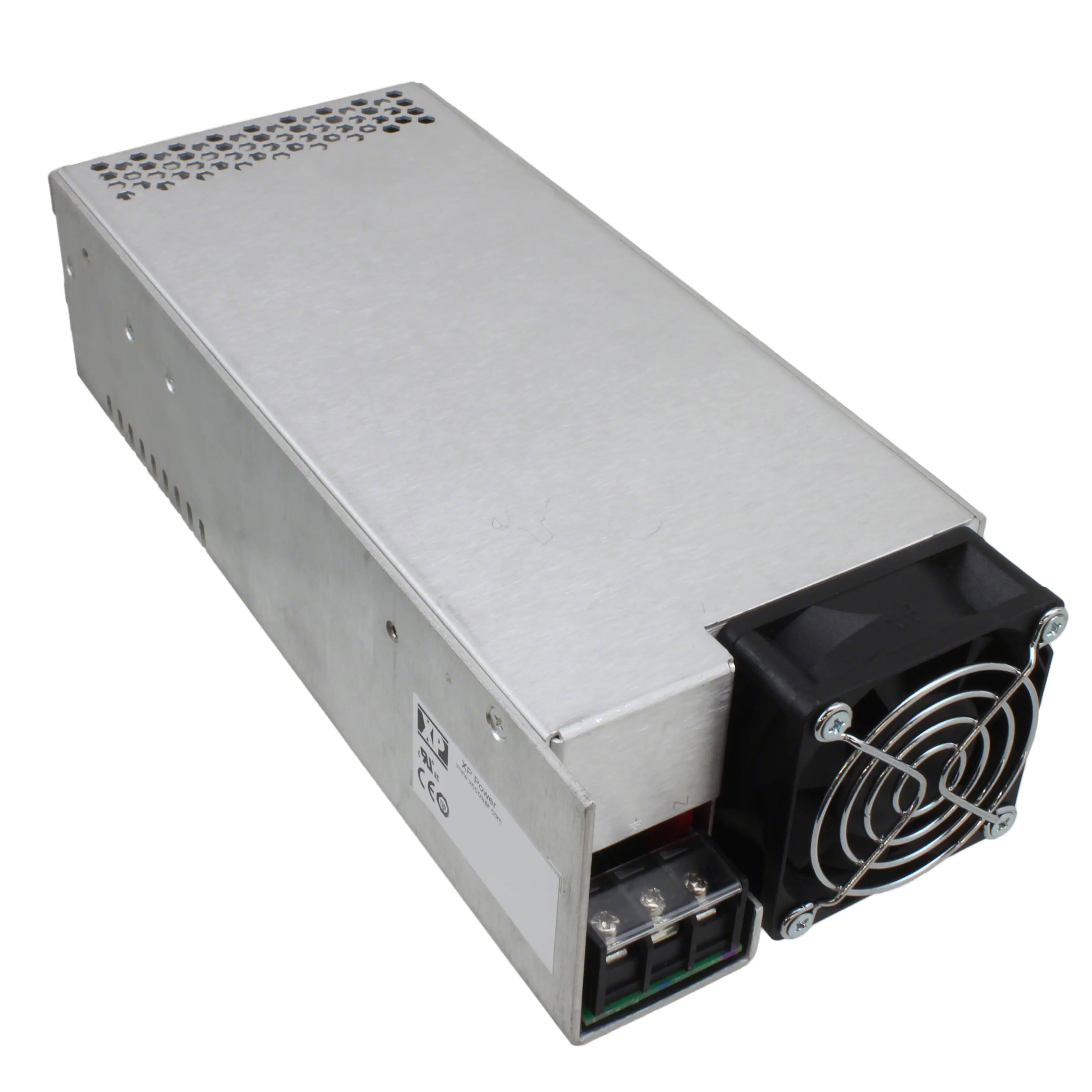

HHP650PS36

AC-DC 780 Watts xppower.com HHP Series • 85 V - 305 VAC Input • MIL Shock & Vibration / Conformal Coating • -40 °C to +70 °C Operation • SEMI F47 Compliant • 6 kV Surge Rating - IEEEStdC62.41 • UL508, UL1604 Class I, Div II • 3 Year Warranty Specification Input General Input Voltage • 80-305 VAC, derate output power 10% 0.9. Complies with EN61000-3-2 Class A Earth Leakage Current • 1.5 mA max 305 VAC/60 Hz Input Protection • Internal fuse in line Switching Frequency Power Density Signals MTBF • 85% typical • 3000 VAC input to output, 1500 VAC input to ground, 500 VAC output to ground • PFC 70 kHz, main converter 200 kHz, standby 130 kHz typical • 8.2 W/in3 • DC OK volt free relay, remote on/off, current share • 173 KHrs to MIL-HDBK-217F at 25 °C, GB Environmental Output Output Voltage Output Voltage Trim Initial Set Accuracy Minimum Load Start Up Delay Start Up Rise Time Hold Up Time Drift Line Regulation Load Regulation Transient Response • • • • • • • • • • • Ripple & Noise Overvoltage Protection Overload Protection Overtemperature Protection Short Circuit Protection Temp. Coefficient Remote Sense Remote On/Off • • • • Current Share Efficiency Isolation • • • • 12-48 VDC (see tables) ±10% V1 ±1% V1, ±5% V3 No minimum load required 500 ms max 50 ms typical 20 ms minimum at 90 VAC ±0.2% after 20 min warm up ±0.5% ±1% V1, ±5% V3 4% max. deviation, recovery to within 1% in 500 μs for a 50-75-50% load change 1% pk-pk V1, 20 MHz bandwidth 115-145% Vnom, recycle input to reset 110-140%, V1 only Auto reset Constant current characteristic 0.05% / °C Compensates for 0.5 V total voltage drop Uncommitted isolated optocoupler diode, powered diode inhibits V1 and fan supply • Single wire current share Operating Temperature • -40 °C to +70 °C, derate linearly from +50 °C at 2.5% / °C to 50% at +70 °C, see derating curve. Cooling • Forced cooled, via integral dual voltage level fan, which is load dependant. Operating Humidity • 95% RH, non-condensing Storage Temperature • -40 °C to +85 °C Operating Altitude • 3000 m Shock • 30 g pk, half sine, 6 axes EN60068-2-27, -2-47 & MIL-STD-810F 514.5 cat 4 Vibration • 2 g rms, 5-500 kHz, 3 axes EN60068-2-6 & MIL-STD-810F 516.5 cat 1 EMC & Safety Emissions Harmonic Currents Voltage Flicker ESD Immunity Radiated Immunity EFT/Burst Surge Conducted Immunity Dips & Interruptions Safety Approvals • EN55032 class B conducted EN55322 class A radiated • EN61000-3-2 class A • EN61000-3-3 • EN61000-4-2, level 3 contact, level 3 air, Perf Criteria A • EN61000-4-3, level 3 Perf Criteria A • EN61000-4-4, level 3 Perf Criteria A • EN61000-4-5, installation class 3, Perf Criteria A • IEEEStdC62.41-loc cat C1 6kV, 3 kA • EN61000-4-6, level 3, Perf Criteria A • EN61000-4-11, 30% 10 ms, 60% 100 ms, 100% 5000 ms, Perf Criteria A, B, B • SEMI F47 • IEC60950-1 CB report, CSA 22.2 No. 60950-1, UL60950-1, EN60950-1, UL508, UL1604, CE & UKCA meets all applicable directives & legislation Output Current V1 Output Voltage V1 Nom 180 V 50.0 A 40.0 A 27.0 A 32.5 A 23.0 A 27.9 A 18.0 A 21.7 A 13.5 A 16.3 A 12 V 15 V 24 V 28 V 36 V 48 V Standby Supply Peak(1) 180 V 33.3 A 41.7 A 28.6 A 35.7 A 22.2 A 27.8 A 16.7 A 20.8 A 5V 5V 5V 5V 5V 5V / / / / / / 0.2 0.2 0.2 0.2 0.2 0.2 A A A A A A Output Power V1 Nom 180 V 607 W 607 W 657 W 780 W 651 W 780 W 657 W 780 W 657 W 780 W Model Number Peak(1) 180 V 800 W 1000 W 800 W 1000 W 800 W 1000 W 800 W 1000 W HHP650PS12 HHP650PS15 HHP650PS24 HHP650PS28 HHP650PS36 HHP650PS48 AC-DC HHP650 Models and Ratings Notes 1. Peak Power available for 10 seconds maximum with a 35% duty cycle. The average power in a period should be equal or less than the nominal power. Mechanical Details VO+ Standard Terminal Block M3.5 Screw 3 Pins L 9.5mm Center Standard Terminal Block M4 Screw 6 Pins 9.5mm Center VO- N VR 2.50 (63.54) B LED 2.50 63.500 9.99 (253.80) PIN 11 PIN 12 PIN 1 PIN 2 A A Mounting hole 8 places M3 X 0.5 0.15(3.8) Max. Penetration A 1.95 (49.50) DETAIL B Logic Connector J3 A A A A 4.20 (106.77) C L 3.04 (77.30) 0.47 (11.90) 0.92 (23.30) 6.31 (160.30) Notes 1. Dimensions shown in inches (mm). 2. Weight: 2.8 lb (1.27 kg). 3. J1 Mating Plug: JST part no. PHR-2, contact: JST part no. SPH-002T-P0.5S; J2 Mating Plug: JST part no. PHDR-10VS, contact: 26-22AWG JST part no. SPHD-001T-P0.5 J3 Logic Connector (JST S12B-PHDSS) Pin Function 1 5 V Standby Return 2 DC OK normally closed 3 +5 V Standby 4 DC OK normally open 5 - Inhibit 6 + Inhibit 7 Current Share 8 Current Share 9 Signal GND 10 DC OK common 11 Signal GND 12 + Sense Derating Curve 50 0 -40 Some specification parameters may not be met Output Load (%) 100 -20 0 +50 +70 Ambient Temperature (ºC) 06 July 2022
