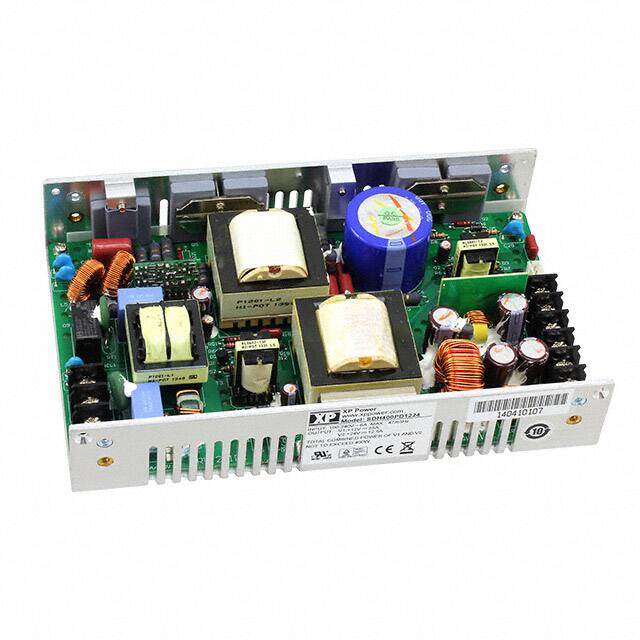

SDH400 AC-DC Power Supplies 400 Watts • Convection-cooled • Single and Dual Outputs • Up to 700 W Peak Power on Single Output Versions • Power Good and Remote On/Off • Optional Connectors • Fits 1U Applications • 3 Year Warranty The SDH400 series provide up to 400 W with only convection cooling in a low profile (1.6”) chassis mount format. Single outputs are available from 3.3 – 60 VDC and there are three dual output models offering combinations from 5V to 24 VDC. The full convection rating is available from 90 – 264 VAC input in ambient temperatures up to 50 °C providing power solutions for global use without the need for de-rating. All models comply with level B for both conducted and radiated emissions. Dimensions: SDH: 8.00 x 5.00 x 1.60” (203.0 x 127.0 x 40.64 mm) Models & Ratings Output 200 W 300 W 400 W 400 W 400 W 400 W 400 W 400 W 400 W 400 W 300 W 300 W 400 W Output 1(2) Output 2 Voltage 3.3 VDC 5.0 VDC 12.0 VDC 15.0 VDC 18.0 VDC 24.0 VDC 36.0 VDC 48.0 VDC 54.0 VDC 60.0 VDC +5.0 VDC +5.0 VDC +12.0 VDC Current 60.00 60.00 33.33 26.66 22.22 16.66 11.11 8.33 7.40 6.66 35.00 35.00 25.00 Voltage A A A A A A A A A A A A A Current +12.0 V +24.0 V +24.0 V 16.67 A 8.33 A 12.5 A Model Number (1) SDH400PS03(3) SDH400PS05(3) SDH400PS12 SDH400PS15(3) SDH400PS18(3) SDH400PS24 SDH400PS36(3) SDH400PS48 SDH400PS54(3) SDH400PS60(3) SDH400PD0512 SDH400PD0524 SDH400PD1224 Notes 1. Standard models have screw terminals, for optional Molex input terminals add suffix '-F-, for optional Molex output terminals add suffix '-G' and for optional Molex input and output terminals add suffix '-FG'. Molex output terminals are not available on 3V3 and 5V single output versions or 0512 and 0524 dual output versions. 2. Output peak power of 700 W for 500 µs is available on single output models. 3. Available for OEM quantities, contact sales. Summary Characteristic Input Range Minimum Typical 90 Maximum Units 264 VAC Signals Power Good Efficiency Operating Temperature Weight 1 Notes & Conditions 88 / 85 0 +70 2.42/1.1 % Single output / Dual output at 230 V and full load °C Derate at 2.5%/°C from +50 °C to +70 °C lb (kg) EMC EN55022 Level B Conducted & Radiated, EN61000-4, EN61000-3 Safety Approvals EN60950-1, UL60950-1, CSA22.2 No.60950-1 www.xppower.com SDH400 AC-DC Power Supplies Input Characteristic Minimum Input Voltage 90 Input Frequency 47 Typical Maximum Units 264 VAC 63 Hz Notes & Conditions Input Current 4.1 A 115 VAC (2.0 A at 230 VAC) Inrush Current 70 A 230 VAC (35 A at 115 VAC) Power Factor >0.9 Earth Leakage Current
