RoHS
1N4001G THRU 1N4007G
COMPLIANT
General Purpose Rectifier
Features
● High efficiency
● High current capability
● High reliability
● High surge current capability
● Low power loss
● Glass passivated chip junction
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Mechanical Data

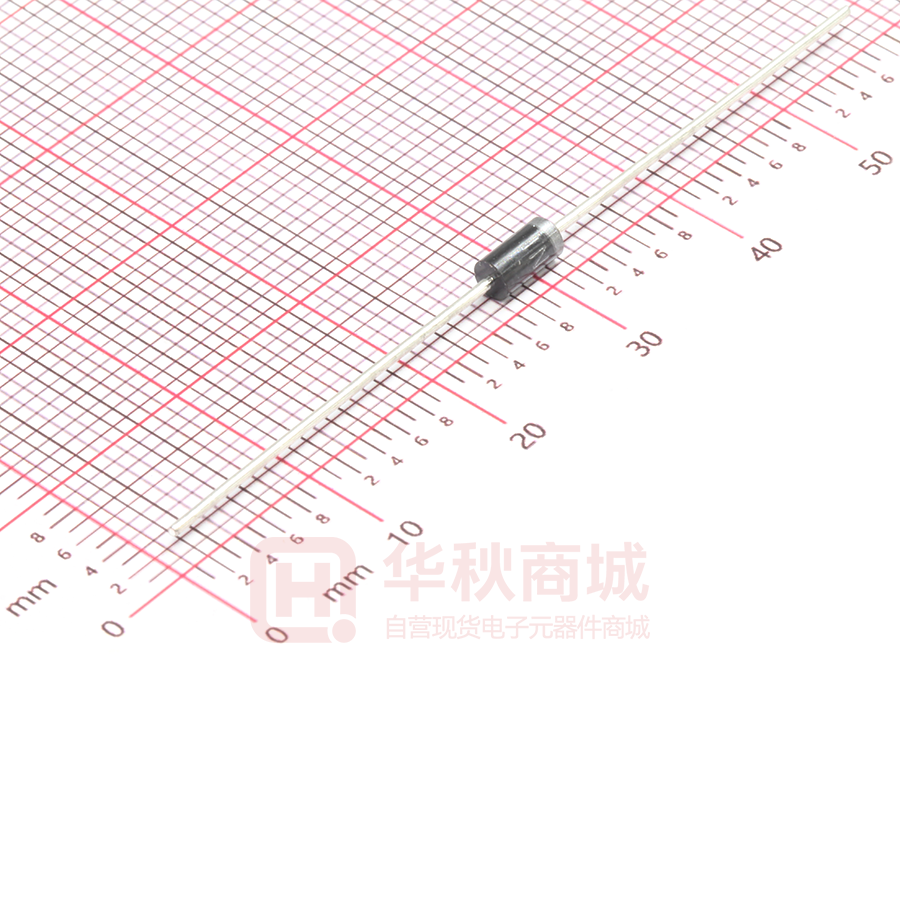

● Package: DO-204AL(DO-41)
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity:Color band denotes cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
1N4001G
1N4002G
1N4003G
1N4004G
1N4005G
1N4006G
1N4007G
1N4001G
1N4002G
1N4003G
1N4004G 1N4005G
1N4006G
1N4007G
50
100
200
800
1000
Repetitive Peak Reverse Voltage
VRRM
V
Average Forward Current
@60Hz sine wave, Resistance load, Ta =85℃
IF(AV)
A
1.0
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Ta=25℃
IFSM
A
30
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
-55~+150
400
600
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
SYMBOL
UNIT
TEST CONDITIONS
1N4001G 1N4002G 1N4003G 1N4004G 1N4005G 1N4006G 1N4007G
Maximum instantaneous
forward voltage drop per diode
VFM
V
IFM =1.0A
1.1
Maximum DC reverse current
at rated DC blocking voltage
per diode
IRRM1
Ta=25℃
2.5
Ta=100℃
50
Measured at 1MHZ
and Applied Reverse
Voltage of 4.0 V.D.C.
8
PARAMETER
Typical junction capacitance
μA
IRRM2
Cj
pF
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Thermal Resistance(Typical)
RθJ-A
℃/W
1N4001G
1N4002G
1N4003G
1N4004G
1N4005G
1N4006G
1N4007G
60
1/4
S-A016
Rev.2.1,28-Apr-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4001G THRU 1N4007G
■Ordering Information (Example)
PREFERED P/N
PACKAGE
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
1N4001G~1N4007G
D1
Approximate 0.27
Approximate 5000
5000
50000
Tape
1N4001G~1N4007G
C1
Approximate 0.27
Approximate 1000
1000
50000
Bulk
■ Characteristics (Typical)
FIG.1: Io-Ta Curve
FIG.2: Forward Surge Current Capability
30
Peak Forward Surge Current (A)
Average Forward Output Current (A)
1.0
0.8
0.6
0.4
0.2
Single Phase
Half Wave 60HZ
Resistive or
Inductive Load
0.375''(9.5mm)
Lead Length
24
8.3ms Single Half Sine Wave
JEDEC Method
18
12
6
0
0
0
50
1
150
100
2
4
6
8 10
20
40
60 80 100
Number of Cycles
Ambient Temperature (℃)
FIG.3: Forward Voltage
FIG.4: Typical Reverse Characteristics
20
100
Instantaneous Reverse Current (uA)
Instantaneous Forward Current (A)
10
4.0
2.0
1.0
0.4
0.2
0.1
TJ=25℃
Pulse width=300us
1% Duty Cycle
Tj=125℃
10
Tj=100℃
1.0
0.1
Tj=25℃
0.01
0.02
0.01
0.6
0.001
0.8
1.0
1.2
1.4
1.6
1.8
0
2.0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Instantaneous Forward Voltage (V)
2/4
S-A016
Rev.2.1,28-Apr-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4001G THRU 1N4007G
■ Outline Dimensions
DO-204AL(DO-41)
DO-204AL(DO-41)
Dim
Min
Max
A
4.22
5.21
B
C
2.03
2.72
25.4
/
D
0.69
0.86
Dimensions in millimeters
3/4
S-A016
Rev.2.1,28-Apr-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4001G THRU 1N4007G
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-A016
Rev.2.1,28-Apr-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
