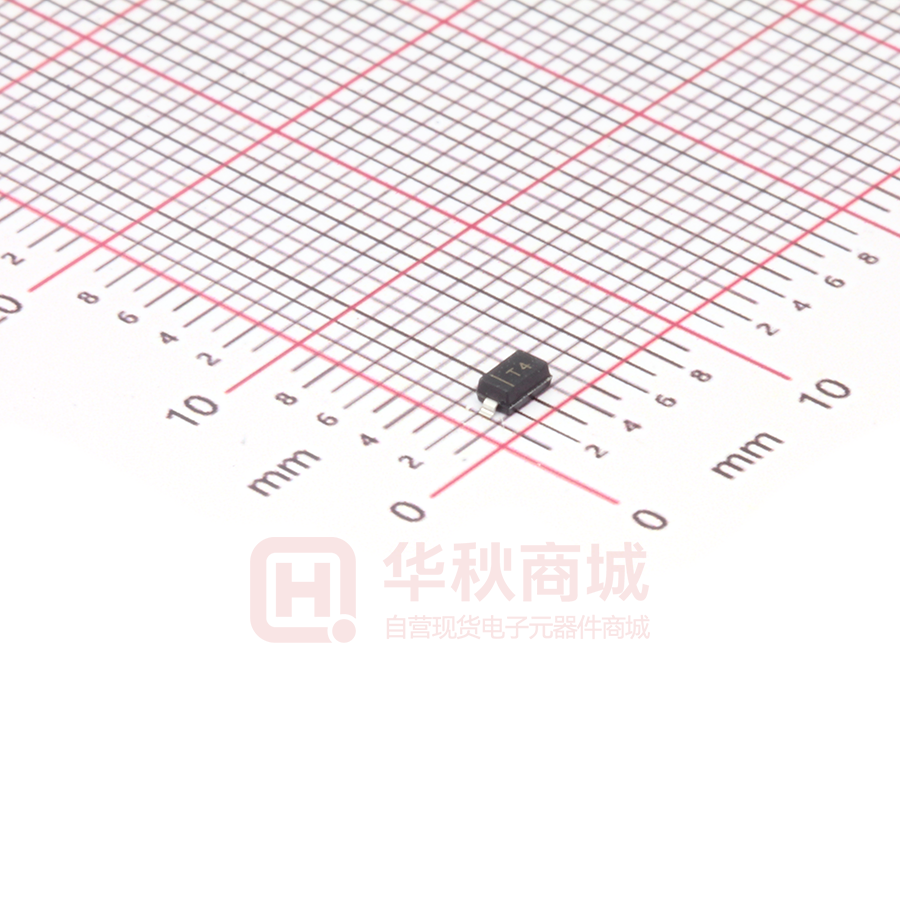

1N4148W
COMPLIANT
Small-Signal Fast Switching Diodes
Features
●VR 75V
●IFAV 150mA
Typical Applications
● Extreme fast switches
Mechanical Data
● Package: SOD123
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
● Marking: T4
■ Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
Repetitive peak reverse voltage
Conditions
UNIT
VALUE
VRRM
V
100
Reverse voltage
VR
V
75
Peak forward surge current
IFSM
A
Repetitive peak forward current
IFRM
mA
300
Average forward current
IFAV
mA
150
Power dissipation
Ptot
mW
400
Tj
℃
-65 ~+150
Tstg
℃
-65 ~+150
RθJA
℃/W
315
Maximum junction temperature
Storage temperature range
Thermal Resistance Junction to Ambient Air
Pulse width=1 us
Pulse width=1 s
2
0.5
■ Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Symbol
UNIT
Conditions
Min
Max
Breakdown Voltage
VR
V
IR=10uA
Forward Voltage
VF
V
IF=10mA
IF=100mA
IR1
nA
VR=20V
25
IR2
uA
VR=75V
1
Capacitance
C
pF
VR=0V,f=1MHz
4
Reverse Recovery Time
Trr
ns
IF=IR=10mA,Irr=0.1*IR,
RL=100Ω
4
100
1.00
1.25
Reverse Leakage Current
1/4
S-S283
Rev. 2.5, 25-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4148W
■ Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
1N4148W
F2
Approximate 0.011
3000
INNER BOX
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs) QUANTITY(pcs)
30000
120000
7” reel
■ Characteristics (Typical)
2/4
S-S283
Rev. 2.5, 25-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4148W
■ Outline Dimensions
■ Soldering Footprint
Unit: inch
3/4
S-S283
Rev. 2.5, 25-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
1N4148W
