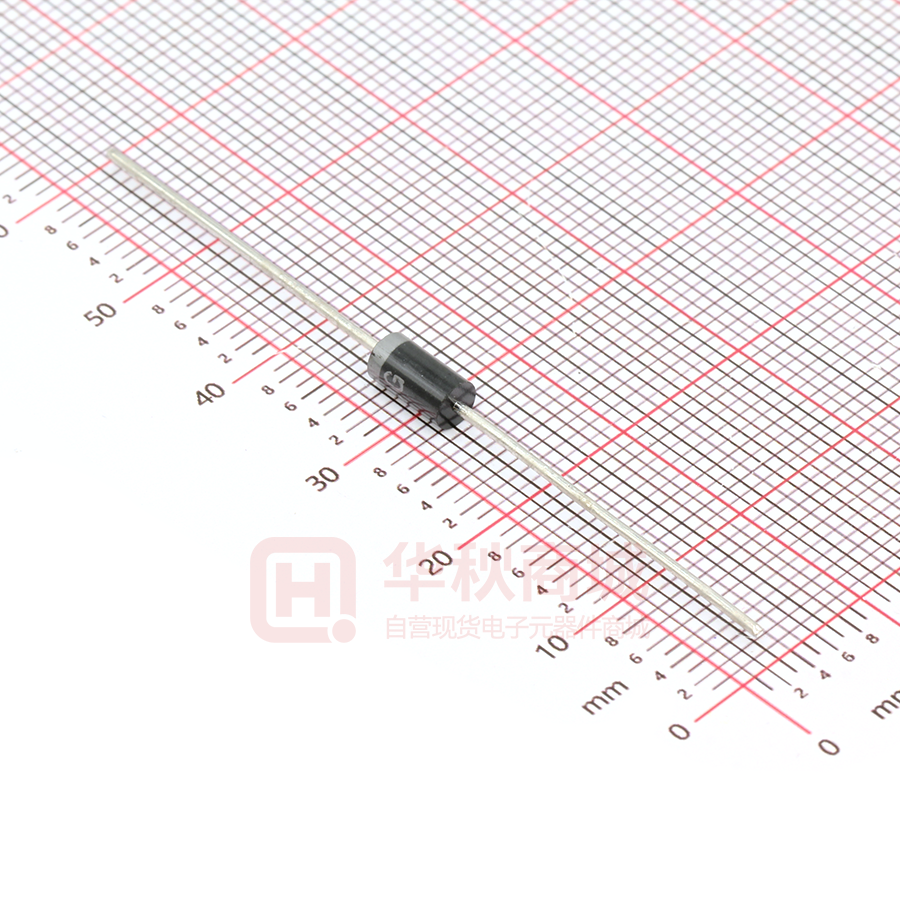

1N5399G

RoHS 1N5391G THRU 1N5399G COMPLIANT General Purpose Rectifier Features ● High efficiency ● High current capability ● High reliability ● High surge current capability ● Low power loss ● Glass passivated chip junction ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data ● Package: DO-204AC(DO-15) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity:Color band denotes cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code 1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G 1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G 50 100 200 400 600 800 1000 Repetitive Peak Reverse Voltage VRRM V Average Forward Current @60Hz sine wave, Resistance load, Ta =50℃ IF(AV) A 1.5 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 50 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55~+150 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Maximum instantaneous forward voltage drop per diode VFM V Maximum DC reverse current at rated DC blocking voltage per diode IRRM1 Typical junction capacitance TEST CONDITIONS 1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G IFM =1.5A 1.1 Ta=25℃ 2.5 Ta=100℃ 50 Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 15 μA IRRM2 Cj pF ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Thermal Resistance(Typical) RθJ-A ℃/W 1N5391G 1N5392G 1N5393G 1N5395G 1N5397G 1N5398G 1N5399G 50 1/4 S-A025 Rev.2.1,28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5391G THRU 1N5399G ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE 1N5391G~1N5399G D1 Approximate 0.38 3000 3000 30000 Tape 1N5391G~1N5399G C1 Approximate 0.38 500 500 25000 Bulk ■ Characteristics (Typical) FIG.1: Io-Ta Curve FIG.2: Forward Surge Current Capability 50 Peak Forward Surge Current (A) Average Forward Output Current (A) 1.5 1.2 0.9 0.6 0.3 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 40 8.3ms Single Half Sine Wave JEDEC Method 30 20 10 0 0 0 50 1 150 100 2 4 Ambient Temperature (℃) 8 10 20 40 60 80 100 FIG.4: Typical Reverse Characteristics FIG.3: Forward Voltage 100 20 Instantaneous Reverse Current (uA) 10 Instantaneous Forward Current (A) 6 Number of Cycles 4.0 2.0 1.0 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle Tj=125℃ 10 Tj=100℃ 1.0 0.1 Tj=25℃ 0.01 0.02 0.01 0.6 0.001 0.8 1.0 1.2 1.4 1.6 1.8 0 2.0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) Instantaneous Forward Voltage (V) 2/4 S-A025 Rev.2.1,28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5391G THRU 1N5399G ■ Outline Dimensions DO-204AC(DO-15) DO-204AC(DO-15) Dim Min Max A 5.80 7.60 B C 2.60 3.60 25.4 / D 0.70 0.90 Dimensions in millimeters 3/4 S-A025 Rev.2.1,28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5391G THRU 1N5399G Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A025 Rev.2.1,28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
