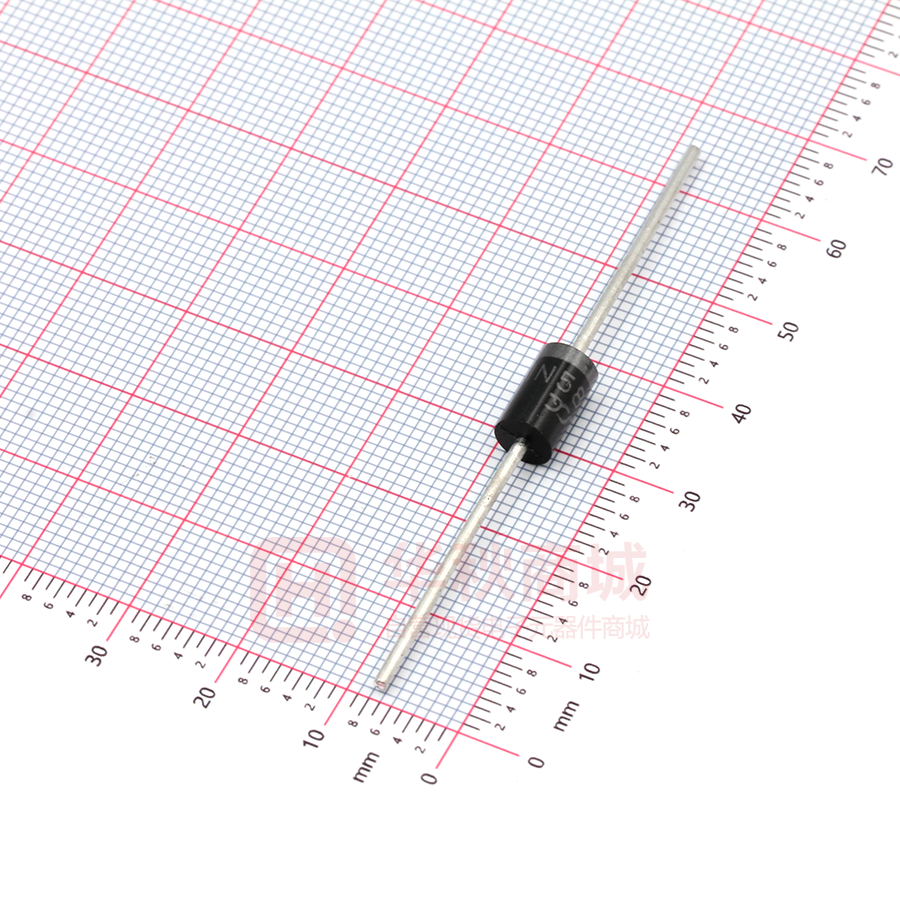

1N5822

RoHS 1N5820 THRU 1N5822 COMPLIANT Schottky Barrier Rectifier Features ● Guardring for overvoltage protection ● Low power loss ● Extremely fast switching ● High forward surge capability ● High frequency operation ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data ● Package: DO-201AD(DO-27) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102 ● Polarity: Color band denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code 1N5820 1N5821 1N5822 1N5820 1N5821 1N5822 20 30 40 VRRM V IO A 3.0 Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 80 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+125 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, Resistance load, Ta (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Maximum instantaneous forward voltage drop per diode VF V Maximum DC reverse current at rated DC blocking voltage per diode IR mA Typical junction capacitance Cj pF TEST CONDITIONS 1N5820 1N5821 1N5822 IFM =3.0A 0.475 0.5 0.525 Ta=25℃ 0.2 Ta=100℃ 20 Measured at 1MHZ and Applied Reverse Voltage of 4.0 V.D.C. 180 1/4 S-A031 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5820 THRU 1N5822 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Thermal Resistance RθJ -A ℃/W 1N5820 1N5821 1N5822 25 ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE 1N5820~1N5822 D1 Approximate 0.950 1250 1250 12500 Tape 1N5820~1N5822 C1 Approximate 0.950 250 250 12500 Bulk ■ Characteristics(Typical) FIG.1: Io-Ta Curve FIG.2: Forward Surge Current Capability 80 Peak Forward Surge Current (A) Average Forward Output Current (A) 3.0 2.4 1.8 1.2 Single Phase Half Wave 60HZ Resistive or Inductive Load 0.375''(9.5mm) Lead Length 0.6 60 8.3ms Single Half Sine Wave JEDEC Method 40 20 0 0 0 100 100 50 150 1 2 6 8 10 20 40 60 80 100 Number of Cycles Ambient Temperature (℃) FIG.3: Forward Voltage FIG.4: Typical Reverse Characteristics 100 20 N5 82 2 21 1N 58 1N 5 -1 82 0 4.0 2.0 Instantaneous Reverse Current (mA) 10 Instantaneous Forward Current (A ) 4 1.0 0.4 0.2 0.1 TJ=25℃ Pulse width=300us 1% Duty Cycle 10 Tj=100℃ 1.0 0.1 Tj=25℃ 0.01 0.02 0.01 0.2 0.001 0.3 0.4 0.5 0.6 0.7 0.8 0 0.9 Instantaneous Forward Voltage (V) 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-A031 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5820 THRU 1N5822 ■ Outline Dimensions DO-201AD(DO-27) DO-201AD(DO-27) Dim Min Max A 8.50 B C 5.00 9.50 5.60 25.4 / D 1.20 1.30 Dimensions in millimeters 3/4 S-A031 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com 1N5820 THRU 1N5822 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-A031 Rev. 2.1, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
