RoHS
COMPLIANT

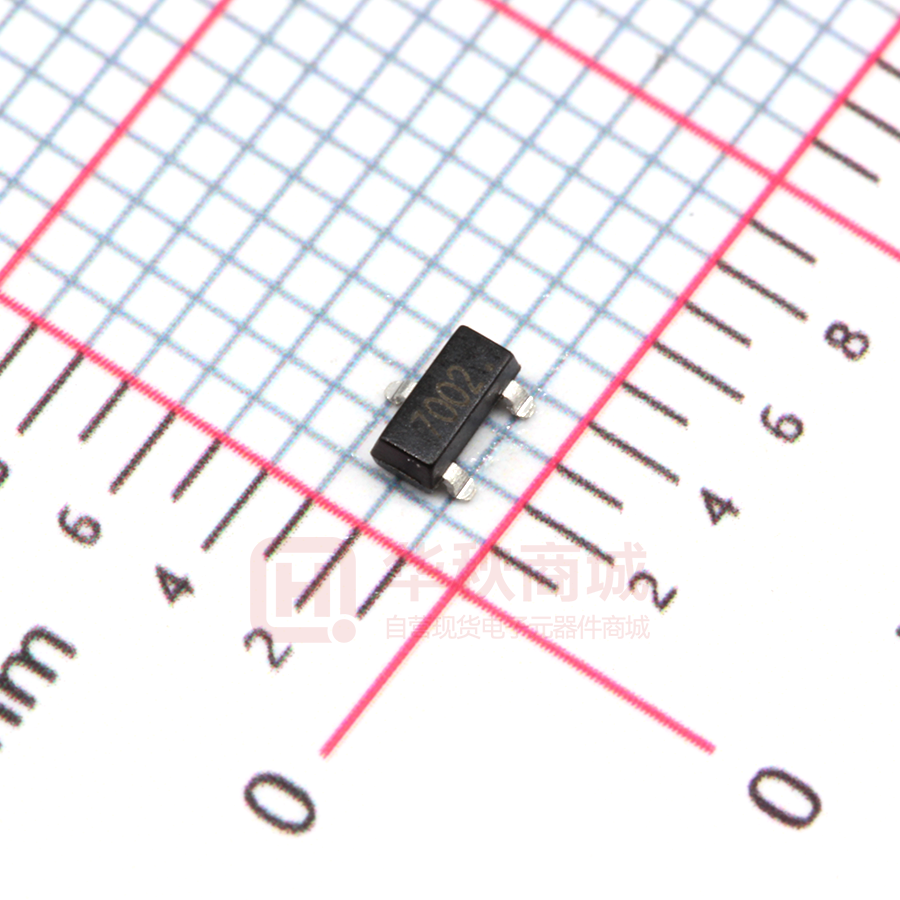

2N7002
N-Channel Enhancement Mode Field Effect Transistor
Product Summary
● VDS
● ID
● RDS(ON)( at VGS=10V)
● RDS(ON)( at VGS=4.5V)
60V
340mA
<2.5ohm
<3.0ohm
General Description
● Trench Power MV MOSFET technology
● Voltage controlled small signal switch
● Low input Capacitance
● Fast Switching Speed
● Low Input / Output Leakage
Applications
● Battery operated systems
● Solid-state relays
● Direct logic-level interface:TTL/CMOS
■ Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Parameter
Symbol
Limit
Drain-source Voltage
VDS
60
V
Gate-source Voltage
VGS
±20
V
TA=25℃ @ Steady State
Drain Current
340
ID
TA=70℃ @ Steady State
Unit
mA
272
Pulsed Drain Current A
IDM
1.5
A
Total Power Dissipation @ TA=25℃
PD
350
mW
RθJA
357
℃/ W
TJ ,TSTG
-55~+150
℃
Thermal Resistance Junction-to-Ambient @ Steady State B
Junction and Storage Temperature Range
■ Ordering Information (Example)
PREFERED P/N
PACKING
CODE
Marking
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
2N7002
F2
7002.
3000
30000
120000
7“ reel
1/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
2N7002
■ Electrical Characteristics (TJ=25℃ unless otherwise noted)
Parameter
Symbol
Conditions
Min
Typ
Max
Units
Drain-Source Breakdown Voltage
BVDSS
VGS= 0V, ID=250μA
60
Zero Gate Voltage Drain Current
IDSS
VDS=60V,VGS=0V
1
μA
IGSS1
VGS= ±20V, VDS=0V
±100
nA
IGSS2
VGS= ±10V, VDS=0V
±50
nA
Gate Threshold Voltage
VGS(th)
VDS= VGS, ID=250μA
1.5
2.5
V
VGS= 10V, ID=-300mA
1.2
2.5
Static Drain-Source On-Resistance
RDS(ON)
VGS= 4.5V, ID=200mA
1.3
3.0
Static Parameter
V
Gate-Body Leakage Current
Diode Forward Voltage
Maximum Body-Diode Continuous Current
1
Ω
VSD
IS=300mA,VGS=0V
IS
1.2
V
340
mA
Dynamic Parameters
Input Capacitance
Ciss
Output Capacitance
Coss
Reverse Transfer Capacitance
Crss
16
VDS=30V,VGS=0V,f=1MHZ
10
pF
5.5
Switching Parameters
Total Gate Charge
Turn-on Delay Time
Qg
VGS=10V,VDS=30V,ID=0.3A
tD(on)
1.7
Reverse recovery Time
tD(off)
trr
nC
5
VGS=10V,VDD=30V, ID=300mA,
RGEN=6Ω
Turn-off Delay Time
2.4
ns
17
VGS=0V,IS=300mA,VR=25V, dIS/dt=100A/μs
30
ns
A. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%.
B. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch.
2/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
2N7002
■ Typical Performance Characteristics
Figure1. Output Characteristics
Figure2. Transfer Characteristics
Figure3. Capacitance Characteristics
Figure4. Gate Charge
Figure5. Drain-Source on Resistance
Figure6. Drain-Source on Resistance
3/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
2N7002
Figure7. Safe Operation Area
Figure8. Switching wave
4/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
2N7002
■ SOT-23 Package information
■SOT-23 Suggested Pad Layout
5/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
2N7002
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
6/6
S-S1631
Rev.2.0,25-Dec-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
