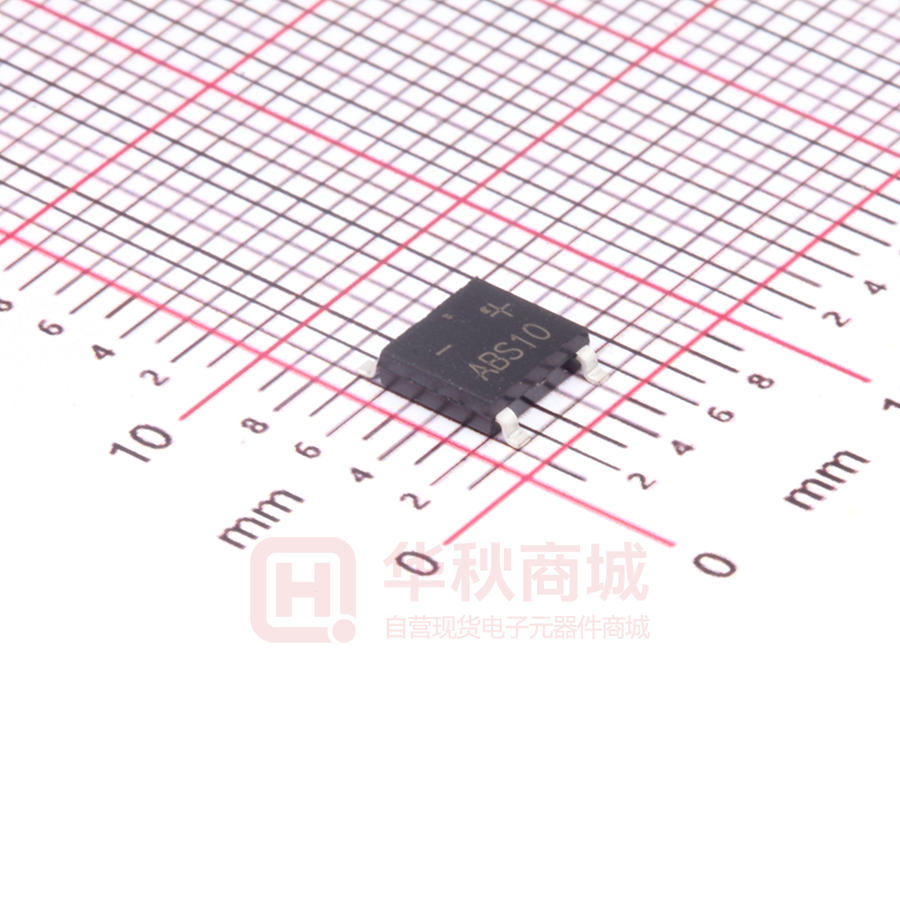

ABS10

RoHS ABS2 THRU ABS10  COMPLIANT   Bridge Rectifiers Features ● UL recognition, file #E313149 ● Ideal for automated placement ● High surge current capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballast, adapter, battery charger, home appliances, office equipment, and telecommunication applications. Mechanical Data ● Package: ABS Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, Halogen free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body　   ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code ABS2 ABS4 ABS6 ABS8 ABS10 ABS2 ABS4 ABS6 ABS8 ABS10 200 400 600 800 1000 ABS8 ABS10 VRRM V IO A 1.0 IFSM A 35 I2t A2s 5 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, R-load, Ta=40℃,on Alumina Substrate Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t
