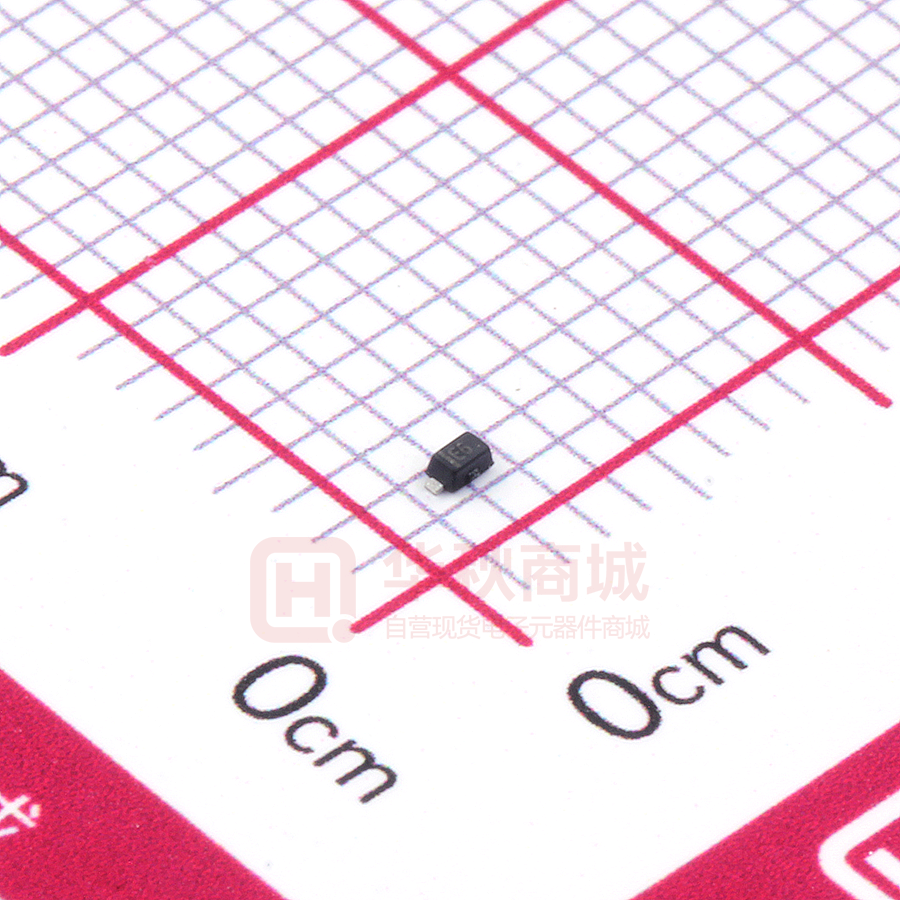

BAS16X
RoHS
COMPLIANT
Small-Signal Fast Switching Diodes
Features
● VR 75V
● IFAV 200mA
Typical Applications
● Extreme fast switches
Mechanical Data
● Package: SOD523
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
●Marking: E6
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Conditions
VALUE
IR=100uA
75
Reverse voltage
VR
V
Peak forward surge current
IFSM
A
Average forward current
IFAV
mA
200
Power dissipation
PD
mW
150
Maximum junction temperature
Tj
℃
-55 to +150
Tstg
℃
-55 to +150
Storage temperature range
Pulse width=1 us
Pulse width=1 s
2
0.5
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Symbol
UNIT
VR
V
VF
IR
Conditions
IR=100uA
Min
Max
75
IF=1mA
0.715
IF=10mA
0.855
IF=50mA
1.00
IF=150mA
1.25
V
uA
VR=75V
1
Capacitance
C
pF
VR=0V,f=1MHz
4
Reverse Recovery Time
Trr
ns
IF=IR=10mA,Irr=0.1*IR,
RL=100Ω
6
1/4
S-S3231
Rev.1.1,21-Mar-22
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS16X
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
BAS16X
F2
Approximate 0.002
8000
INNER BOX
QUANTITY(pcs)
80000
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
320000
7” reel
■ Characteristics (Typical)
2/4
S-S3231
Rev.1.1,21-Mar-22
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS16X
■ SOD-523 Package Outline Dimensions
SOD-523
1.50(0.059)
1.70(0.067)
0.70(0.028)
0.90(0.035)
0.25(0.010)
0.35(0.014)
1.10(0.043)
1.30(0.051)
0.05(0.002)
0.20(0.008)
0.50(0.020)
0.70(0.028)
■ SOD-523 Soldering Footprint
Unit:mm
3/4
S-S3231
Rev.1.1,21-Mar-22
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS16X
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S3231
Rev.1.1,21-Mar-22
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
