BAS316
RoHS
COMPLIANT
High Speed Switching Diode
Features
● VR 100V
● IFAV 250mA
Typical Applications
● Extreme fast switches
Mechanical Data

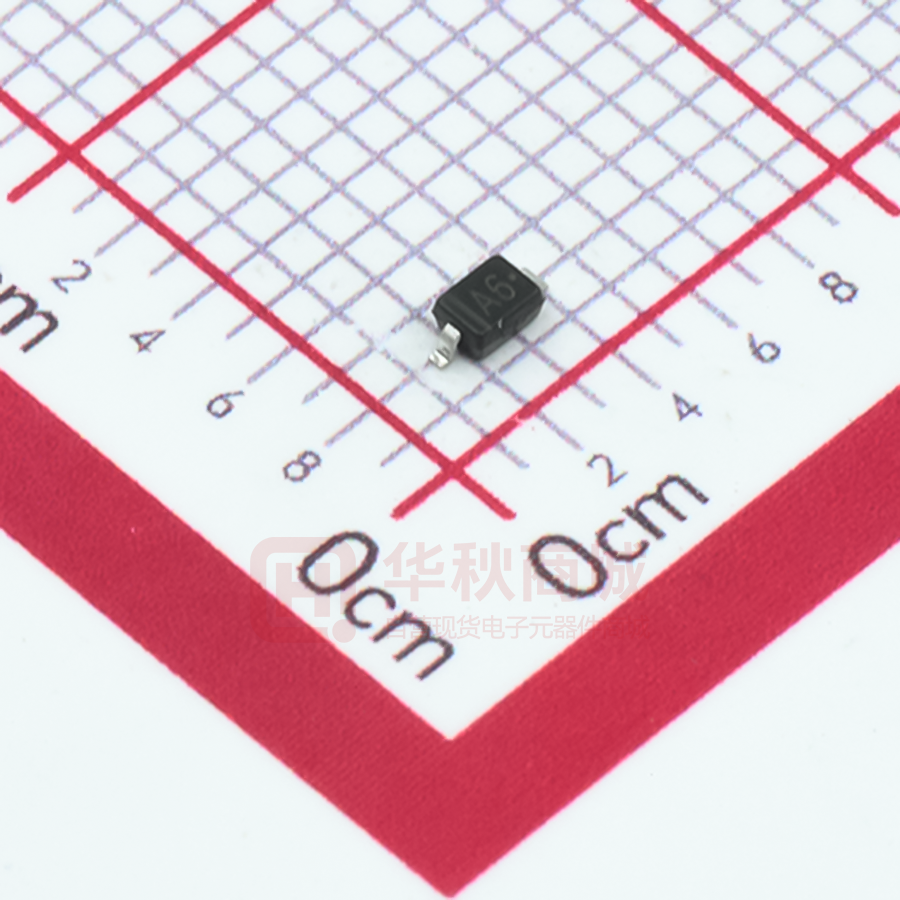

● Package: SOD323
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
●Marking: A6·
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
Conditions
UNIT
VALUE
Repetitive peak reverse voltage
VRRM
V
Peak forward surge current
IFSM
A
Average forward current
IFAV
mA
250
Power dissipation
Ptot
mW
200
RthJA
K/W
625
Tj
℃
-55 to +150
Tstg
℃
-55 to +150
Thermal Resistance
Maximum junction temperature
Storage temperature range
100
tp=1μs
2
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
Maximum Forward voltage
SYMBOL
VF
Conditions
UNIT
Min
Max
IF=1mA
0.715
IF=10mA
0.855
IF=50mA
1.00
IF=150mA
1.25
V
IR
nA
VR=20V
25
IR
μA
VR=75V
1.0
Maximum Reverse current
1/4
S-S1484
Rev.1.1, 24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS316
Minimum Breakdown voltage
VR
V
IR=100μA
Maximum Diode capacitance
CD
pF
VR=VF=0V, f =1MHZ
4
Maximum Reverse recovery time
trr
ns
IF=50mA,Irr=0.1IR,RL=100Ω
4
100
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
BAS316
F2
Approximate 0.004
3000
30000
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs)
120000
7” reel
■ Characteristics (Typical)
2/4
S-S1484
Rev.1.1, 24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS316
■ Outline Dimensions
■ Soldering Footprint
Unit:inches
3/4
S-S1484
Rev.1.1, 24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS316
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S1484
Rev.1.1, 24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
