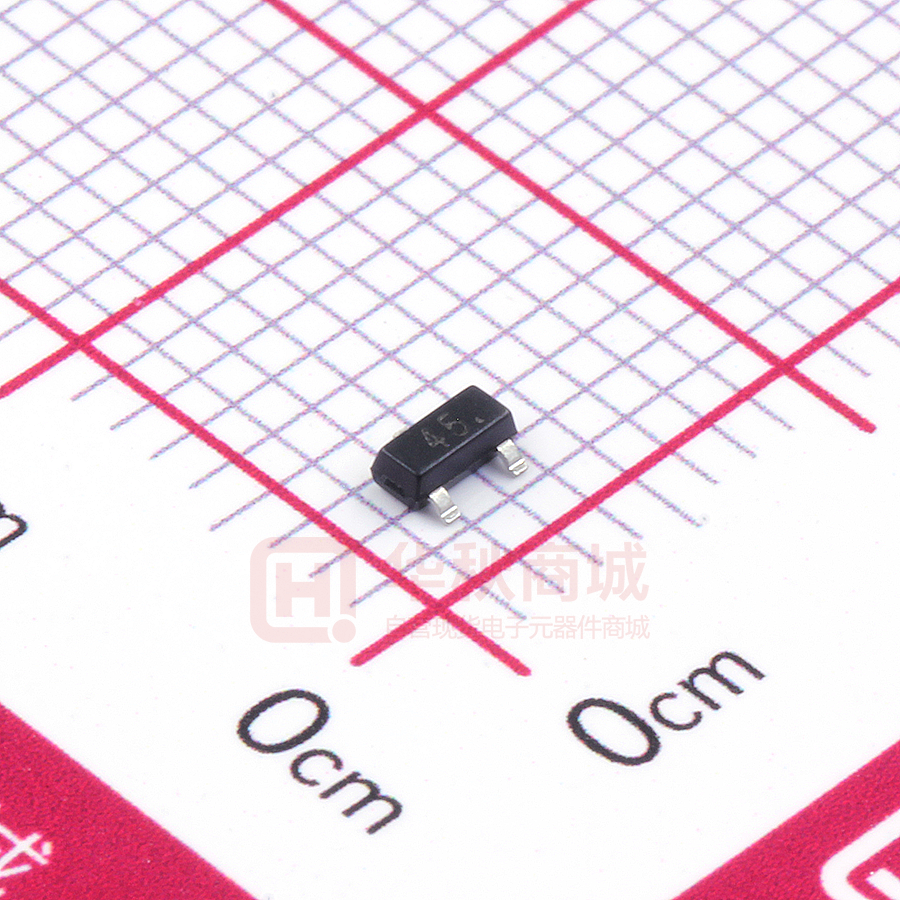

BAS40-05

RoHS BAS40-04 THRU BAS40-06   COMPLIANT   Schottky Barrier Diode Features ●Epoxy meets UL-94 V-0 flammability rating ●Moisure Sensitivity Level 1 ●Low Forward Voltage ●Surface Mount device Marking BAS40 BAS40-04 BAS40-05 BAS40-06 43 44 45 46 ■Maximum Rating, (Ta=25℃ Unless otherwise specified) Item Symbol Peak repetitive peak reverse voltage Working peak reverse voltage DC Blocking voltage Value Unit VRRM VRWM VR 40 V Forward continuous current IFM 200 mA Power dissipation PD 200 mW RθJA 500 ℃/W TJ 125 ℃ Thermal resistance junction to ambient Junction temperature ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) BAS40 THRU BAS40-06 F2 Approximate 0.008 3000 30000 OUTER CARTON DELIVERY MODE QUANTITY(pcs) 120000 7” reel 1/4 S-S1602 Rev.1.1,24-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS40-04 THRU BAS40-06     ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） Parameter Symbol Reverse breakdown voltage Reverse voltage leakage current Test conditions Min Max 40 Unit V(BR) IR=10μA V IR VR=30V 200 nA Forward voltage VF IF=1 mA IF=40mA 380 1000 mV Diode cap acitance Cj VR=0V f=1MHz 5 pF Reveres recovery time trr Irr=0.5mA, IR=IF=5mA RL=100Ω 5 ns ■ Typical Characteristics 2/4 S-S1602 Rev.1.1,24-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS40-04 THRU BAS40-06     ■SOT-23 Package Outline Dimensions ■SOT-23Suggested Pad Layout 3/4 S-S1602 Rev.1.1,24-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS40-04 THRU BAS40-06     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S1602 Rev.1.1,24-Jan-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
