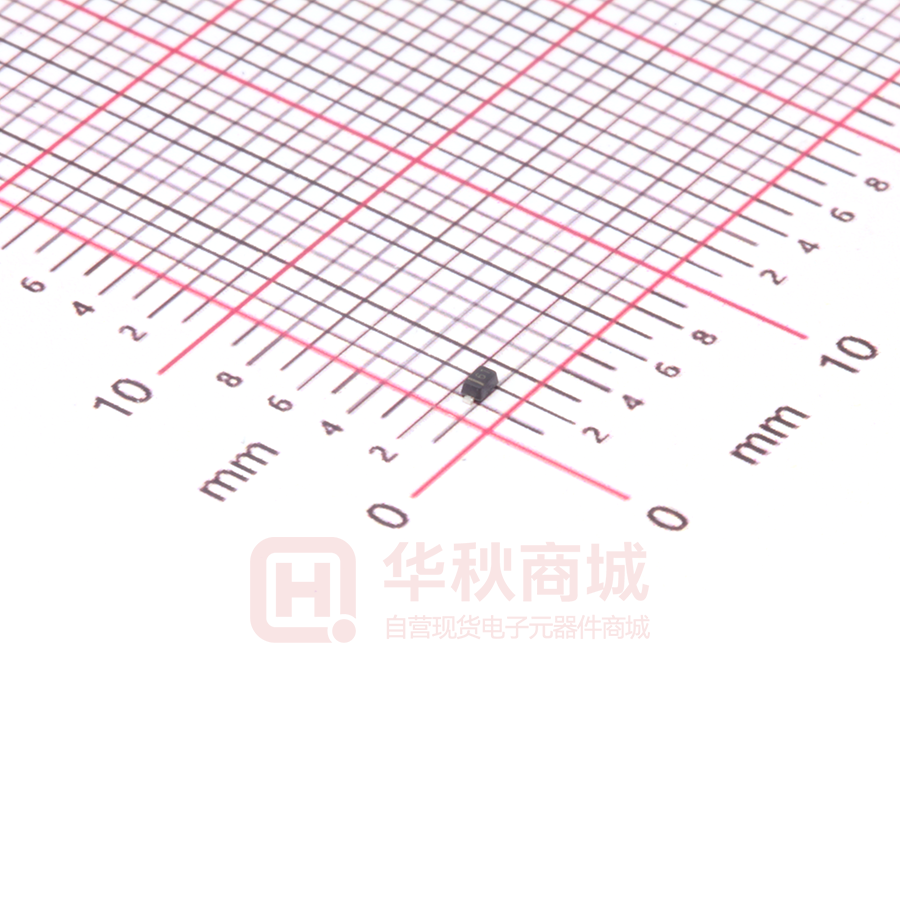

BAS516

BAS516 RoHS   COMPLIANT   Small-Signal Fast Switching Diodes Features ● VR 100V ● IFAV 250mA Typical Applications ● Extreme fast switches Mechanical Data ● Package: SOD523 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ●Marking: 61 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL Repetitive peak reverse voltage Conditions UNIT VALUE VRRM V Reverse voltage VR V IR=100uA 100 Peak forward surge current IFSM A Pulse width=1 us Pulse width=1 s 2 1 Non-repetitive peak forward surge current IFSM A 8.3ms half sine-wave 1 Average forward current IFAV mA 250 Power dissipation PD mW 150 Maximum junction temperature Tj ℃ -55 to +150 Tstg ℃ -55 to +150 Storage temperature range 100 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Breakdown Voltage Forward Voltage Symbol UNIT VR V VF Conditions IR=100uA Min Max 100 IF=1mA 0.715 IF=10mA 0.855 IF=50mA 1.00 IF=150mA 1.25 V IR1 nA VR=25V 30 IR2 uA VR=75V 1 Capacitance C pF VR=0V,f=1MHz 4 Reverse Recovery Time Trr ns IF=IR=10mA，Irr=0.1*IR, RL=100Ω 4 Reverse Leakage Current 1/4 S-S1485 Rev.1.1, 28-Dec-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS516     ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) BAS516 F2 Approximate 0.002 8000 INNER BOX QUANTITY(pcs) 80000 OUTER CARTON QUANTITY(pcs) DELIVERY MODE 320000 7” reel ■ Characteristics (Typical) 2/4 S-S1485 Rev.1.1, 28-Dec-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS516     ■ SOD-523 Package Outline Dimensions SOD-523 1.50(0.059)  1.70(0.067)  0.70(0.028) 0.90(0.035) 0.25(0.010)  0.35(0.014)  1.10(0.043)  1.30(0.051)  0.05(0.002)  0.20(0.008)  0.50(0.020) 0.70(0.028) ■ SOD-523 Soldering Footprint Unit:mm 3/4 S-S1485 Rev.1.1, 28-Dec-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAS516     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S1485 Rev.1.1, 28-Dec-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
