RoHS
BAT54W
COMPLIANT
Schottky Rectifier
Features
● VR 30V
● IFAV 0.2A
Moisture Sensitivity Level 1
Mechanical Data

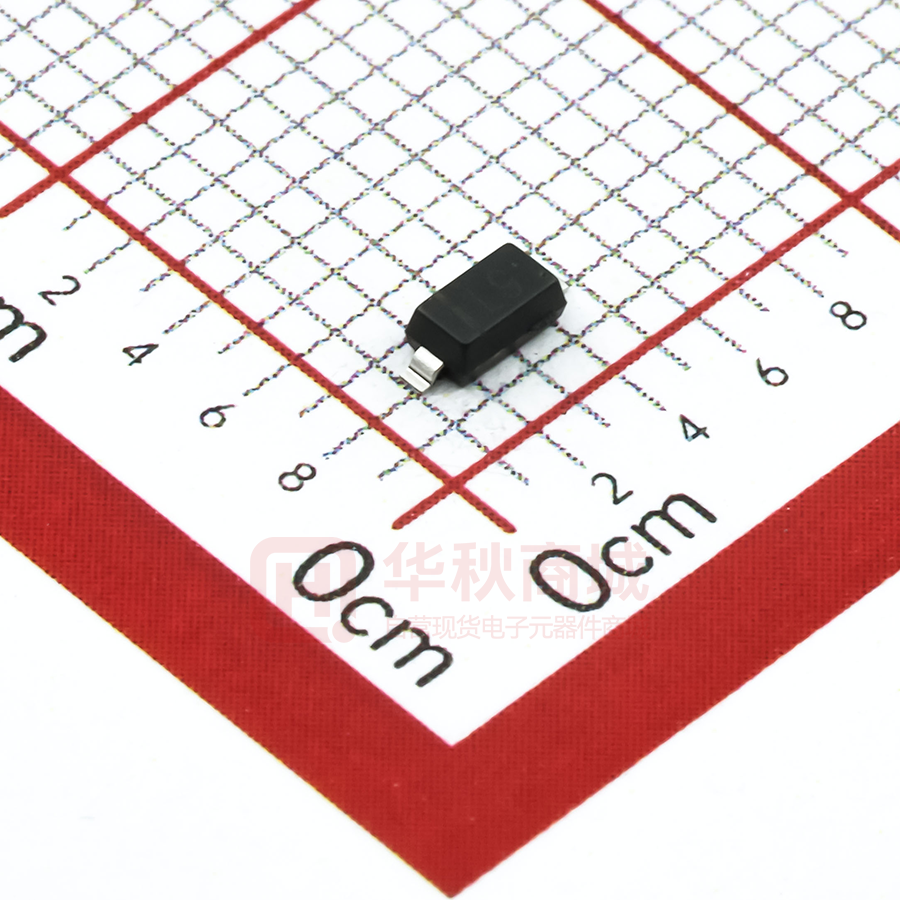

● Package: SOD123G
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
● Marking: L9
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
Maximum Recurrent Peak Reverse Voltage
VALUE
UNIT
VRRM
V
30
DC Blocking Voltage
VR
V
30
Peak forward surge current (8.3ms, half sine)
IFSM
A
0.6A
Average forward current
IFAV
A
0.2
Power dissipation
Ptot
mW
500
Tj
℃
-55 to +125
Tstg
℃
-55 to +150
Maximum junction temperature
Storage temperature range
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
BAT54W
F2
Approximate 0.011
3000
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
120000
7” reel
30000
■Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Breakdown Voltage
Forward Voltage
Reverse Leakage Current
Typical Junction Capacitance
Symbol
UNIT
Conditions
Min
VR
V
IR=100uA
30
VF
V
Typ
Max
IF=0.1mA
0.24
IF=1mA
0.32
IF=10mA
0.4
IF=30mA
0.5
IF=100mA
1.0
IR
uA
VR=25V
2
CJ
pF
VR=1V,f=1MHz
10
1/4
S-S1486
Rev.1.0, 30-Mar-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAT54W
■ Characteristics (Typical)
2/4
S-S1486
Rev.1.0, 30-Mar-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAT54W
■ Outline Dimensions
■ Soldering Footprint
Unit: mm
3/4
S-S1486
Rev.1.0, 30-Mar-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAT54W
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S1486
Rev.1.0, 30-Mar-18
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
