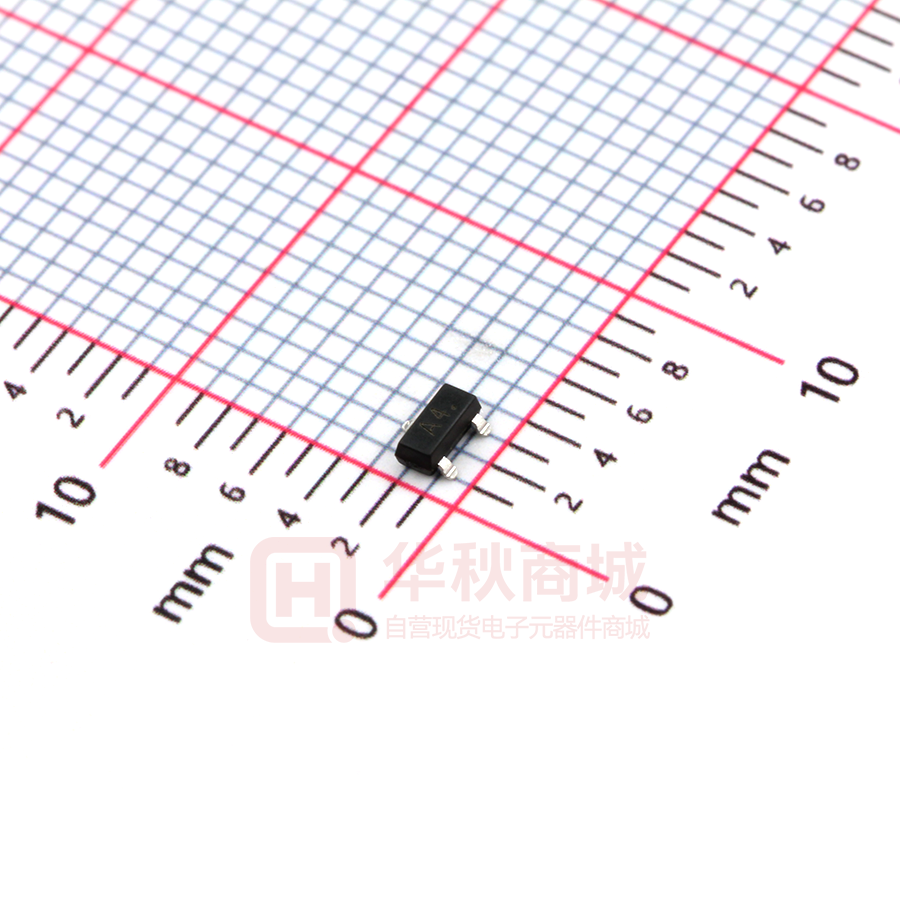

BAV70

RoHS BAV70  COMPLIANT   Dual Switching Diode Features ●Epoxy meets UL-94 V-0 flammability rating ●Moisure Sensitivity Level 1 ●Fast switching speed ●High Conductance ●Surface mount package ideally Suited for Automatic Insertion Mechanical Data ● Package: SOT-23 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ● Marking: A4 ■Maximum Rating, (Ta=25℃ Unless otherwise specified) Item Symbol Unit Value VRRM V 100 Reverse Voltage VR V 75 Forward Continuous Current@f>=50Hz, Per Leg IF mA 150 Non-Repetitive Peak Forward Surge Current@8.3ms, Half sine-wave, Per Leg IFSM A 2.0 Power Dissipation PD mW 350 Maximum Thermal Resisance RthJA ℃/W 357 Storage Temperature TSTG ℃ -55 to +150 Tj ℃ -55 to +150 Peak Reverse Voltage Operating Junction Temperature ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) BAV70 F2 Approximate 0.008 3000 INNER BOX OUTER CARTON DELIVERY MODE QUANTITY(pcs) QUANTITY(pcs) 30000 120000 7” reel 1/4 S-S160 Rev. 2.3, 06-Jun-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAV70    ■Electrical Characteristics（Ta=25℃ Unless otherwise specified, Per Leg） Item Symbol Unit Conditions Value Reverse Voltage VR V IR=2.5uA 75 Maximum Instantaneous Forward Voltage VF V IFM=10mA 1 Maximum DC Reverse Current IR uA VR=75V Typical Junction Capacitance CJ pF f=1.0MHz, VR=0V 4 Reverse Recovery Time Trr ns IF=10mA, VR=6V, RL=500Ω, Irr=1mA 4 2.5 ■ Typical Characteristics (Per Leg) 2/4 S-S160 Rev. 2.3, 06-Jun-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAV70    ■SOT-23 Package Outline Dimensions ■SOT-23Suggested Pad Layout 3/4 S-S160 Rev. 2.3, 06-Jun-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAV70    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S160 Rev. 2.3, 06-Jun-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
