RoHS

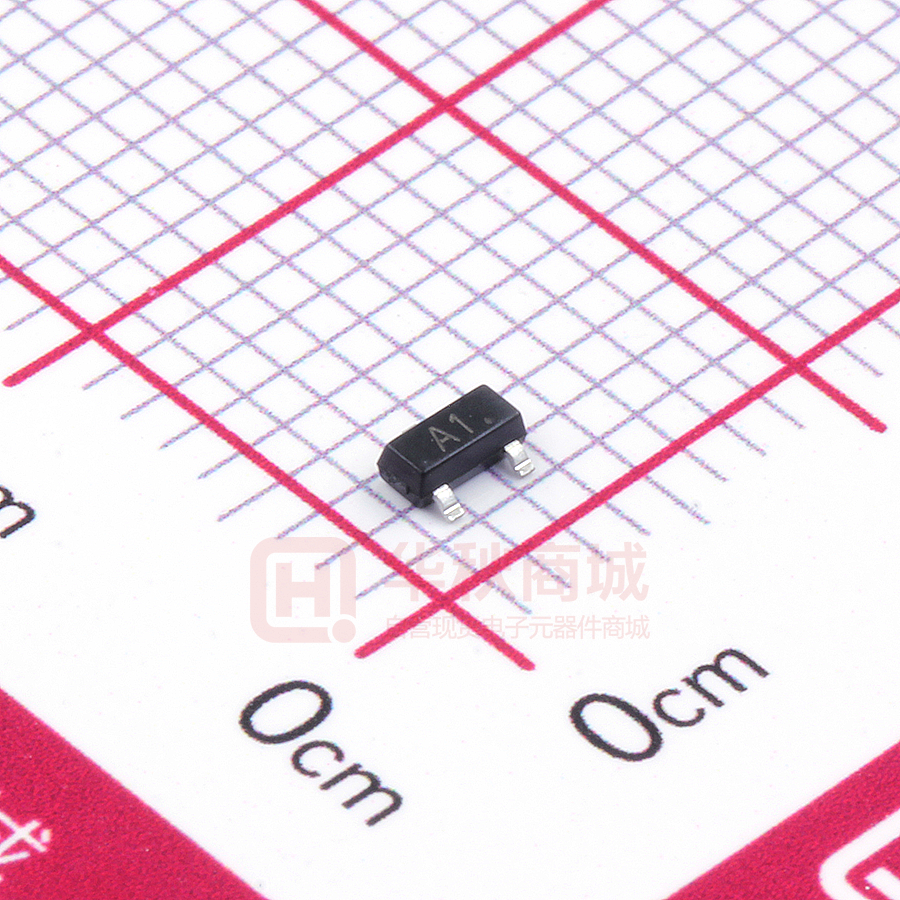

BAW56
COMPLIANT
Dual Switching Diode
Features
● Epoxy meets UL-94 V-0 flammability rating
●Moisture Sensitivity Level 1
●Fast switching speed
●High Conductance
●Surface mount package ideally Suited for Automatic
Insertion
Mechanical Data
● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Marking:A1
■Maximum Rating, (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Value
Reverse Voltage
VR
V
100
Forward Continuous Current, Per Leg
IF
mA
150
Non-Repetitive Peak Forward Surge Current@
t=1us, Per Leg
IFSM
A
1
Power Dissipation
PD
mW
350
Operating Junction Temperature
TJ
℃
-55 to +150
TSTG
℃
-55 to +150
Storage Temperature
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
BAW56
F2
Approximate 0.008
3000
INNER BOX
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs) QUANTITY(pcs)
30000
120000
7” reel
1/4
S-S279
Rev. 2.2, 06-June-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAW56
■Electrical Characteristics(Ta=25℃ Unless otherwise specified, Per Leg)
Item
Symbol
Unit
Reverse Voltage
VR
V
Maximum Instantaneous Forward Voltage
VF
V
Conditions
IR=100uA
Value
100
IFM=10mA, TJ=25℃
0.855
IFM=150mA, TJ=25℃
1.25
2.5
Maximum DC Reverse Current
IR
uA
VR=75V
Typical Junction Capacitance
CJ
pF
f=1.0MHz, VR=0V
4
Reverse Recovery Time
Trr
ns
IF=10mA, VR=6V, RL=500Ω,
Irr=1mA
4
■ Typical Characteristics (Per Leg)
2/4
S-S279
Rev. 2.2, 06-June-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAW56
■SOT-23 Package Outline Dimensions
■SOT-23Suggested Pad Layout
3/4
S-S279
Rev. 2.2, 06-June-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAW56
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S279
Rev. 2.2, 06-June-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
