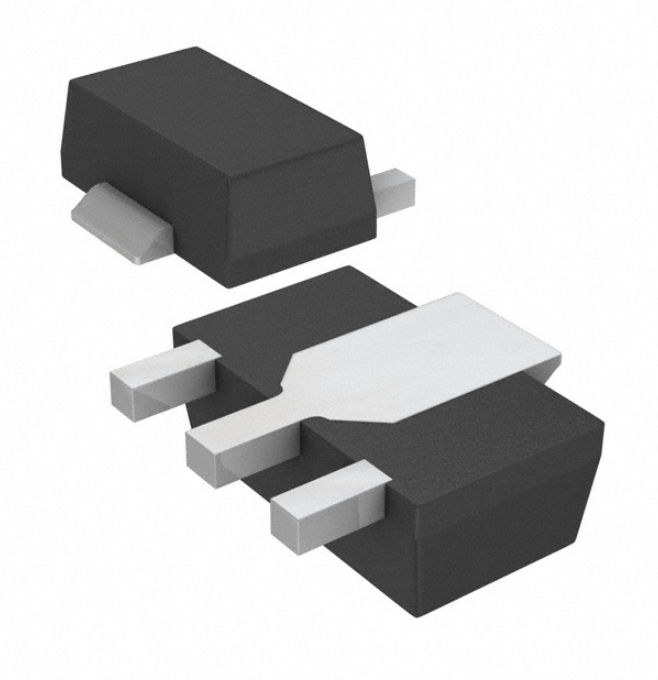

BCX56

RoHS BCX56   COMPLIANT   NPN General Purpose Amplifier Features ● Epoxy meets UL-94 V-0 flammability rating ● Halogen free available upon request by adding suffix ”HF” ● Moitsure Sensitivity Level 1 ● Low collector-emitter saturation voltage Mechanical Data ● Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Marking: BL ■Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Conditions Value Minimum Collector-Emitter Voltage VCEO V IC=10mA, IB=0 80 Minimum Collector-Base Voltage VCBO V IC=100uA, IE=0 100 Minimum Emitter-Base Voltage VEBO V IE=10uA, IC=0 5 Collector Current IC A 1 Collector Power Dissipation PC mW 500 RθJA ℃/W 250 Tj ℃ -55 to +150 Tstg ℃ -55 to +150 Thermal Resistance From Junction To Ambient Operation Junction Temperature Storage Temperature 1/5 S-S3831 Rev.1.1,18-Aug-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BCX56     ■Electrical Characteristics (Ta=25℃ unless otherwise noted) Item Symbol Unit Conditions Min TYP Max Collector-Emitter Voltage VCEO V IC=10mA, IB=0 80 Collector-Base Voltage VCBO V IC=100uA, IE=0 100 Emitter-Base Voltage VEBO V IE=10uA, IC=0 5 Collector-Base cut-off current ICBO nA VCB=30V 100 Emitter-Base cut-off current IEB0 nA VEB=5V 100 DC Current Gain hFE（1） VCE=2V IC=150mA 100 hFE（2） VCE=2V IC=5mA 40 hFE（3） VCE=2V IC=500mA 25 250 VCE(sat) V IC=500mA IB =50mA 0.5 Base-Emitter Voltage VBE V VCE=2V IC=500mA 1 Transition Frequency fT MHz Collector-Emitter Saturation Voltage IC=10mA, VCE=5V,f=100MHz 130 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE BCX56 F2 Approximate 0.055 1000 8000 32000 7” reel ■Characteristics (Typical)           2/5 S-S3831 Rev.1.1,18-Aug-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BCX56                     3/5 S-S3831 Rev.1.1,18-Aug-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BCX56     ■SOT-89 Package Outline Dimensions ■SOT-89 Suggested Pad Layout 4/5 S-S3831 Rev.1.1,18-Aug-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BCX56     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S3831 Rev.1.1,18-Aug-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
