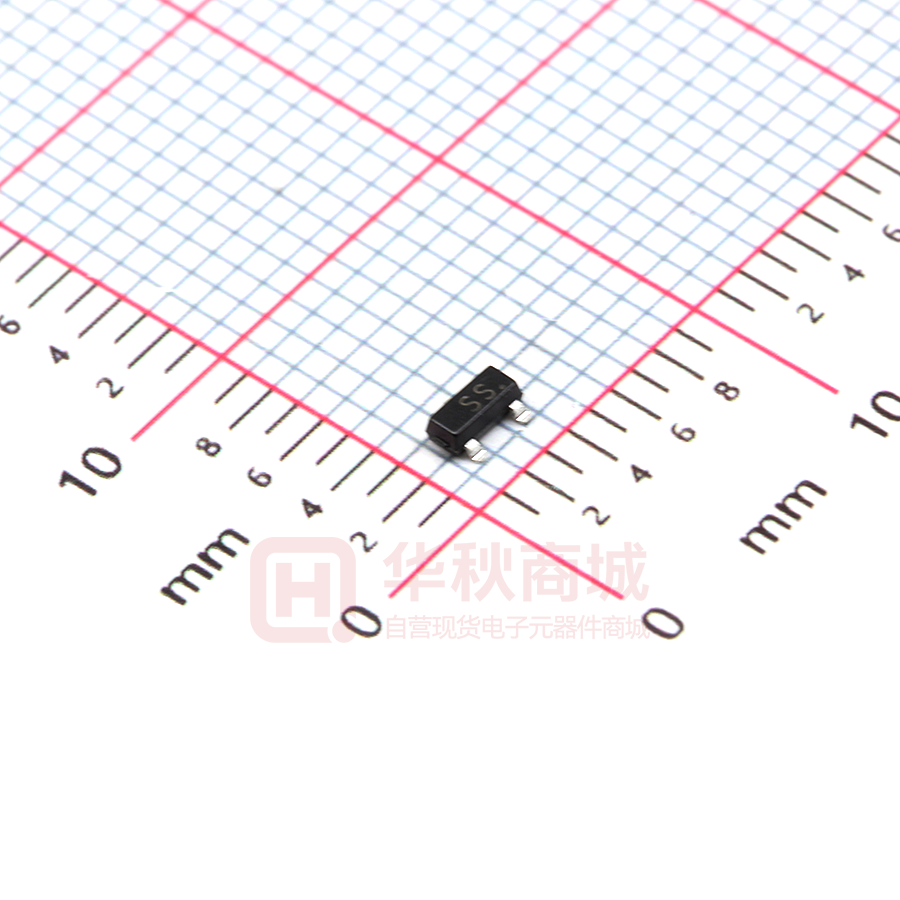

BSS138

RoHS BSS138 COMPLIANT N-Channel Enhancement Mode Field Effect Transistor Product Summary ● VDS ● ID ● RDS(ON)( at VGS=10V) ● RDS(ON)( at VGS=4.5V) 50V 340mA ＜2.5ohm ＜3.0ohm General Description ● Trench Power MV MOSFET technology ● Voltage controlled small signal switch ● Low input Capacitance ● Fast Switching Speed ● Low Input / Output Leakage Applications ● Battery operated systems ● Solid-state relays ● Direct logic-level interface：TTL/CMOS ■ Absolute Maximum Ratings (TA=25℃unless otherwise noted) Parameter Symbol Limit Drain-source Voltage VDS 50 V Gate-source Voltage VGS ±20 V TA=25℃ @ Steady State Drain Current 340 ID TA=70℃ @ Steady State Unit mA 272 Pulsed Drain Current A IDM 1.5 A Total Power Dissipation @ TA=25℃ PD 350 mW RθJA 357 ℃/ W TJ ,TSTG -55～+150 ℃ Thermal Resistance Junction-to-Ambient @ Steady State B Junction and Storage Temperature Range ■ Ordering Information (Example) PREFERED P/N PACKING CODE Marking MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE BSS138 F2 SS. 3000 30000 120000 7“ reel 1/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BSS138 ■ Electrical Characteristics (TJ=25℃ unless otherwise noted) Parameter Symbol Conditions Min Typ Max Units Drain-Source Breakdown Voltage BVDSS VGS= 0V, ID=250μA 50 Zero Gate Voltage Drain Current IDSS VDS=50V,VGS=0V 1 μA IGSS1 VGS= ±20V, VDS=0V ±100 nA IGSS2 VGS= ±10V, VDS=0V ±50 nA Gate Threshold Voltage VGS(th) VDS= VGS, ID=250μA 1.2 1.6 V VGS= 10V, ID=300mA 1.1 2.5 Static Drain-Source On-Resistance RDS(ON) VGS= 4.5V, ID=200mA 1.2 3.0 Static Parameter V Gate-Body Leakage Current Diode Forward Voltage VSD Maximum Body-Diode Continuous Current 0.8 Ω IS=300mA,VGS=0V IS 1.2 V 340 mA Dynamic Parameters Input Capacitance Ciss 28.5 Output Capacitance Coss Reverse Transfer Capacitance Crss 1.78 Total Gate Charge Qg 1.7 Gate-Source Charge Qgs Gate-Drain Charge Qgd Reverse Recovery Charge Qrr VDS=25V,VGS=0V,f=1MHZ 2.7 pF Switching Parameters VGS=10V,VDS=25V,ID=0.3A 0.4 nC 0.24 2.65 IF=0.3A, di/dt=-100A/us Reverse Recovery Time trr 12.2 Turn-on Delay Time tD(on) 2.6 Turn-on Rise Time tr Turn-off Delay Time tD(off) Turn-off fall Time VGS=10V,VDD=25V, ID=300mA, RGEN=6Ω tf 18.8 ns 9.7 47 A. Pulse Test: Pulse Width≤300us,Duty cycle ≤2%. B. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch. 2/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BSS138 ■ Typical Performance Characteristics Figure1. Output Characteristics Figure2. Transfer Characteristics Figure3. Capacitance Characteristics Figure4. Gate Charge Figure5. Drain-Source on Resistance Figure6. Drain-Source on Resistance 3/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BSS138 Figure7. Safe Operation Area Figure8. Switching wave 4/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BSS138 ■ SOT-23 Package information 5/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BSS138 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 6/6 S-E079 Rev.3.0,08-Mar-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
