RoHS
BZX84C2V4 THRU BZX84C47
COMPLIANT
Zener Diodes
Features
● High reliability
● Very sharp reverse characteristic
● Low reverse current level
● Zener Voltage 2.4V~47V
Mechanical Data
● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
■Limiting Values (Absolute Maximum Rating, Ta=25℃ Unless otherwise specified)
Characteristic
Symbol
Value
Units
Maximum Forward Voltage@IF=10mA
VF
0.9
V
Power Dissipation
PD
350
mW
Peak Forward Surge Current*
IFSM
2.0
A
Thermal Resistance
RthJA
357
℃ /W
TJ
-55~+150
℃
TSTG
-55~+150
℃
Operation Temperature
Storage Temperature Range
*Measured on 8.3ms, single half sine-wave
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
BZX84C2V4 THRU BZX84C47
F2
Approximate 0.008
3000
INNER BOX
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs) QUANTITY(pcs)
30000
120000
7” reel
1/5
S-S1499
Rev.1.4, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZX84C2V4 THRU BZX84C47
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
Nominal Zener Voltage
Type Number
Marking
Code
Max Reverse
Leakage Current
Maximum Zener Impedance
Vz at IZT (V)
ZZT@IZT
ZZk@IZk
IR (uA)@ VR
Min.
Typ.
Max.
ZZT (Ω)
IZT(mA)
ZZk (Ω)
IZk (mA)
Max
VR(V)
BZX84C2V4
Z11
2.28
2.4
2.52
100
5
600
1
50
1
BZX84C2V7
Z12
2.5
2.7
2.9
100
5
600
1
20
1
BZX84C3V0
Z13
2.8
3.0
3.2
95
5
600
1
10
1
BZX84C3V3
Z14
3.1
3.3
3.5
95
5
600
1
5
1
BZX84C3V6
Z15
3.4
3.6
3.8
90
5
600
1
5
1
BZX84C3V9
Z16
3.7
3.9
4.1
90
5
600
1
3
1
BZX84C4V3
Z17
4.0
4.3
4.6
90
5
600
1
3
1
BZX84C4V7
Z1
4.4
4.7
5.0
80
5
500
1
3
2
BZX84C5V1
Z2
4.8
5.1
5.4
60
5
480
1
2
2
BZX84C5V6
Z3
5.2
5.6
6.0
40
5
400
1
1
2
BZX84C6V2
Z4
5.8
6.2
6.6
10
5
150
1
3
4
BZX84C6V8
Z5
6.4
6.8
7.2
15
5
80
1
2
4
BZX84C7V5
Z6
7.0
7.5
7.9
15
5
80
1
1
5
BZX84C8V2
Z7
7.7
8.2
8.7
15
5
80
1
0.7
5
BZX84C9V1
Z8
8.5
9.1
9.6
15
5
100
1
0.5
6
BZX84C10
Z9
9.4
10
10.6
20
5
150
1
0.2
7

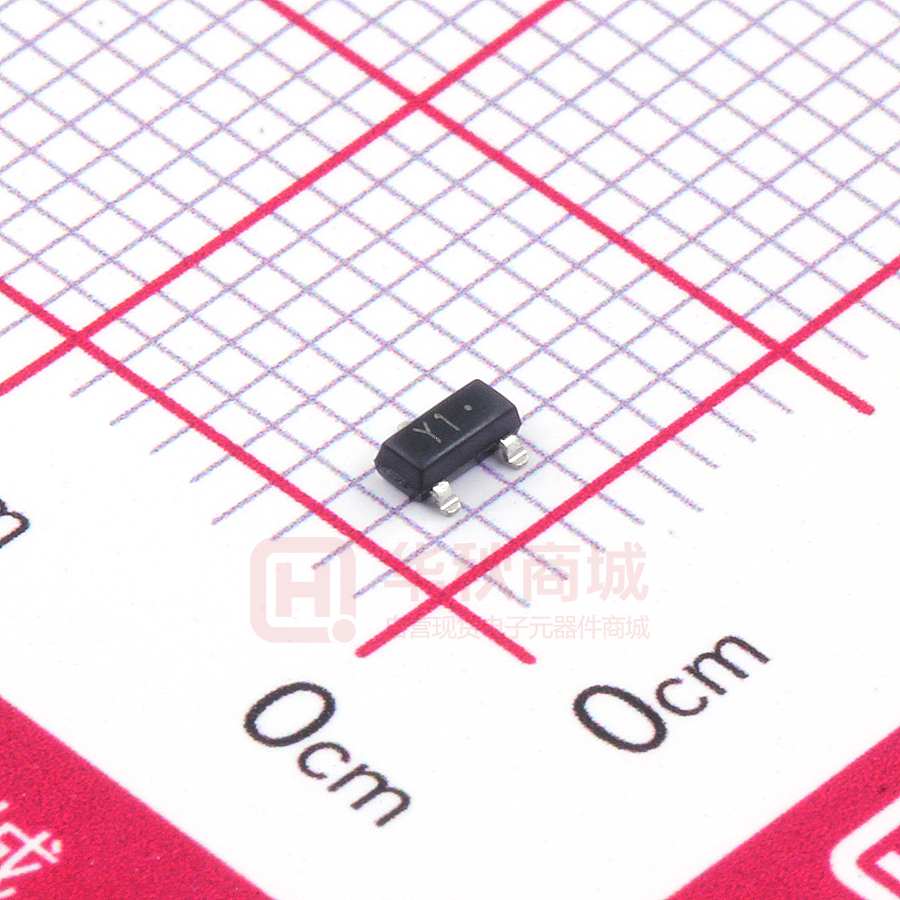

BZX84C11
Y1 ·
10.4
11
11.6
20
5
150
1
0.1
8
BZX84C12
Y2 ·
11.4
12
12.7
25
5
150
1
0.1
8
BZX84C13
Y3
12.4
13
14.1
30
5
170
1
0.1
8
BZX84C15
Y4
14.25
15
15.75
30
5
200
1
0.1
10.5
BZX84C16
Y5
15.3
16
17.1
40
5
200
1
0.1
11.2
BZX84C18
Y6 ·
16.8
18
19.1
45
5
225
1
0.1
12.6
BZX84C20
Y7
18.8
20
21.2
55
5
225
1
0.1
14
BZX84C22
Y8
20.8
22
23.3
55
5
250
1
0.1
15.4
BZX84C24
Y9
22.8
24
25.6
70
5
250
1
0.1
16.8
BZX84C27
Y10
25.1
27
28.9
80
2
300
1
0.1
18.9
BZX84C30
Y11 ·
28
30
32
80
2
300
1
0.1
21.0
BZX84C33
Y12
31
33
35
80
2
325
1
0.1
23.1
BZX84C36
Y13
34
36
38
90
2
350
1
0.1
25.2
BZX84C39
Y14
37
39
41
130
2
350
1
0.1
27.3
BZX84C43
Y15
40.85
43
45.15
150
5
375
1
0.1
30.1
BZX84C47
Y16
44.65
47
49.35
170
5
375
1
0.1
32.9
2/5
S-S1499
Rev.1.4, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZX84C2V4 THRU BZX84C47
■ Characteristics (Typical)
3/5
S-S1499
Rev.1.4, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZX84C2V4 THRU BZX84C47
■SOT-23 Package Outline Dimensions
■SOT-23Suggested Pad Layout
4/5
S-S1499
Rev.1.4, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZX84C2V4 THRU BZX84C47
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
