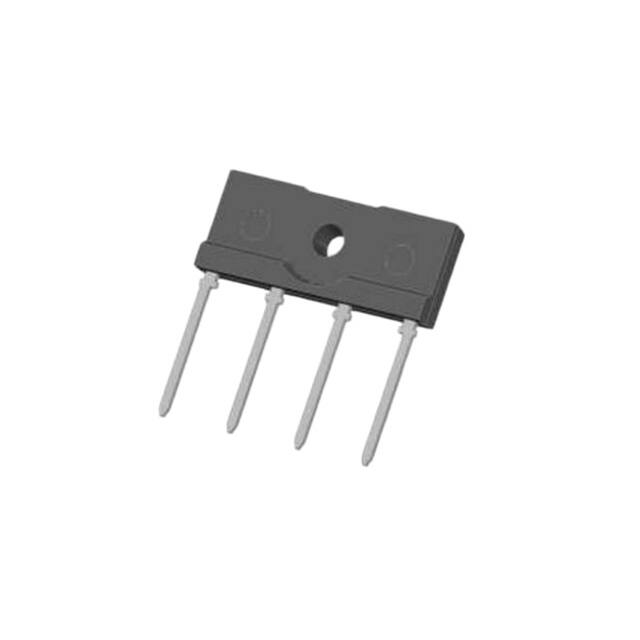

RoHS D10JB05 THRU D10JB100 COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E230084 ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications. Mechanical Data ● Package: JB Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body + - ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive Peak Reverse Voltage With heatsink Average Rectified Output Tc =95℃ Current @60Hz sine wave, Without heatsink R-load, Ta =25℃ Surge(non-repetitive)forward current @60Hz half-sine wave, 1 cycle, Tj=25℃ VRRM V IO A D10JB05 D10JB10 D10JB20 D10JB40 D10JB60 D10JB80 D10JB100 D10JB05 D10JB10 D10JB20 50 100 D10JB40 D10JB60 D10JB80 D10JB100 200 400 800 1000 10.0 3.2 IFSM A 175 It 2 A2S 127 Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Dielectric strength @ terminals to case, AC 1 minute Vdis KV 2 Mounting torque @recommend torque：5kg·cm Tor kg·cm 8 Current squared time @1ms≤t≤8.3ms Tj=25℃,rating of per diode 600 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST D10JB05 D10JB10 D10JB20 D10JB40 D10JB60 D10JB80 D10JB100 CONDITIONS VF V IFM=5.0A IRRM μA VRM=VRRM 1.00 5 1/4 S-B017 Rev.2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D10JB05 THRU D10JB100 ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER Thermal Resistance SYMBOL Between junction and ambient, Without heatsink Between junction and case, With heatsink UNIT D10JB05 D10JB10 D10JB20 D10JB40 RθJ-A D10JB60 D10JB80 D10JB100 28.0 ℃/W RθJ-C 2.8 ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) D10JB05~D10JB100 B1 Approximate 2.4 20 900 OUTER CARTON DELIVERY MODE QUANTITY(pcs) 1800 Tube ■ Characteristics(Typical) FIG1:Io-Tc Curve FIG2:Surge Forward Current Capability 300 14 0 Peak Forward Surge Current (A) Average Forward Output Current(A) Half-sine wave 12 10 8 6 sine wave R-load with heatsink 4 200 non-repetitive Ta=25℃ 100 2 0 70 80 90 100 110 120 130 140 0 150 1 Case Temperature(℃) ` 5 10 20 50 100 Number of Cycles FIG3:Instantaneous Forward Voltage FIG4:Typical Reverse Characteristics 100 60 40 Tj=150℃ Ta=25℃ 20 Instantaneous Reverse Current(μA) Instantaneous Forward Current(A) 2 10 5.0 1.0 0.5 10 1 Tj=25℃ 0.1 0.2 0.1 0.4 0.6 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage (V) 0.01 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage(%) 2/4 S-B017 Rev.2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D10JB05 THRU D10JB100 ■ Outline Dimensions JB JB G A H J I E K N M D L F F Min Max A 24.7 25.3 B 11.4 12.0 C 10.0 10.6 D 0.9 1.1 E C B Dim F 1.75(MAX) F 7.3 7.7 G 3.9 4.5 H 2.9 3.9 I 3.1 3.4 J 5.4 6.0 K 2.0 2.6 L 0.4 0.6 M 2.1 2.3 N 14.6 15.2 Dimensions in millimeters 3/4 S-B017 Rev.2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D10JB05 THRU D10JB100 Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B017 Rev.2.4, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
