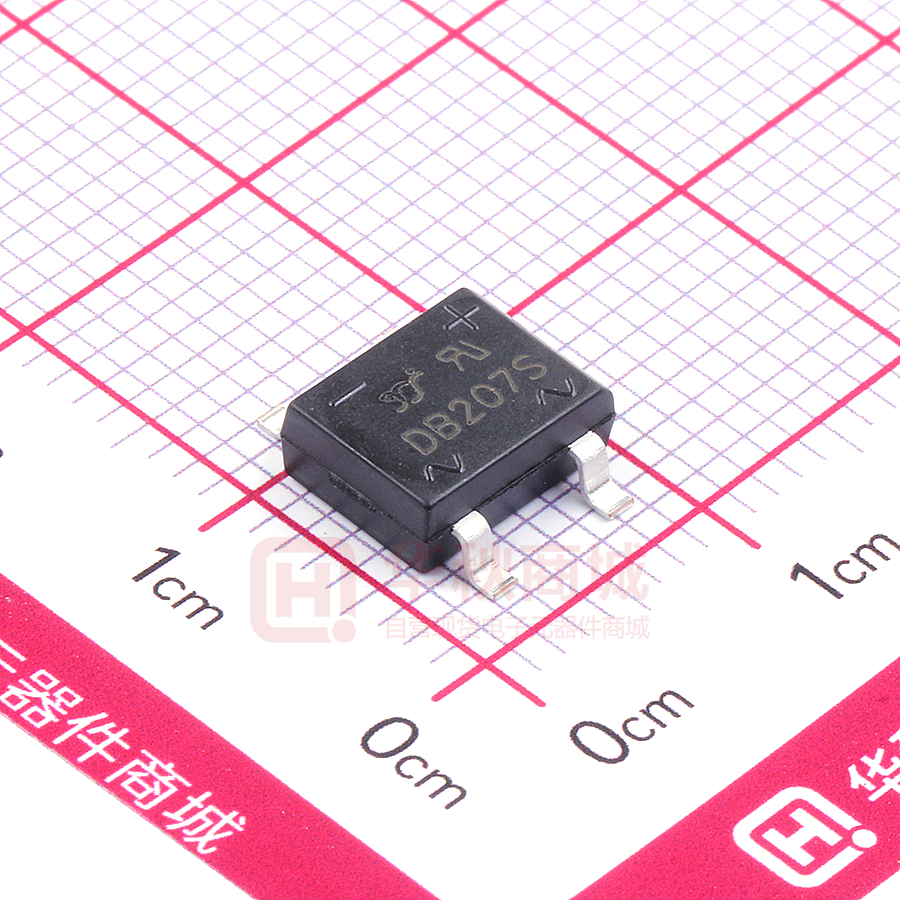

DB201S THRU DB207S
Voltage Range - 50 to 1000 Volts
Current - 1.0 Ampere
SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
Features
DBS
Ideal for printed circuit board
.205(5.2)
Reliable low cost construction utilizing molded plastic technique
.195(5.0)
.335(8.51)
High temperature soldering guaranteed: 260°/10 seconds at 5
.320(8.13) 45
.130(3.30)
lbs., (2.3kg) tension
+
Small size, simple installation
High surge current capability
.120(3.05)
.047(1.20)
.040(1.02)
(1)
(2)
-
.404(10.3)
+
.386(9.80)
.255(6.5)
.245(6.2)
.013(0.33)
.0088(0.22)
Mechanical Data
.013(0.33)
Case : JEDEC DBS Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method
2026
Polarity : Polarity symbol marking on case
Mounting Position : Any
Weight : 0.02 ounce, 0.4 grams
.060(1.53)
~
~
(3)
.003(0.076)
(4)
.040(1.02)
Dimensions in inches and (millimeters)
Maximum Ratings And Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwisespecified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at TC=40°C
Peak forward surge current,
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage drop
per leg at 1A
Maximum DC reverse current
TA=25°C
at rated DC blocking voltage
TA=100°C
Operating temperature range
storage temperature range
DB201S DB202S
DB203S DB204S DB205S DB206S DB207S
SYMBOLS
MDD
DB201S
VRRM
VRMS
VDC
50
35
50
MDD
MDD
MDD
MDD
MDD
MDD
DB202S DB203S DB204S DB205S DB206S DB207S
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
UNITS
V
V
V
IF(AV)
2.0
A
IFSM
60
A
VF
1.1
V
IR
10
500
µA
µA
TJ
TSTG
-55 to +150
-55 to +150
°C
°C
NOTES:DBS for surface mount package.
DN:T20520A0
http://www.microdiode.com
Rev:2020A0
Page :1
DB201S THRU DB207S
Voltage Range - 50 to 1000 Volts
Current - 1.0 Ampere
Ratings And Characteristic Curves
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
PEAK FORWARD CURRENT.(A)
AVERAGE FORWARD CURRENT(A)
FIG. 1- MAXIMUN DERATING CURVE FOR
OUTPUT RECTIFIED CURRENT
2.5
0.6''(1.5mm)
2.0
Copper Pauls .51''x.51''
(13mmx13mm)
1.5
1.0
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
0.5
60
TJ=25*
Single sine-wave
(JEDEC Method)
50
40
30
20
10
0
20
40
60
80
100
120
140 150
0
1
2
FIG. 3-TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
100
TJ=125*
10
1
1.0
0.1
TJ=25*
.10
0.01
.01
0
20
40
60
80
100
120
4
6
10
20
40
100
60
NUMBER OF CYCLES AT 60 Hz
INSTANTANEOUS REVERSE CURRENT.(A)
INSTANTANEOUS REVERSE CURRENT(*A)
AMBIENT TEMPERATURE, C
140
FIG. 4-TYPICAL FORWARD CHARACTERISTICS
PER BRIDGE ELEMNT
10
1
0.1
TJ=25*
PULSE WIDTH:300*S
1% DUTY CYCLE
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
FORWARD VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
FIG. 3-TYPICAL JUNCTION CAPACITANCE
PER BRIDGE ELEMENT
CAPACITANCE.(pF)
100
10
TJ=25*
f=1.0MHZ
Visg=50mV p-p
1
1
10
100
REVERSE VOLTAGE.(V)
The curve above is for reference only.
http://www.microdiode.com
Rev:2020A0
Page :2
