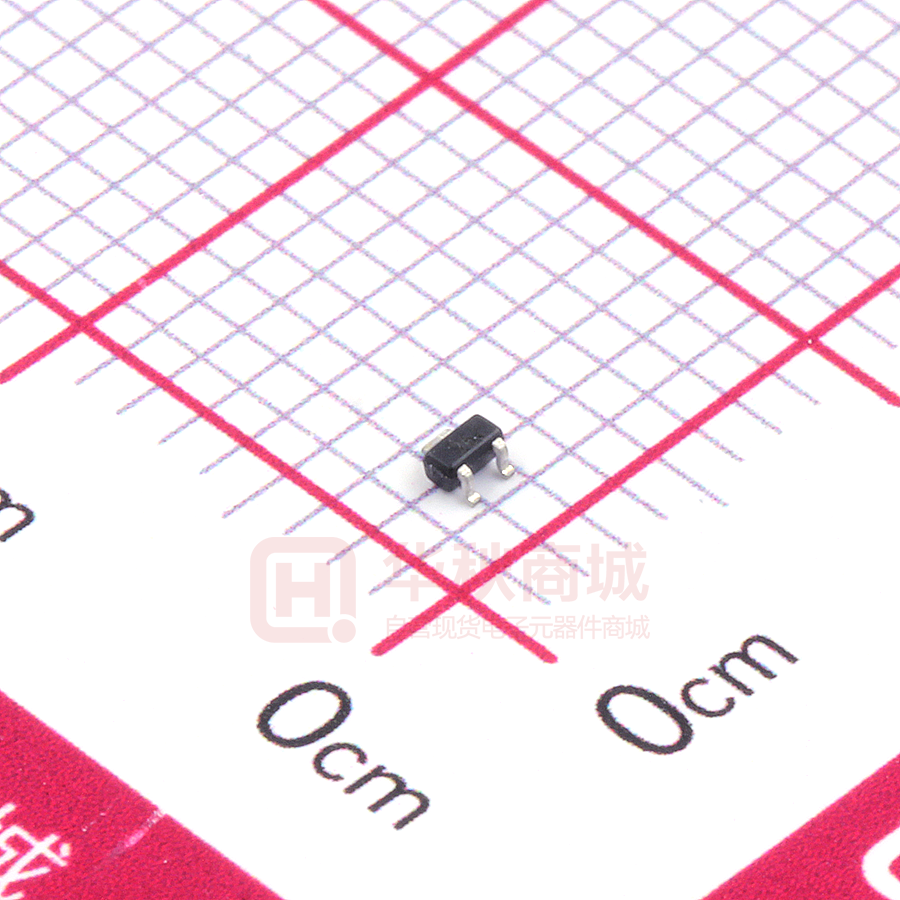

DTC144EE

RoHS DTC144EE  COMPLIANT   Digital Transistors (Built-in Resistors) Features ● Moisture Sensitivity Level 1 ● Surface mount package ideally Suited for Automatic Insertion ● Epoxy meets UL-94 V-0 flammability rating, halogen-free Mechanical Data ● Package: SOT-523 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Marking: 26 ■Equivalent circuit ■Maximum Ratings (Ta=25℃ Unless otherwise specified） ITEM SYMBOL UNIT CONDITIONS VALUE Supply Voltage VCC V 50 Input Voltage VIN V -10 to +40 Output Current IO mA 100 Power Dissipation PD mW 150 Junction Temperature TJ ℃ 150 Storage Temperature TSTG ℃ -55 to +150 1/5 S-S3390 Rev.1.0,25-Sep-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EE    ■Electrical Characteristics (Ta=25℃ unless otherwise specified) ITEM SYMBOL UNIT VI(off) V VI(on) V Vo(on) V II IO(off) CONDITIONS Input current Output current DC current gain GI Input resistance R1 Resistance ratio R2/R1 Transition frequency fT TYP MAX 0.5 VCC=5V,Ic=100uA V0=0.3V,Ic=2mA Input voltage Output voltage MIN 3 Io /Ii =10mA/0.5 mA 0.3 mA VI=5V 0.18 uA VCC=50V, Vi=0 0.5 Vo=5V, Io =5mA 68 kΩ MHz Vo=10V,IO=-5mA 32.9 47 61.1 0.8 1 1.2 250 ■ Ordering Information (Example) Prefered P/N Packing Code Unit Weight(G) Minimum Package(Pcs) Inner Box Quantity(Pcs) Outer Carton Quantity(Pcs) Delivery Mode DTC144EE F2 Approximate 0.0027 3000 30000 120000 7” reel ■ Characteristics (Typical)       2/5 S-S3390 Rev.1.0,25-Sep-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EE        ■ SOT-523 Package Outline Dimensions 3/5 S-S3390 Rev.1.0,25-Sep-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EE    ■ SOT-523 Suggested Pad Layout     4/5 S-S3390 Rev.1.0,25-Sep-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EE    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S3390 Rev.1.0,25-Sep-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
