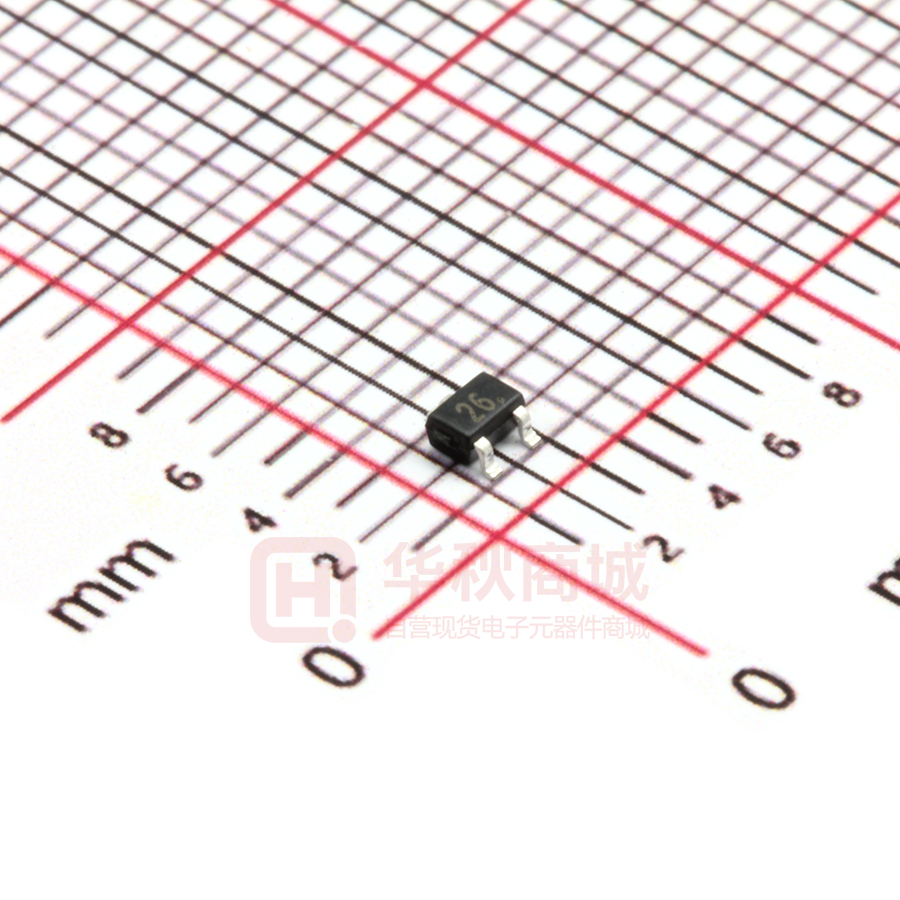

DTC144EUA

RoHS DTC144EUA  COMPLIANT   Digital Transistors (Built-in Resistors) Features ●Epoxy meets UL-94 V-0 flammability rating ●Moisture Sensitivity Level 1 ●Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors ●Surface mount package ideally Suited for Automatic Insertion ●NPN Mechanical Data ● Package: SOT-323 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 SOT‐323     ● Marking: 26 ■Equivalent circuit ■Maximum Ratings (Ta=25℃ Unless otherwise specified） ITEM SYMBOL UNIT CONDITIONS VALUE Supply Voltage VCC V 50 Input Voltage VIN V -10 to +40 Collector Current IC mA 100 Power Dissipation PD mW 200 Junction Temperature Tj ℃ 150 Storage Temperature Tstg ℃ -55 to +150 1/5 S-S2761 Rev.1.0,17-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EUA    ■Electrical Characteristics (Ta=25℃ unless otherwise specified) ITEM SYMBOL UNIT CONDITIONS MIN TYP MAX VI(off) V VCC=5V,Io=100uA 0.3 VI(on) V Vo=0.3V,Io=2mA VO(on) V Io /Ii =10mA/0.5 mA 0.3 II mA VI=5V 0.18 IO(off) uA VCC=50V, Vi=0 0.5 Input voltage Output voltage Input current Output current DC current gain GI Input resistance R1 Resistance ratio R2/R1 Transition frequency 3 Vo=5V, Io =5mA 68 kΩ fT MHz 32.9 47 61.1 0.8 1 1.2 Vo=10V,IO=5mA,f=100MHz 250 ■ Ordering Information (Example) PREFERED P/N DTC144EUA PACKING MINIMUM UNIT WEIGHT(g) PACKAGE(pcs) CODE F2 Approximate 0.005 INNER BOX OUTER CARTON QUANTITY(pcs) QUANTITY(pcs) 3000 30000 120000 DELIVERY MODE 7” reel ■ Characteristics (Typical)                                                       2/5 S-S2761 Rev.1.0,17-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EUA                                                                                                                  3/5 S-S2761 Rev.1.0,17-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EUA    ■SOT-323 Package Outline Dimensions ■SOT-323 Soldering Footprint 4/5 S-S2761 Rev.1.0,17-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DTC144EUA    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S2761 Rev.1.0,17-Dec-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
