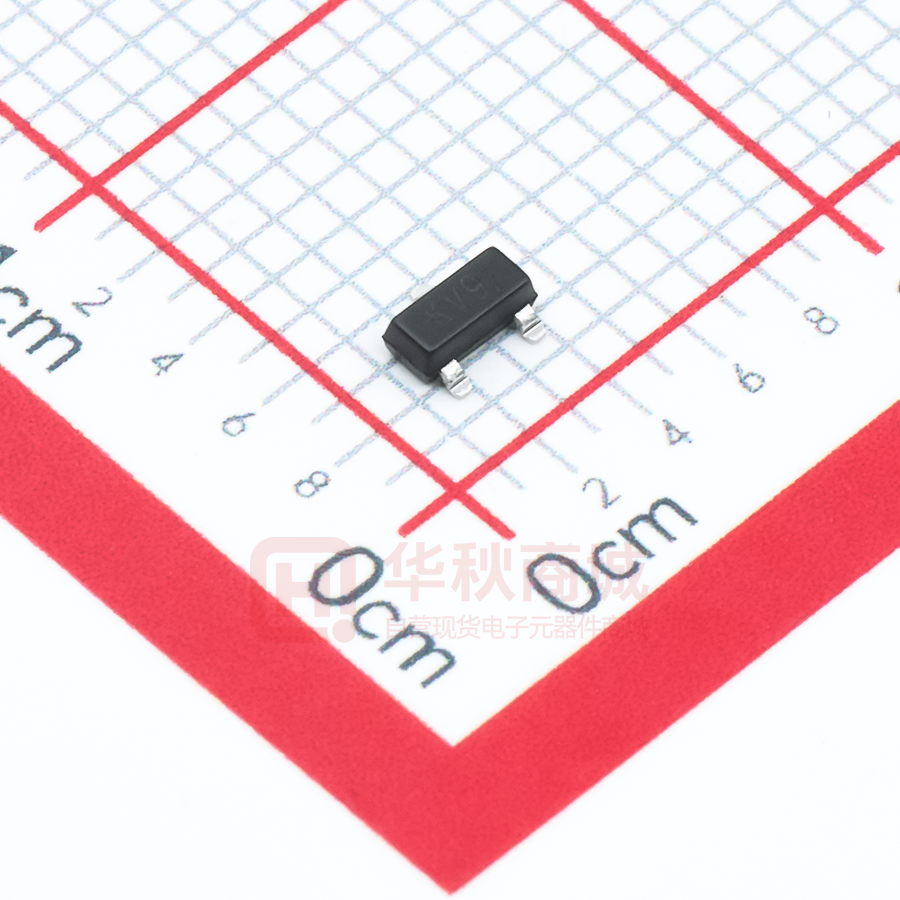

DZ23C5V6

RoHS DZ23C2V4 THRU DZ23C47 COMPLIANT   Zener Diode Features ● High reliability ● Very sharp reverse characteristic ● Low reverse current level ● Zener Voltage 2.4V~47V Mechanical Data ● Package: SOT-23 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ■Limiting Values (Absolute Maximum Rating, Ta=25℃ Unless otherwise specified) Characteristic Symbol Power Dissipation Value Units PD 300 mW Thermal Resistance from Junction to Ambient RθJA 417 ℃ /W Storage Temperature Range TSTG -55~+150 ℃ TJ -55~+150 ℃ Operation Temperature ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE DZ23C2V4-DZ23C47 F2 Approximate 0.009 3000 30000 120000 7” reel 1/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DZ23C2V4 THRU DZ23C47   ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） Nominal Zener Voltage Type Number Marking Code Maximum Reverse Leakage Current Maximum Zener Impedance VZ (V)@ IZT ZZT@IZT ZZk@IZk IR @ V R Min. Typ. Max. Ω mA Ω mA uA V DZ23C2V4 V0 2.28 2.4 2.52 100 5 600 1 100 1 DZ23C2V7 KV1 2.57 2.7 2.84 100 5 600 1 75 1 DZ23C3V0 KV2 2.85 3.0 3.15 95 5 600 1 50 1 DZ23C3V3 KV3 3.14 3.3 3.47 95 5 600 1 25 1 DZ23C3V6 KV4 3.42 3.6 3.78 95 5 600 1 15 1 DZ23C3V9 KV5 3.71 3.9 4.1 95 5 600 1 10 1 DZ23C4V3 KV6 4.09 4.3 4.52 95 5 600 1 5 1 DZ23C4V7 KV7 4.47 4.7 4.94 78 5 500 1 5 2 DZ23C5V1 KV8 4.85 5.1 5.36 60 5 480 1 0.1 0.8 DZ23C5V6 KV9 5.32 5.6 5.88 40 5 400 1 0.1 1 DZ23C6V2 KVA 5.89 6.2 6.51 10 5 150 1 0.1 2 DZ23C6V8 KVB 6.46 6.8 7.14 8 5 80 1 0.1 3 DZ23C7V5 KVC 7.13 7.5 7.88 7 5 80 1 0.1 5 DZ23C8V2 KVD 7.79 8.2 8.61 7 5 80 1 0.1 6 DZ23C9V1 KVE 8.65 9.1 9.56 10 5 100 1 0.1 7 DZ23C10 KVF 9.50 10 10.50 15 5 150 1 0.1 7.5 DZ23C11 KVG 10.45 11 11.55 20 5 150 1 0.1 8.5 DZ23C12 KVH 11.40 12 12.60 20 5 150 1 0.1 9 DZ23C13 KVI 12.35 13 13.65 25 5 170 1 0.1 10 DZ23C15 KVJ 14.25 15 15.75 30 5 200 1 0.1 11 DZ23C16 KVK 15.20 16 16.80 40 5 200 1 0.1 12 DZ23C18 KVL 17.10 18 18.90 50 5 225 1 0.1 14 DZ23C20 KVM 19.00 20 21.00 50 5 225 1 0.1 15 DZ23C22 KVN 20.90 22 23.10 55 5 250 1 0.1 17 DZ23C24 KVO 22.80 24 25.20 80 5 250 1 0.1 18 DZ23C27 KVP 25.65 27 28.35 80 5 300 1 0.1 20 2/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DZ23C2V4 THRU DZ23C47   DZ23C30 KVQ 28.50 30 31.50 80 5 300 1 0.1 22.5 DZ23C33 KVR 31.35 33 34.65 80 5 325 1 0.1 25 DZ23C36 KVS 34.20 36 37.80 90 5 350 1 0.1 27 DZ23C39 KVT 37.05 39 40.95 90 5 350 1 0.1 29 DZ23C43 KVU 40.85 43 45.15 100 5 700 1 0.1 32 DZ23C47 KVV 44.65 47 49.35 100 5 750 1 0.1 35 3/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DZ23C2V4 THRU DZ23C47   ■ Characteristics(Typical) 4/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DZ23C2V4 THRU DZ23C47   ■SOT-23 Package Outline Dimensions   ■SOT-23Suggested Pad Layout 5/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com DZ23C2V4 THRU DZ23C47   Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 6/6 S-S2216 Rev.1.0,09-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
