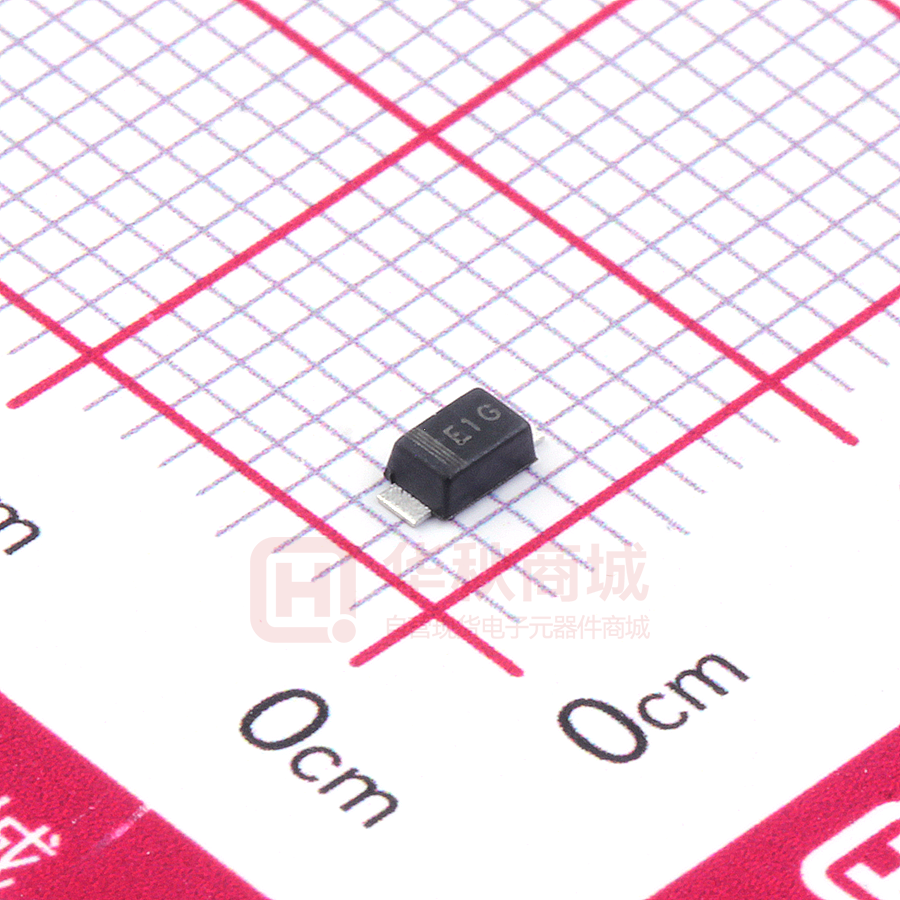

E1G

RoHS E1A THRU E1J COMPLIANT Surface Mount Super Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● Super fast switching for high efficiency ● High forward surge capability ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in super fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Date ● Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code E1A E1B E1D E1F E1G E1J E1A E1B E1D E1F E1G E1J 50 100 200 300 400 600 VRRM V IO A 1.0 Surge(non-repetitive)forward current @ 60Hz half-sine wave,1 cycle, Tj=25℃ IFSM A 30 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, Resistance load, Ta (FIG.1) ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=1.0A Maximum reverse recovery time trr ns IF=0.5A,IR=1.0A, IRR=0.25A 35 Ta=25℃ 5 IRRM μA Ta=125℃ 100 PARAMETER Maximum DC reverse current at rated DC blocking voltage per diode E1A E1B E1D E1F 1.0 E1G 1.3 E1J 1.7 1/5 S-S017 Rev. 2.2, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com E1A THRU E1J ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL E1A UNIT E1B E1D RθJ-A E1F E1G E1J 601) ℃/W Thermal resistance RθJ-L 201) Note： （1）Thermal resistance between junction and ambient and between junction and lead mounted on P.C.B with 3mm*3mm copper pad areas. ■ Characteristics (Typical) FIG2:Surge Forward Current Capability FIG1:Io-TL Curve 1.2 1.0 Peak Forward Surge Current（A） Average Forward Output（A） 35 0.8 0.6 0.4 Single Phase Half Wave 60Hz Resistive Load 0.2 0 0 40 80 120 Lead Temperature（℃） 30 8.3ms Single Half Sine Wave JEDEC Method 25 20 15 10 5 0 160 1 FIG3: Forward Voltage 2 5 10 20 Number of Cycles 50 100 FIG4:Typical Reverse Characteristics 100 6 Instantaneous Reverse Current （uA） Instantaneous Forward Current(A) 4 E1A~E1D 2 E1F~E1G 1 0.5 E1H-E1J 0.1 0.05 0.02 Tj=125℃ 10 1.0 Tj=25℃ 0.1 Ta=25℃ 0.01 0.01 0.4 0.8 1.2 1.6 1.8 2.0 Instantaneous Forward Voltage(V) 2.4 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） 2/5 S-S017 Rev. 2.2, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com E1A THRU E1J FIG.5: Diagram of circuit and Testing wave form of reverse recovery time I D trr IF RL IF VR t 0 IRR IR ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE E1A THRU E1J F1 Approximate 0.0169 3000 15000 120000 7” reel E1A THRU E1J F2 Approximate 0.0169 2500 12500 100000 7” reel E1A THRU E1J F3 Approximate 0.0169 10000 30000 210000 13” reel E1A THRU E1J F4 Approximate 0.0169 3000 27000 108000 7” reel E1A THRU E1J F5 Approximate 0.0169 10000 20000 160000 13” reel E1A THRU E1J F6 Approximate 0.0169 3000 12000 60000 7” reel ■ Outline Dimensions SOD-123FL SOD-123FL A B D C E F H Dim Min Max A 1.60 1.90 B 0.90 1.10 C 2.55 2.85 D 3.60 3.90 E 1.00 1.20 F 0.40 0.90 G 0.10 0.25 H 0.02 0.05 G Dimensions in millimeters 3/5 S-S017 Rev. 2.2, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com E1A THRU E1J ■ Suggested pad layout SOD-123FL P2 Q1 Dim Millimeters P1 3.90 P2 Q1 1.90 Q2 1.50 1.00 Q2 P1 Dimensions in millimeters 4/5 S-S017 Rev. 2.2, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com E1A THRU E1J Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S017 Rev. 2.2, 28-Apr-14 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
