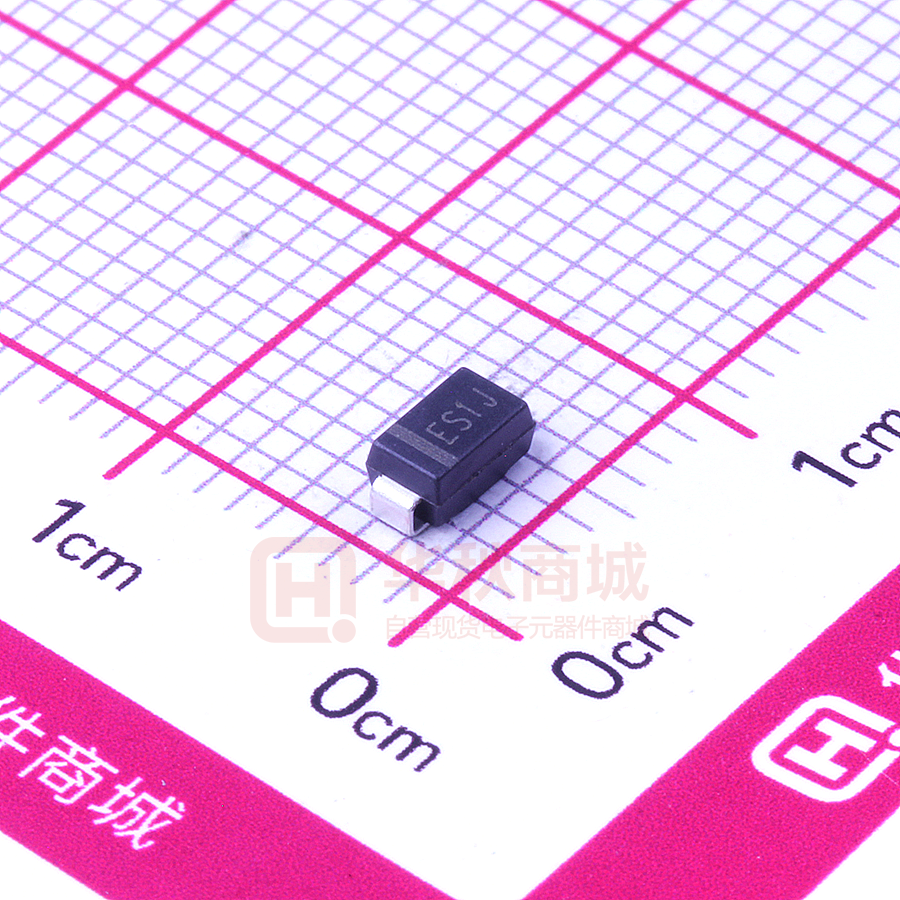

ES1J

  RoHS ES1A THRU ES1K  COMPLIANT   Surface Mount Super Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ● Super Fast reverse recovery time ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Data ● Package: DO-214AC (SMA)　 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT Device marking code ES1A ES1B ES1C ES1D ES1F ES1G ES1H ES1J ES1K ES1A ES1B ES1C ES1D ES1F ES1G ES1H ES1J ES1K 50 100 150 200 300 400 500 600 800 VRRM V Average rectified output current @ 60Hz sine wave, Resistance load, TL (FIG.1) IO A 1.0 Surge(non-repetitive)forward current @ 60Hz Half-sine wave,1 cycle, Ta=25℃ IFSM A 30 Storage temperature Tstg ℃ -55~+150 Junction temperature Tj ℃ -55~+150 Repetitive peak reverse voltage ■Electrical Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT TEST ES1A ES1B ES1C ES1D CONDITIONS ES1F Maximum instantaneous forward voltage drop per diode VF V IFM=1.0A Maximum reverse recovery time TRR ns IF=0.5A,IR=1.0A, Irr=0.25A 35 Ta=25℃ 5 IRRM μA Ta=125℃ 100 Maximum DC reverse current at rated DC blocking voltage per diode @ VRM=VRRM 0.95 ES1G 1.3 ES1H ES1J ES1K 1.7 1.85 1/5 S-S751 Rev. 2.5,08-Mar-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com   ES1A THRU ES1K    ■ Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT ES1A ES1B ES1C ES1D ES1G ES1H ES1J ES1K 651) RθJ-A RθJ-L Thermal Resistance ES1F 201) ℃/W 251) RθJ-C Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas ■ Characteristics (Typical) FIG2:Surge Forward Current Capability FIG.1: Io-TL Curve  1.2   30 25 Peak Forward Surge Current(A) 1.0 Average Rectified Output Curren(A)   0.8    0.6   0.4    0.2    0 80      6 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5.0mm×5.0mm)Copper Pad Areas 90 100 8.3ms Single Half Sine Wave 20 15 10 5 110 120 Lead Temperature(℃) 130 140 0 150 1 10 Number of Cycles 100 FIG4:Typical Reverse Characteristics FIG3: Forward Voltage 1000 ES1A~ES1D 2  1 Instantaneous Reverse Current(uA) Instantaneous Forward Current(A) 4 ES1F~ ES1G   0.5 ES1H-ES1J     0.1     ES1K 0.05     0.02 Ta=25℃   0.01 0.4     0.8 1.2 1.6 1.8 2.0 Instantaneous Forward Voltage(V) 100 Tj=125 ℃ 10 1 Tj=25 ℃ 0.1 0 2.4 20 40 60 80 Percent of Rated Peak Reverse Voltage(%) 100   2/5 S-S751 Rev. 2.5,08-Mar-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com     ES1A THRU ES1K  F IG .5 : D ia g ra m o f c irc u it a n d T e s tin g w a v e fo rm o f re v e rs e re c o v e ry tim e                       I D t rr IF RL IF VR t 0 IR R IR ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE ES1A- ES1K F1 Approximate 0.059 5000 10000 80000 13” reel ES1A- ES1K F2 Approximate 0.059 7500 15000 120000 13” reel ES1A- ES1K F3 Approximate 0.059 7500 15000 60000 13” reel ES1A- ES1K F4 Approximate 0.059 1800 7200 57600 7” reel ES1A- ES1K F5 Approximate 0.059 2000 8000 64000 7” reel ES1A- ES1K F6 Approximate 0.059 5000 10000 100000 13” reel ■ Outline Dimensions DO-214AC(SMA) A DO-214AC(SMA) B C D F G H Dim Min Max A 1.25 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 E Dimensions in millimeters 3/5 S-S751 Rev. 2.5,08-Mar-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com   ES1A THRU ES1K    ■Suggested Pad Layout DO-214AC(SMA) P3 P2 Q2 Q1 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1  2.50 Q2  1.70 P1 Dimensions in millimeters 4/5 S-S751 Rev. 2.5,08-Mar-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com   ES1A THRU ES1K    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S751 Rev. 2.5,08-Mar-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
