RoHS

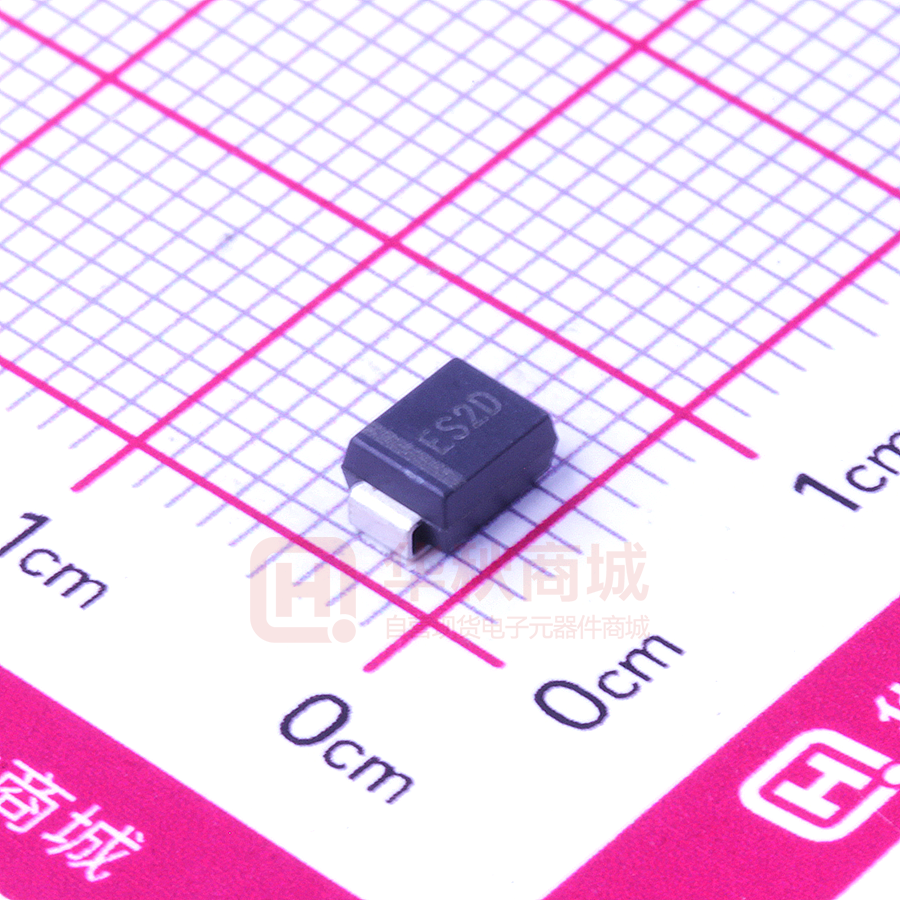

ES2A THRU ES2K
COMPLIANT
Surface Mount Super Fast Recovery Rectifier
Features
● Low profile package
● Ideal for automated placement
● Glass passivated chip junction
● High forward surge capability
● Super Fast reverse recovery time
● Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
Typical Applications
For use in high frequency rectification of power supplies,
inverters, converters, and freewheeling diodes for consumer
and telecommunication.
Mechanical Data
● Package: DO-214AA (SMB)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
ES2A
ES2B
ES2C
ES2D
ES2F
ES2G
ES2H
ES2J
ES2K
ES2A
ES2B
ES2C
ES2D
ES2F
ES2G
ES2H
ES2J
ES2K
50
100
150
200
300
400
500
600
800
ES2G
ES2H
ES2J
ES2K
VRRM
V
IO
A
2.0
Surge(non-repetitive)forward current
@60Hz half-sine wave,1 cycle, Ta=25℃
IFSM
A
50
Storage temperature
Tstg
℃
-55~+150
Junction temperature
Tj
℃
-55~+150
Repetitive peak reverse voltage
Average rectified output current
@60Hz sine wave, resistance load, TL (Fig.1)
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
TEST
CONDITIONS
ES2A
ES2B
ES2C
ES2D
ES2F
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=2.0A
Maximum reverse recovery time
TRR
ns
IF=0.5A,IR=1.0A,
Irr=0.25A
35
Maximum DC reverse current
at rated DC blocking voltage
per diode @ VRM=VRRM
Ta =25℃
5.0
IRRM
μA
Ta =125℃
100
0.95
1.3
1.7
1.85
1/5
S-S025
Rev. 2.6, 22-Oct-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
ES2A
ES2B
ES2C
ES2D
(1)
ES2F
ES2G
ES2H
ES2J
ES2K
85
RθJ-A
Thermal resistance
℃/W
(1)
RθJ-L
22
Note:
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas
■ Characteristics (Typical)
FIG1:Io‐TL Curve
FIG2:Surge Forward Current Capability
50
2.0
Peak Forward Surge Current(A)
Average Forward Output Current(A)
2.4
1.6
1.2
0.8
0.4
0
40
60
80
30
20
100
120
140
160
0
Lead Temperature(℃)
100
100
ES2A~ES2D
Instantaneous Reverse Current(uA)
Instantaneous Forward Current(A)
10
FIG4:Typical Reverse Characteristics
FIG3: Forward Voltage
2
1
0.5
ES2F~ES2G
ES2H-ES2J
ES2K
0.1
0.05
0.02
0.01
1
Number of Cycles
6
4
8.3ms Single Half Sine Wave
10
Resistive or Inductive Load
P.C.B. Mounted on 0.3"×0.3"
(8.0mm×8.0mm)Copper Pad Areas
20
40
1.0
0.1
0.01
0.4
0.8
1.2
1.6
2.0
Ta=125 ℃
10
2.4
Instantaneous Forward Voltage(V)
Ta=25 ℃
0
20
40
60
80
Percent of Rated Peak Reverse Voltage(%)
100
2/5
S-S025
Rev. 2.6, 22-Oct-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
FIG.5: Diagram of circuit and Testing wave form of reverse recovery time
10 Ω
NONINDUCTIVE
50 Ω
NONINDUCTIVE
trr
+0.5A
(-)
(+)
DUT
0
PULSE
GENERATOR
(NOTE2)
(-)
1Ω
NONINDUCTIVE
OSCILLOSCOPE
(NOTE1)
-0.25A
(+)
-1.0A
NOTES:
1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf
2.Rise Time=10ns max.Sourse Impedance=50 Ω
1cm
SET TIME BASE FOR
5/10ns/cm
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
ES2A-ES2K
F1
Approximate 0.096
3000
6000
48000
13” reel
ES2A-ES2K
F2
Approximate 0.096
750
3000
24000
7” reel
ES2A-ES2K
F3
Approximate 0.096
500
2000
16000
7” reel
3/5
S-S025
Rev. 2.6, 22-Oct-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
■ Outline Dimensions
DO-214AA(SMB)
A
DO-214AA(SMB)
B
C
D
G
F
H
Dim
Min
Max
A
1.85
2.15
B
3.30
3.94
C
4.25
4.75
D
1.99
2.61
E
5.21
5.59
F
0.90
1.41
G
0.10
0.20
H
0.15
0.31
E
Dimensions in millimeters
■ Suggested pad layout
DO-214AA(SMB)
P2
Q2
Q1
P3
Dim
Millimeters
P1
6.8
P2
4.3
P3
1.8
Q1
2.5
Q2
2.3
P1
Dimensions in millimeters
4/5
S-S025
Rev. 2.6, 22-Oct-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
ES2A THRU ES2K
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
