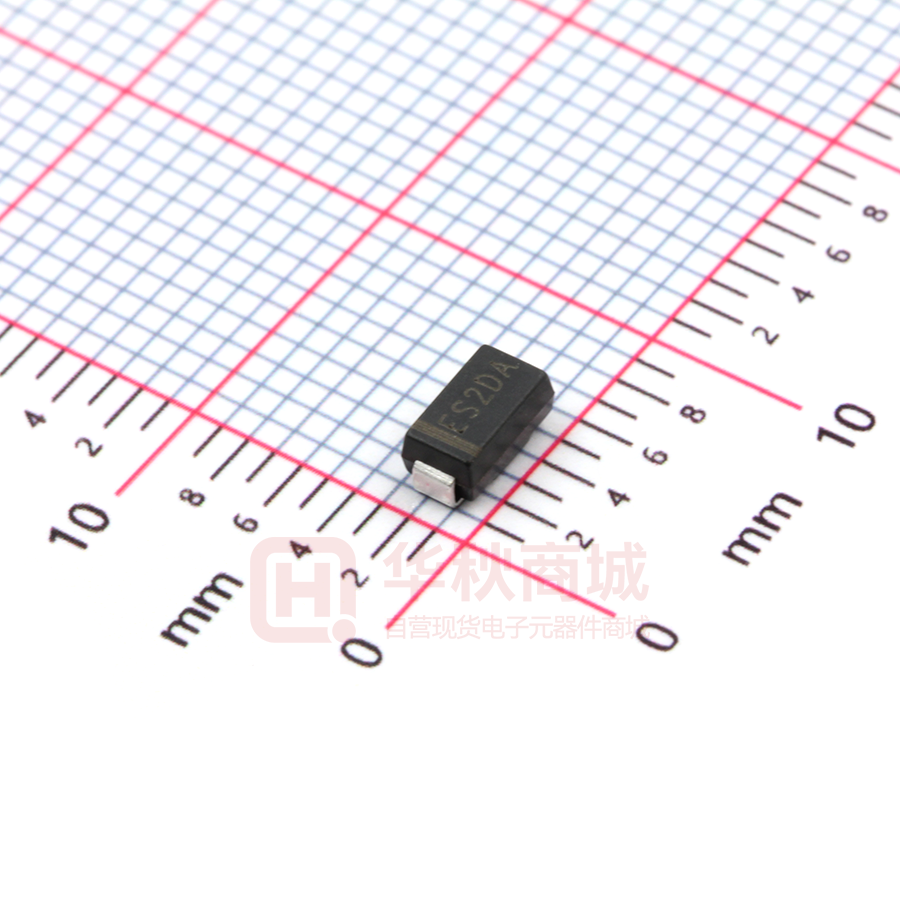

ES2DA

RoHS ES2AA THRU ES2KA  COMPLIANT   Surface Mount Super Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ●Super Fast reverse recovery time ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data ● Package: DO-214AC (SMA)　 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code ES2AA ES2BA ES2CA ES2DA ES2FA ES2GA ES2HA ES2JA ES2KA ES2AA ES2BA ES2CA ES2DA ES2FA ES2GA ES2HA ES2JA ES2KA 50 100 150 200 VRRM V IO A 2.0 IFSM A 50 Storage temperature Tstg ℃ -55~+150 Junction temperature Tj ℃ -55 ~ +150 Repetitive peak reverse voltage Average rectified output current @60Hz sine wave, Resistance load, TL (FIG.1) Surge(non-repetitive)forward current @60Hz Half-sine wave,1 cycle, Ta=25℃ 300 400 500 600 800 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT TEST ES2AA ES2BA ES2CA ES2DA ES2FA ES2GA ES2HA ES2JA ES2KA CONDITIONS Maximum instantaneous forward voltage drop per diode VF V IFM=2.0A Maximum reverse recovery time TRR ns IF=0.5A,IR=1.0A, Irr=0.25A 35 Maximum DC reverse current at rated DC blocking voltage per diode@ VRM=VRRM Ta=25℃ 5 IRRM μA Ta=125℃ 100 0.95 1.3 1.7 1.85 1/5 S-S023 Rev. 2.5, 22-Oct-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2AA THRU ES2KA    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER ES2AA ES2BA ES2CA ES2DA ES2FA SYMBOL UNIT RθJ-A ℃/W 65 1) RθJ-L ℃/W 20 1) ES2GA ES2HA ES2JA ES2KA Thermal Resistance Note (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas ■ Characteristics (Typical) FIG2：Surge Forward Current Capability FIG.1: Io-TL Curve     3.5 50                       2.5 2.0 1.5 1.0 40 8.3ms Single Half Sine Wave 30 20 10 0.5 0 0 50 70 90 110 130 150 1 10 FIG4:Typical Reverse Characteristics FIG3: Forward Voltage 6 100 ES2AA~ES2DA 2 Instantaneous Reverse Current(uA) Instantaneous Forward Current(A)         1 0.5 ES2FA~ES2GA ES2HA-ES2JA ES2KA 0.1 0.05 0.02 0.01 100 Number of Cycles Lead Temperature(℃) 4   Peak Forward Surge Current(A) Average Rectified Output Current(A) 3.0 0.4 0.8 1.2 1.6 2.0 Instantaneous Forward Voltage(V) 2.4 Ta=125 ℃ 10 1.0 0.1 0.01 Ta=25 ℃ 0 20 40 60 80 Percent of Rated Peak Reverse Voltage(%) 100 2/5 S-S023 Rev. 2.5, 22-Oct-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2AA THRU ES2KA    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 50 Ω NONINDUCTIVE 10 Ω NONINDUCTIVE trr +0.5A (-) DUT (+) 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) -1.0A NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω 1cm SET TIME BASE FOR 5/10ns/cm ■Ordering Information (Example) PREFERED P/N PACKAGE CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE ES2AA- ES2KA F1 Approximate 0.059 5000 10000 80000 13” reel ES2AA- ES2KA F2 Approximate 0.059 7500 15000 120000 13” reel ES2AA- ES2KA F3 Approximate 0.059 7500 15000 60000 13” reel ES2AA- ES2KA F4 Approximate 0.059 1800 7200 57600 7” reel ES2AA- ES2KA F5 Approximate 0.059 2000 8000 64000 7” reel ES2AA- ES2KA F6 Approximate 0.059 5000 10000 100000 13” reel 3/5 S-S023 Rev. 2.5, 22-Oct-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2AA THRU ES2KA    ■ Outline Dimensions DO-214AC(SMA) A DO-214AC(SMA) B C D G F H Dim Min A 1.25 Max 1.58 B 2.40 2.83 C 4.25 4.75 D 1.90 2.30 E 4.93 5.28 F 0.76 1.41 G 0.08 0.20 H 0.15 0.31 E Dimensions in millimeters ■Suggested Pad Layout DO-214AC(SMA) P3 P2 Q2 Q1 Dim Millimeters P1 4.00 P2 1.50 P3 6.50 Q1  2.50 Q2  1.70 P1 Dimensions in millimeters 4/5 S-S023 Rev. 2.5, 22-Oct-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2AA THRU ES2KA    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S023 Rev. 2.5, 22-Oct-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
